Mercusys MR90X User Manual

58
Chapter 4 Congure the Router in Wireless Router Mode

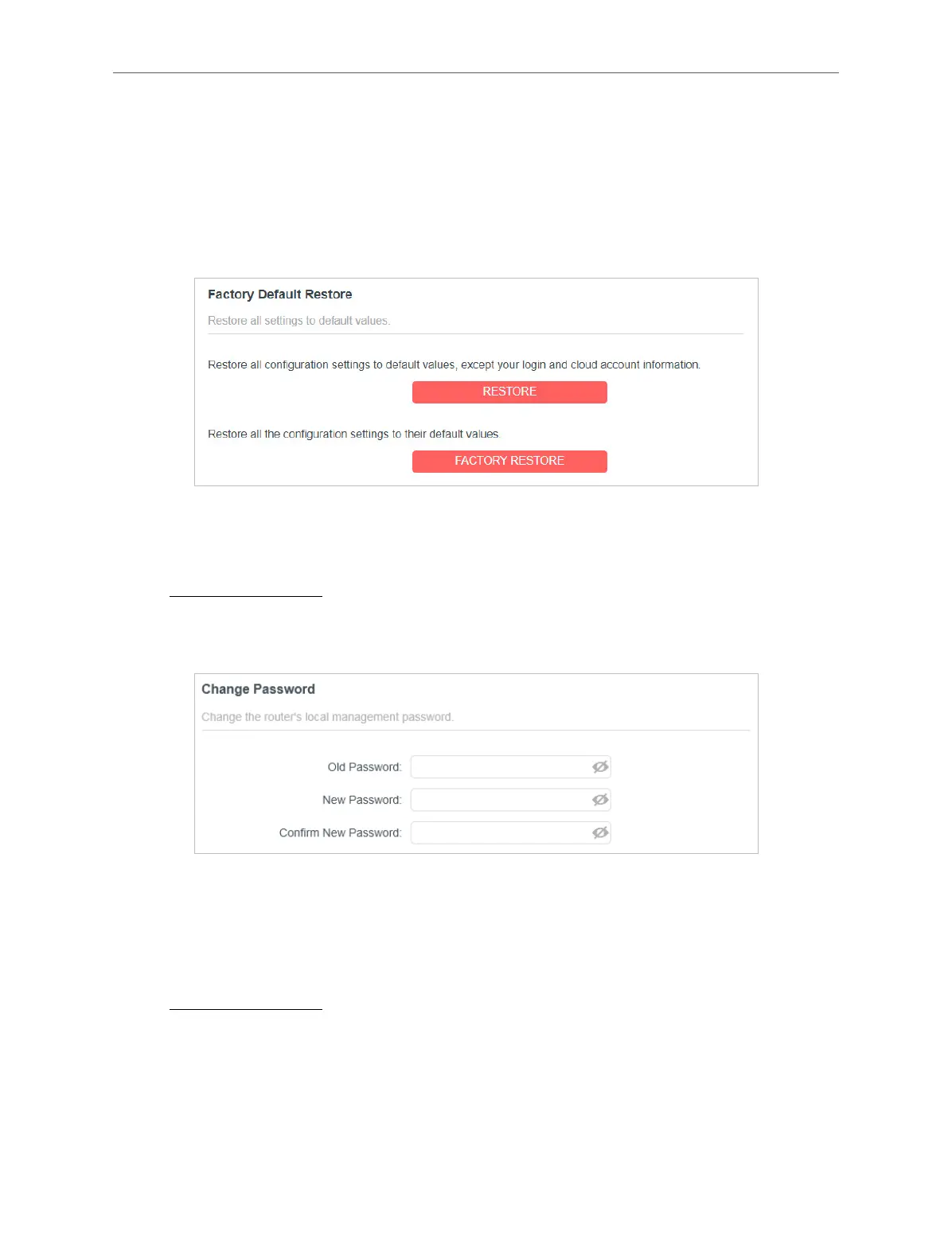

To reset the router to factory default settings:
1. Click FACTORY RESTORE to reset all settings, or click RESTORE if you want to keep your
login and cloud account information.
Note:
• We strongly recommend you back up the current configuration settings before resetting the router.
• During the resetting process, do not turn off or reset the router.
2. Wait a few minutes for the restoring and rebooting.
4. 12. 3. Change Password
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > System > Administration, and focus on the Change Password section.
3. Enter the old password, then a new password twice (both case-sensitive). Click SAVE.
4. Use the new password for future logins.
4. 12. 4. Local Management
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > System > Administration, and focus on the Local Management
section.
• Access the router via HTTPS and HTTP:

Mercusys MR90X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Firewall security	SPI Firewall
Security algorithms	WPA, WPA2, WPA3
Package type	Box
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	4
Power source type	DC
VPN server	OpenVPN, PPTP supported
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Antennas quantity	8
Antenna direction type	Omni-directional

Weight and Dimensions

Depth	172.2 mm
Width	209 mm
Height	42.4 mm
