Mercusys MR90X User Manual

67
Chapter 4 Congure the Router in Wireless Router Mode

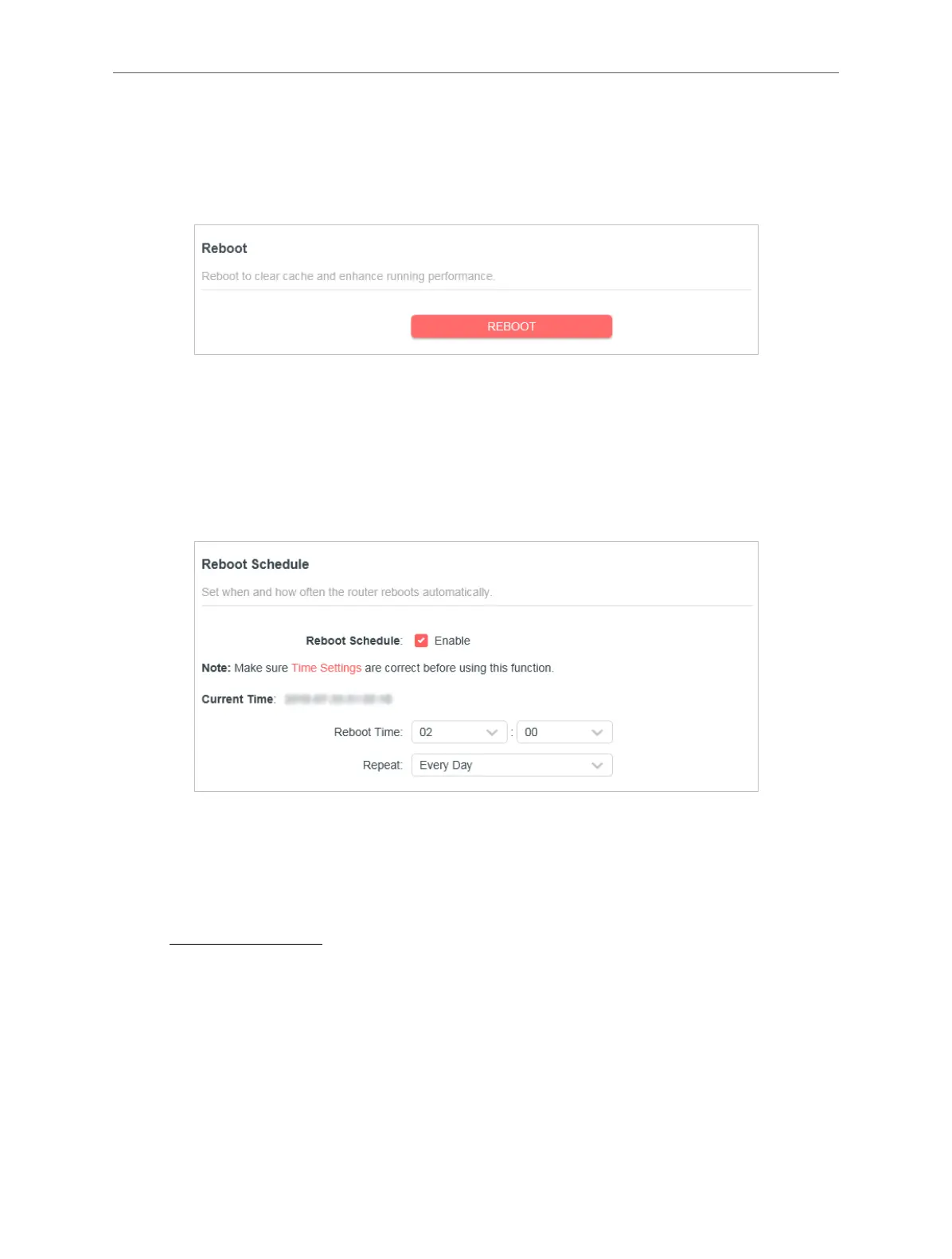

2. Go to Advanced > System > Reboot, and you can restart your router.
• To reboot the router manually:
Click REBOOT, and wait a few minutes for the router to reboot.
• To set the router to reboot regularly:
1. Tick the Enable box of Reboot Schedule.
2. Specify the Reboot Time when the router reboots and Repeat to decide how often it
reboots.
3. Click SAVE.
4. 12. 11. LED Control
The LED of the router indicates its activities and status. You can enable the Night Mode
feature to specify a time period during which the LED is off.
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > System > LED Control.
3. Enable Night Mode.

Mercusys MR90X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Firewall security	SPI Firewall
Security algorithms	WPA, WPA2, WPA3
Package type	Box
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	4
Power source type	DC
VPN server	OpenVPN, PPTP supported
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Antennas quantity	8
Antenna direction type	Omni-directional

Weight and Dimensions

Depth	172.2 mm
Width	209 mm
Height	42.4 mm
