MW300D
300Mbps Wireless N ADSL2+ Modem Router
- 17 -

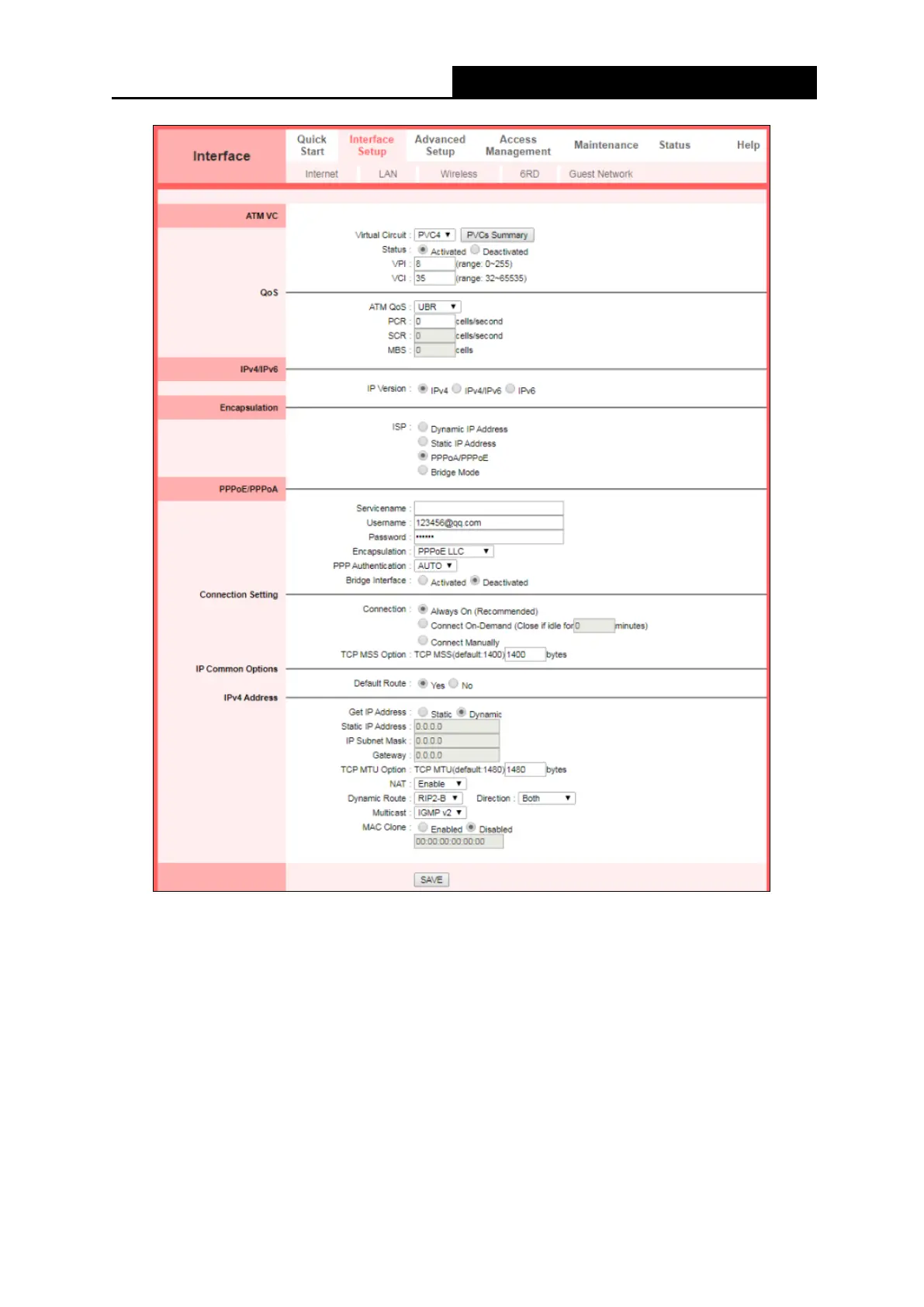

ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path
Identifier) and VCI (Virtual Channel Identifier) settings to you. In this device, you can totally set
up 8 VCs on different encapsulations. If you apply 8 different virtual circuits from your ISP, you
need to activate the VC to take effect. For PVCs management, you can use ATM QoS to set up
each PVC traffic line's priority.
Virtual Circuit: Select the VC number you want to set up, PVC0~PVC7.
PVCs Summary: Click the button, and you can view the summary information about
the PVCs.
Status: If you want to use a designed VC, you should activate it.
VPI: Identifies the virtual path between endpoints in an ATM network. The valid range
is from 0 to 255. Please input the value provided by your ISP.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW300D and is the answer not in the manual?

Mercusys MW300D Specifications

General IconGeneral
Product typeTabletop router
Product colorWhite
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
DSL WANYes
3G/4G USB modem compatibilityNo
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeEthernet
Ethernet LAN (RJ-45) ports3
Security algorithmsWPA-PSK, WPA2-PSK
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Transmit power20 dBmW
Cables includedLAN (RJ-45)
Power source typeAC
