MW300D
300Mbps Wireless N ADSL2+ Modem Router
- 44 -

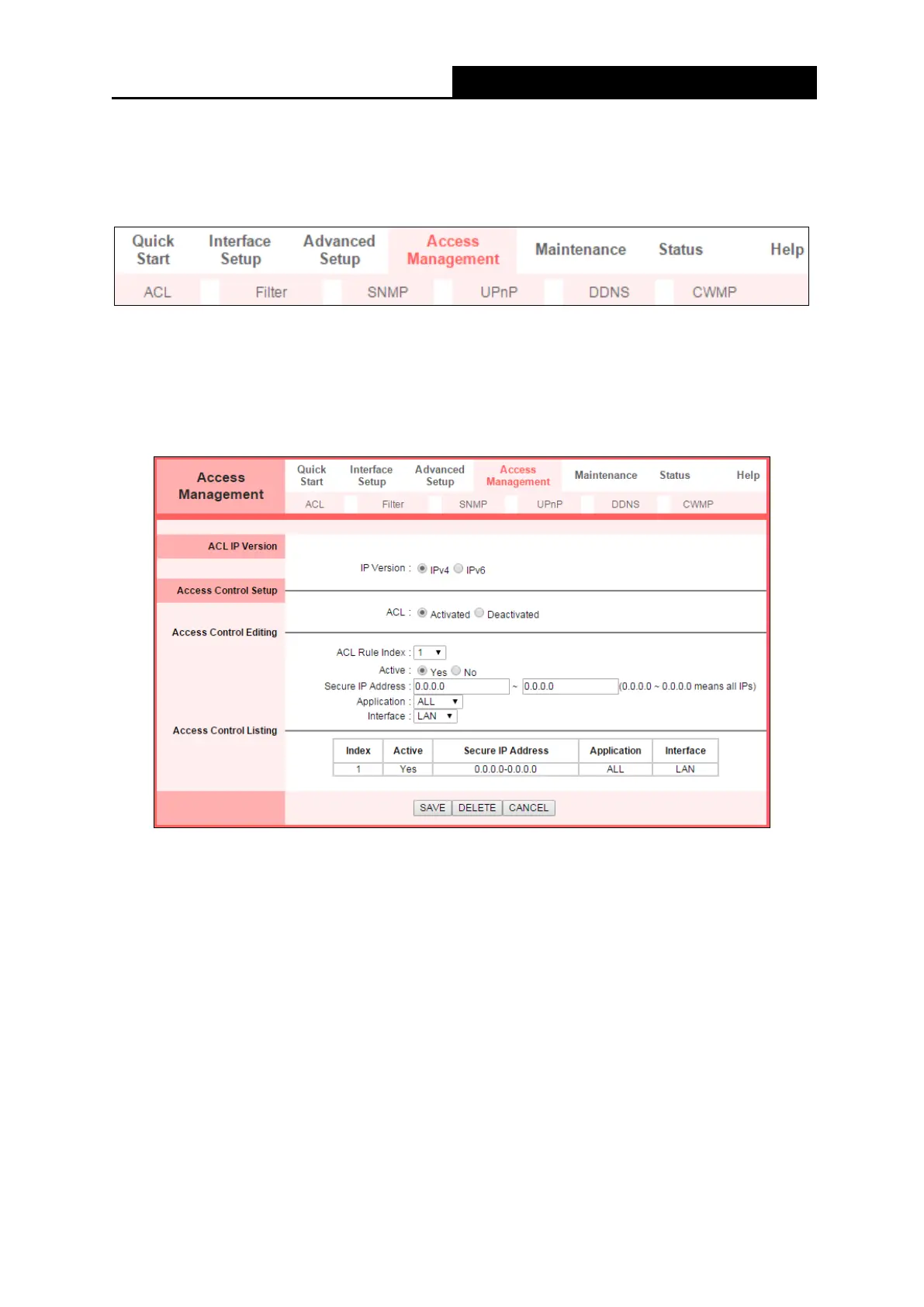

4.4 Access Management
Choose Access Management, and you will see the following submenus. Click any of them, and
you can configure the corresponding function.
4.4.1 ACL
Go to Access Management ACL, you will see the following screen. You can specify the
client to access the ADSL modem router once setting his IP as a Secure IP Address through
selected applications.
ACL: If Activated, the IP addresses which are contained in the Access Control List can
access to the modem router. If Deactivated, all IP addresses can access to the modem
router.
ACL Rule Index: Select the ACL rule index for the entry.
Active: Select Yes to enable the ACL rule.
Secure IP Address: Select the IP addresses which are permitted to access to the modem
router remotely. With the default IP 0.0.0.0, any client would be allowed to remotely access
the ADSL modem router.
Application: Select the application for the ACL rule, and then you can access the modem
router through it.
Interface: Select the interface for access: LAN, WAN or Both.
Access Control Listing: This displays the information about the ACL Rules.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW300D and is the answer not in the manual?

Mercusys MW300D Specifications

General IconGeneral
Product typeTabletop router
Product colorWhite
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
DSL WANYes
3G/4G USB modem compatibilityNo
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeEthernet
Ethernet LAN (RJ-45) ports3
Security algorithmsWPA-PSK, WPA2-PSK
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Transmit power20 dBmW
Cables includedLAN (RJ-45)
Power source typeAC
