MW300D
300Mbps Wireless N ADSL2+ Modem Router
- 21 -
Get IP Address: Select Static or Dynamic. For PPPoA/PPPoE connection, you need to
specify the public IP address for this ADSL modem router. The IP address can be
either dynamically (via DHCP) or given IP address provided by your ISP. For Static IP,
you need to specify the IP address, Subnet Mask and Gateway IP address.

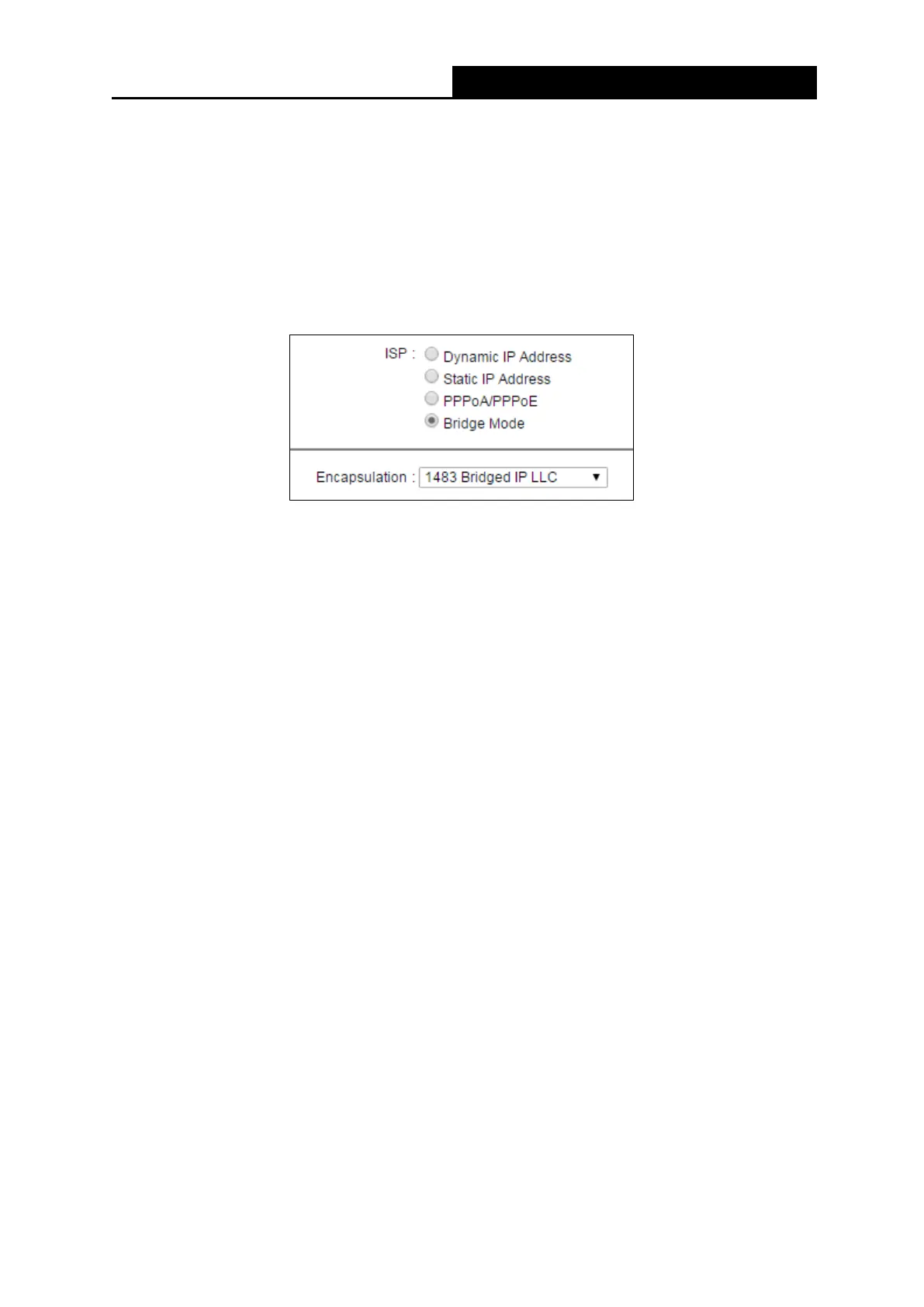

4) Bridge Mode
If you select this type of connection, the modem can be configured to act as a bridging device
between your LAN and your ISP. Bridges are devices that enable two or more networks to
communicate as if they are two segments of the same physical LAN.
Note:
After you finish the Internet configuration, please click SAVE to make the settings take effect.
4.2.2 LAN
Go to Interface Setup LAN, and you will see the LAN screen. Please configure the
parameters for LAN ports according to the descriptions below.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW300D and is the answer not in the manual?

Mercusys MW300D Specifications

General IconGeneral
Product typeTabletop router
Product colorWhite
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
DSL WANYes
3G/4G USB modem compatibilityNo
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeEthernet
Ethernet LAN (RJ-45) ports3
Security algorithmsWPA-PSK, WPA2-PSK
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Transmit power20 dBmW
Cables includedLAN (RJ-45)
Power source typeAC
