MW300D
300Mbps Wireless N ADSL2+ Modem Router
- 25 -

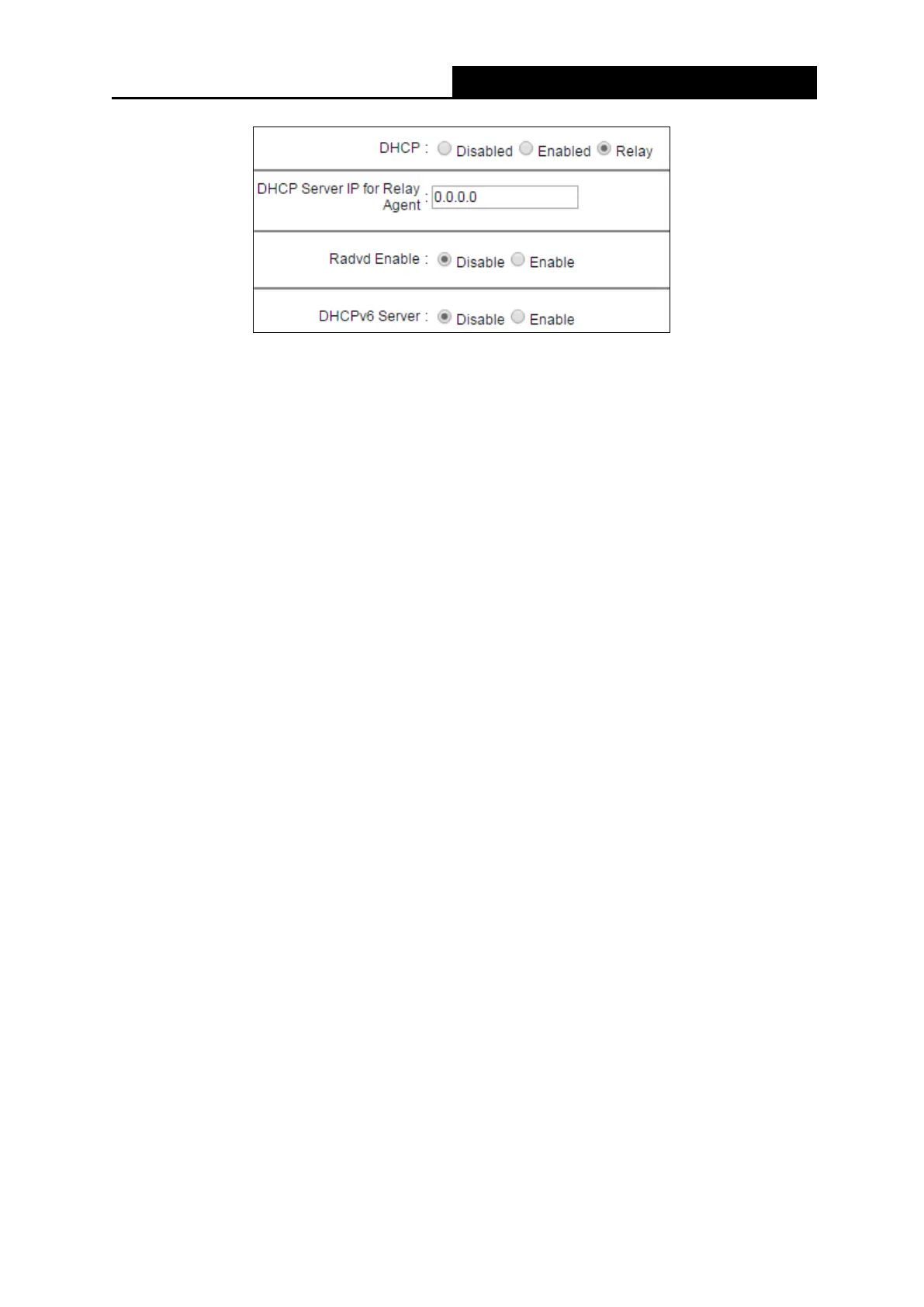

DHCP Server IP for Relay Agent: Enter the DHCP server IP Address runs on WAN
side.
Note:
If you select Disabled, the DHCP function will not take effect.
Radvd Enable: Enable or Disable the auto configuration of radvd.
DHVCPv6 Server: Enable or Disable the modem router working as a DHCPv6 Server.
4.2.3 Wireless
Go to Interface Setup Wireless, and you will see the Wireless screen. Please configure the
parameters for wireless according to the descriptions below.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW300D and is the answer not in the manual?

Mercusys MW300D Specifications

General IconGeneral
Product typeTabletop router
Product colorWhite
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
DSL WANYes
3G/4G USB modem compatibilityNo
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeEthernet
Ethernet LAN (RJ-45) ports3
Security algorithmsWPA-PSK, WPA2-PSK
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Transmit power20 dBmW
Cables includedLAN (RJ-45)
Power source typeAC
