MW300D
300Mbps Wireless N ADSL2+ Modem Router
- 43 -

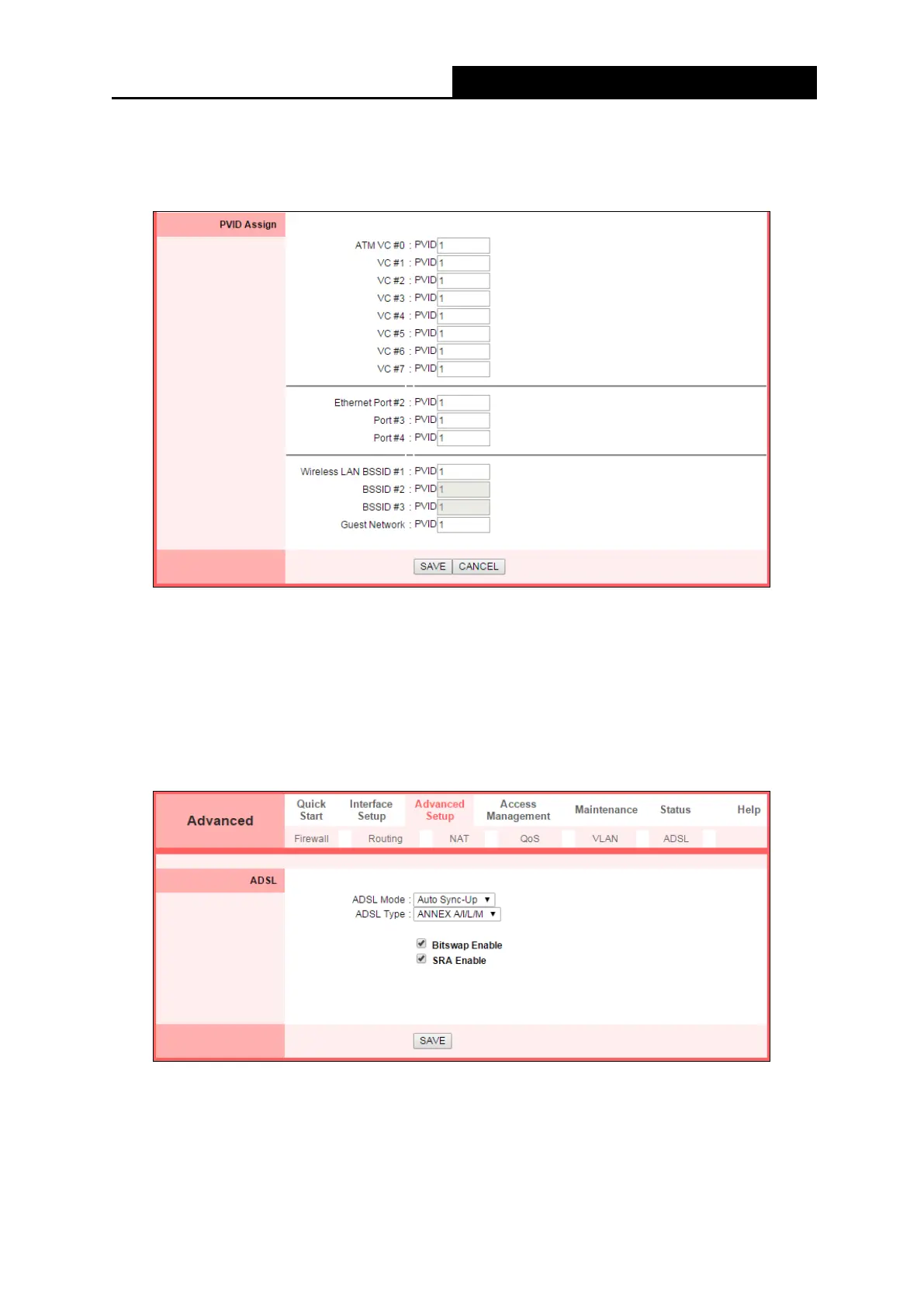

2) Assign VLAN PVID for each Interface
Click Assign VLAN PVID for each Interface, you can assign the PVID for each interface in the
following screen.
PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to
untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
4.3.6 ADSL
Go to Advanced Setup ADSL, and you can select ADSL Mode and ADSL Type in the
following screen. The ADSL feature can be selected when you meet the physical connection
problem. Please check the proper settings with your ISP.
ADSL Mode: Select the ADSL operation mode which your ADSL connection uses.
ADSL Type: Select the ADSL operation type which your ADSL connection uses.
