MW300D
300Mbps Wireless N ADSL2+ Modem Router
- 22 -

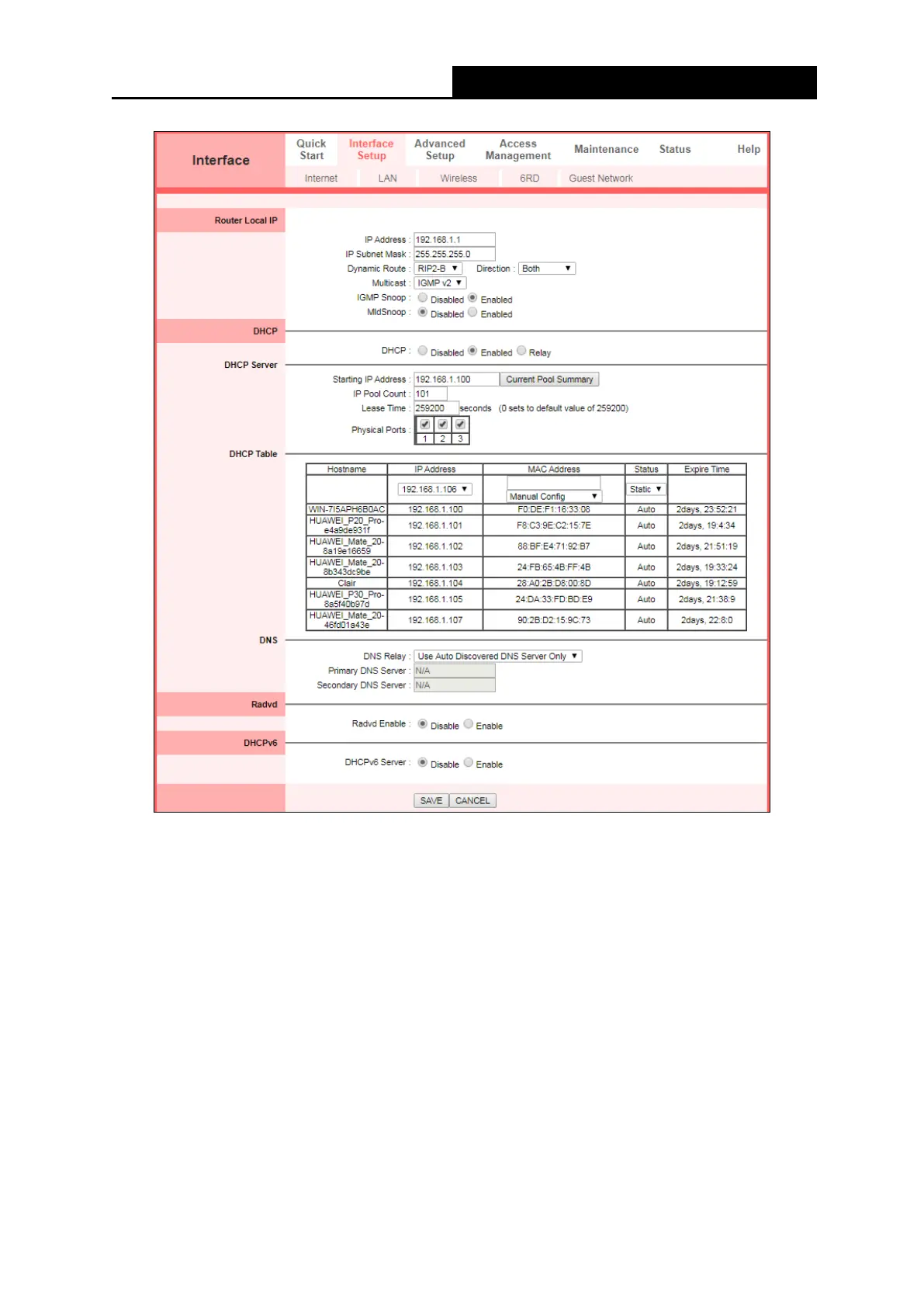

Router Local IP: These are the IP settings of the LAN interface for the device. These settings
may be referred to as Private settings. You may change the LAN IP address if needed. The LAN
IP address is private to your internal network and cannot be seen on the Internet.
IP Address: Enter the modem router’s local IP Address, then you can access to the
Web management page via the IP Address. The default value is 192.168.1.1.
IP Subnet Mask: Enter the modem router’s Subnet Mask. The default value is
255.255.255.0.
Dynamic Route: Select this option to specify the RIP (Routing Information protocol)
version for LAN interface, including RIP1, RIP2-B and RIP2-M. RIP2-B and RIP2-M are
both sent in RIP2 format, the difference is that RIP2-M using Multicast, while RIP2-B
using Broadcast format.
Direction: Select this option to specify the RIP direction. None is for disabling the RIP
function. Both means the ADSL modem router will periodically send routing
information and accept routing information, and then incorporate them into routing
table. IN only means the ADSL modem router will only accept but will not send RIP
