MW301R
300Mbps Wireless N Router User Guide
Username/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.
IP Address/DNS Server - Displays the current IP address/DNS server of your device.
Click Save to make your settings effective.

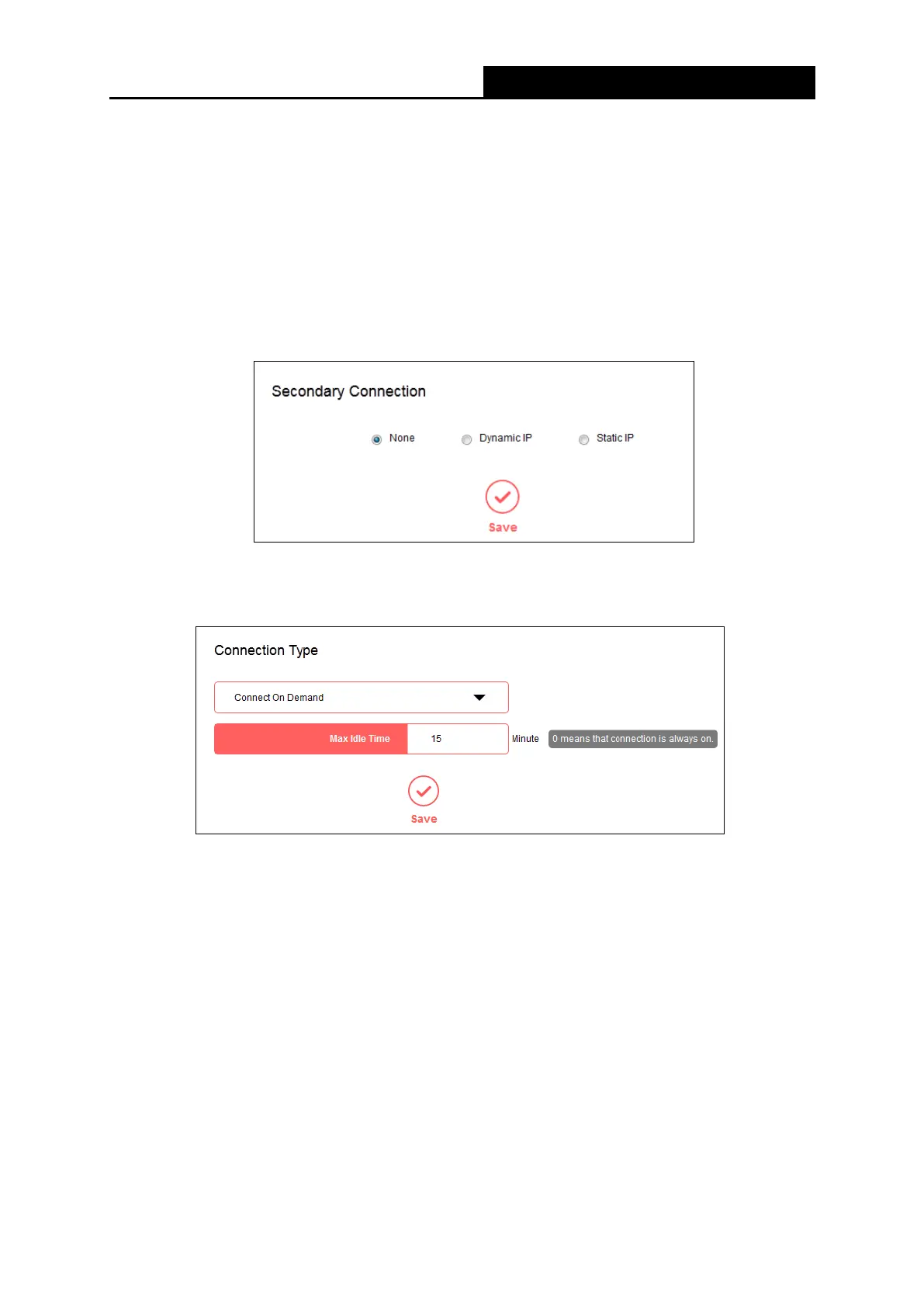

Secondary Connection
If you have a secondary connection, select and enter the corresponding parameters.
Connection Type
Connect on Demand - In this mode, the internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-established when
you attempt to access the Internet again. If you want your internet connection keeps
active all the time, please enter 0 in the Max Idle Time field.
Otherwise, enter the number of
minutes you want to have elapsed before your Internet access disconnects.
Connect Automatically - The connection can be re-established automatically when it is
down.
Connect Manually - This mode also supports the Max Idle Time function as Connect on
Demand mode. The Internet connection can be disconnected automatically after a
specified inactivity period.
Click Save to make the settings effective.
- 14 -
