MW301R
300Mbps Wireless N Router User Guide

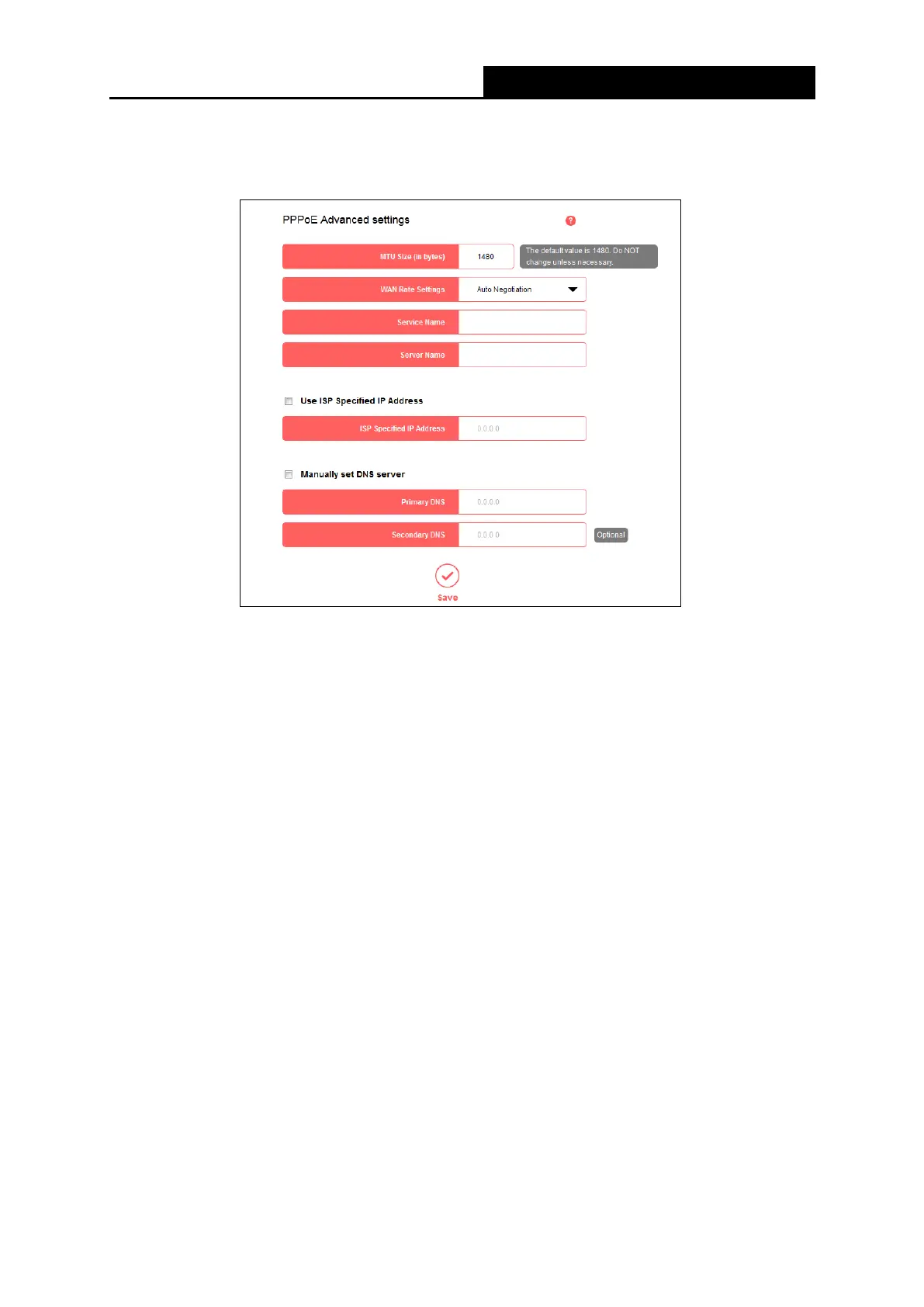

PPPoE Advanced settings
MTU Size (in bytes) - The default MTU size is 1480 bytes. It is NOT recommended that you
change the default MTU Size unless required by your ISP.
WAN Rate Settings - Select the rate and duplex mode for the WAN port. It is
recommended to keep the default auto mode.
Service Name/Server Name - The service name and server name should not be
configured unless it is necessary for your ISP.
In most cases, leaving these fields blank will
work.
Use ISP Specified IP Address - If your ISP does not automatically assign IP addresses to
the router during login, select this option and enter the IP address provided by your ISP in
dotted-decimal notation.
Manually set DNS server - If your ISP gives you one or two DNS addresses, select this
option and enter the primary and secondary addresses into the corresponding fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Click Save to make the settings effective.
- 15 -

Other manuals for Mercusys MW301R

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW301R and is the answer not in the manual?

Mercusys MW301R Specifications

General IconGeneral
DSL WANNo
Ethernet WANYes
WAN connection typeRJ-45
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
WLAN data transfer rate (first band)11 Mbit/s
WLAN data transfer rate (second band)54 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Ethernet LAN (RJ-45) ports2
Supported network protocolsIPv4
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power0 dBmW
Antenna gain level (max)5 dBi
Number of products included1 pc(s)
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Output current0.6 A
Output voltage5 V
Power source typeDC
Product typeTabletop router
Product colorWhite
Weight and Dimensions IconWeight and Dimensions
Depth93.31 mm
Width135.77 mm
Height25.85 mm
