MW301R
300Mbps Wireless N Router User Guide
3. Click Add and enter a brief description for the rule.

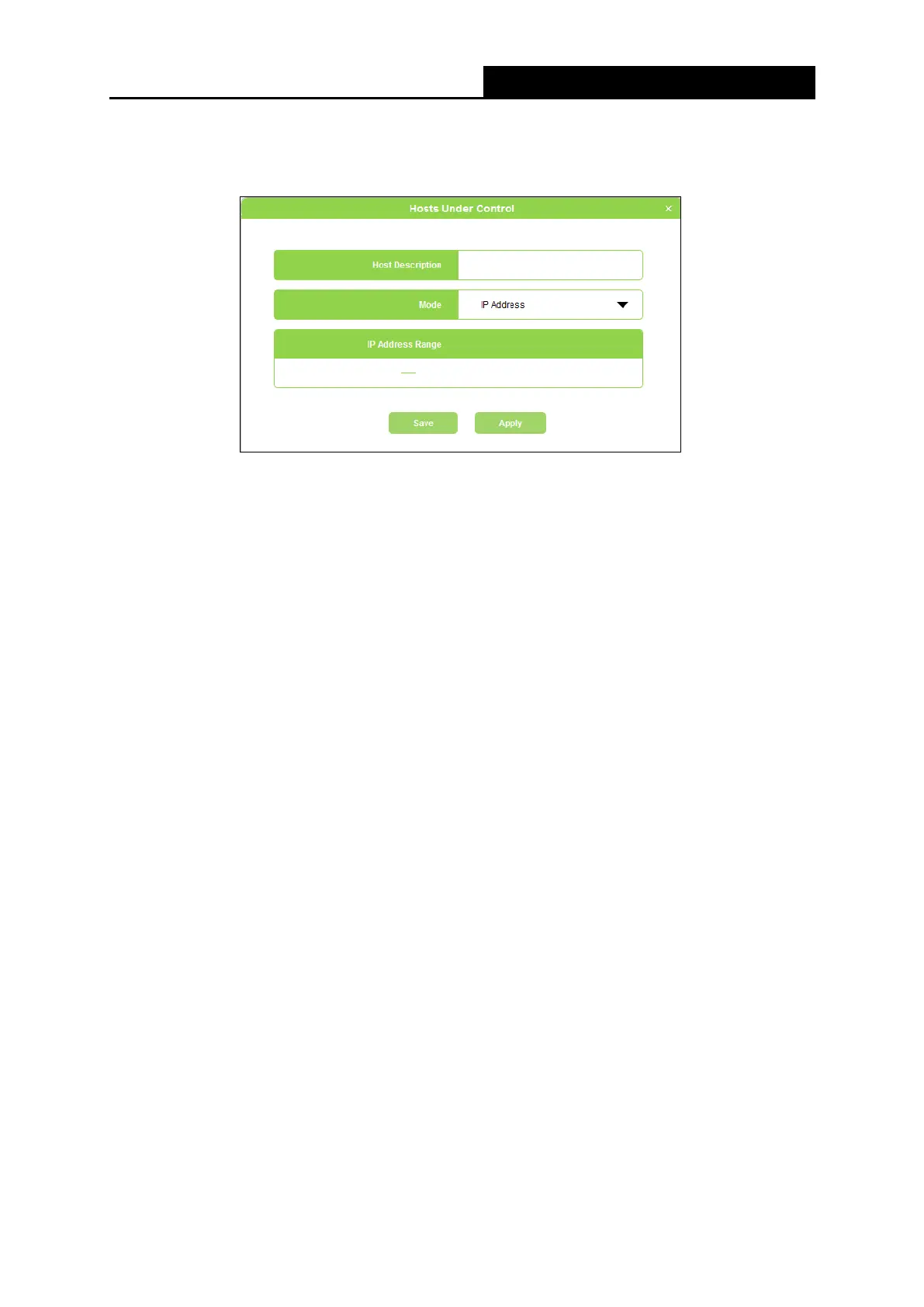

4. Click Configure in the Hosts Under Control column to add a host, then click Apply.
Host Description - In this field, create a unique description for the host.
Mode - Here are two options, IP Address and MAC Address. You can select either of
them from the drop-down list.
If the IP Address is selected, you can see the following item:
IP Address Range - Enter the IP address or address range of the host in
dotted-decimal format (e.g. 192.168.1.23).
If the MAC Address is selected, you can see the following item:
MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.
00-11-22-33-44-AA).
- 35 -

Other manuals for Mercusys MW301R

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW301R and is the answer not in the manual?

Mercusys MW301R Specifications

General IconGeneral
DSL WANNo
Ethernet WANYes
WAN connection typeRJ-45
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
WLAN data transfer rate (first band)11 Mbit/s
WLAN data transfer rate (second band)54 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Ethernet LAN (RJ-45) ports2
Supported network protocolsIPv4
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power0 dBmW
Antenna gain level (max)5 dBi
Number of products included1 pc(s)
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Output current0.6 A
Output voltage5 V
Power source typeDC
Product typeTabletop router
Product colorWhite
Weight and Dimensions IconWeight and Dimensions
Depth93.31 mm
Width135.77 mm
Height25.85 mm
