15. Align the ring gear and plain case half match marks and
fastener holes. Rotate the ring gear as necessary. Allow the
assembly to cool. Figure 5.18.

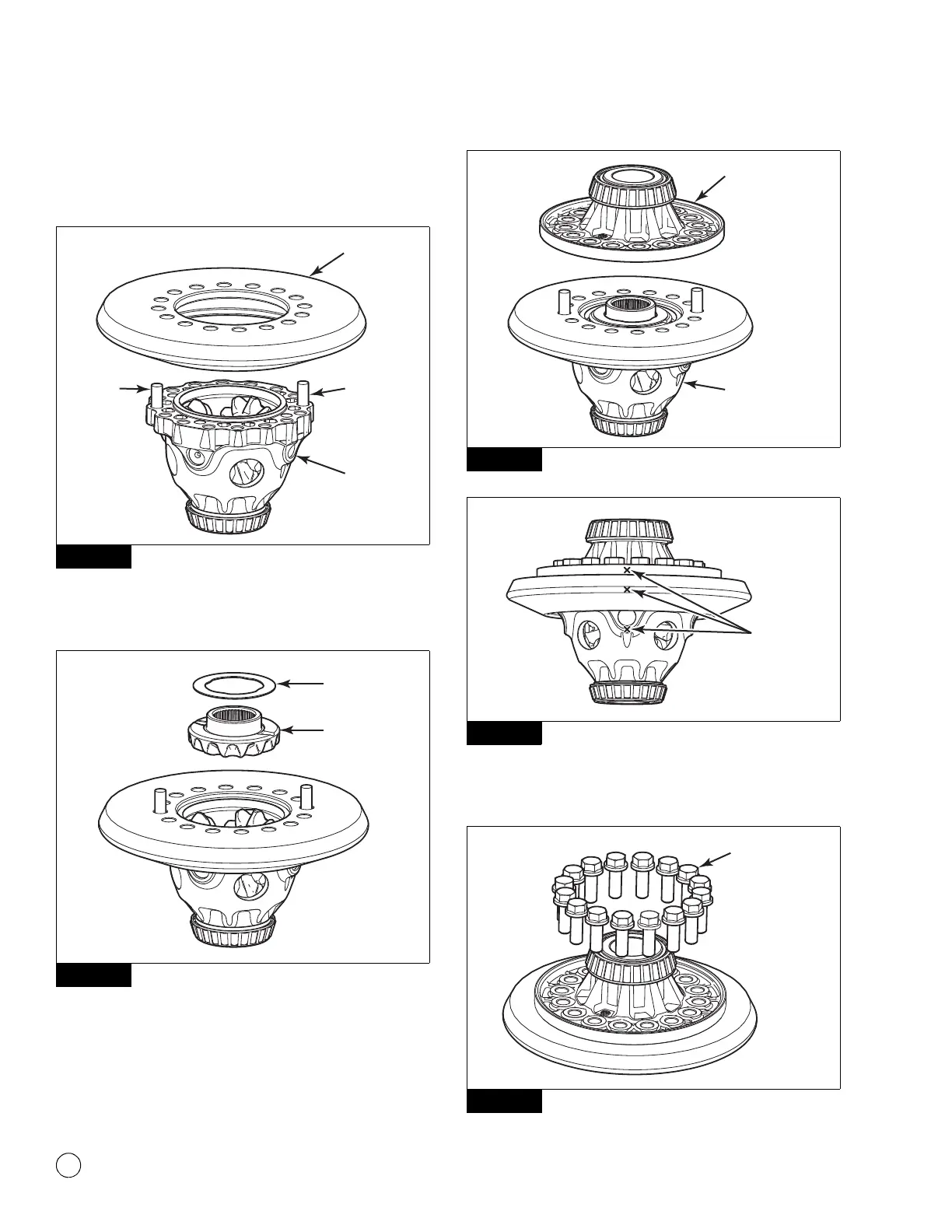

Figure 5.18
16. Install the side gear and thrust washer in the plain half case.
Figure 5.19.
Figure 5.19
17. Install the flange half on top of the ring gear and plain half
case. Align the match marks and fastener holes. Figure 5.20
and Figure 5.21.
Figure 5.20
Figure 5.21
18. Install the fasteners through the flange half, ring gear and plain
case half. Figure 5.22.
Figure 5.22
