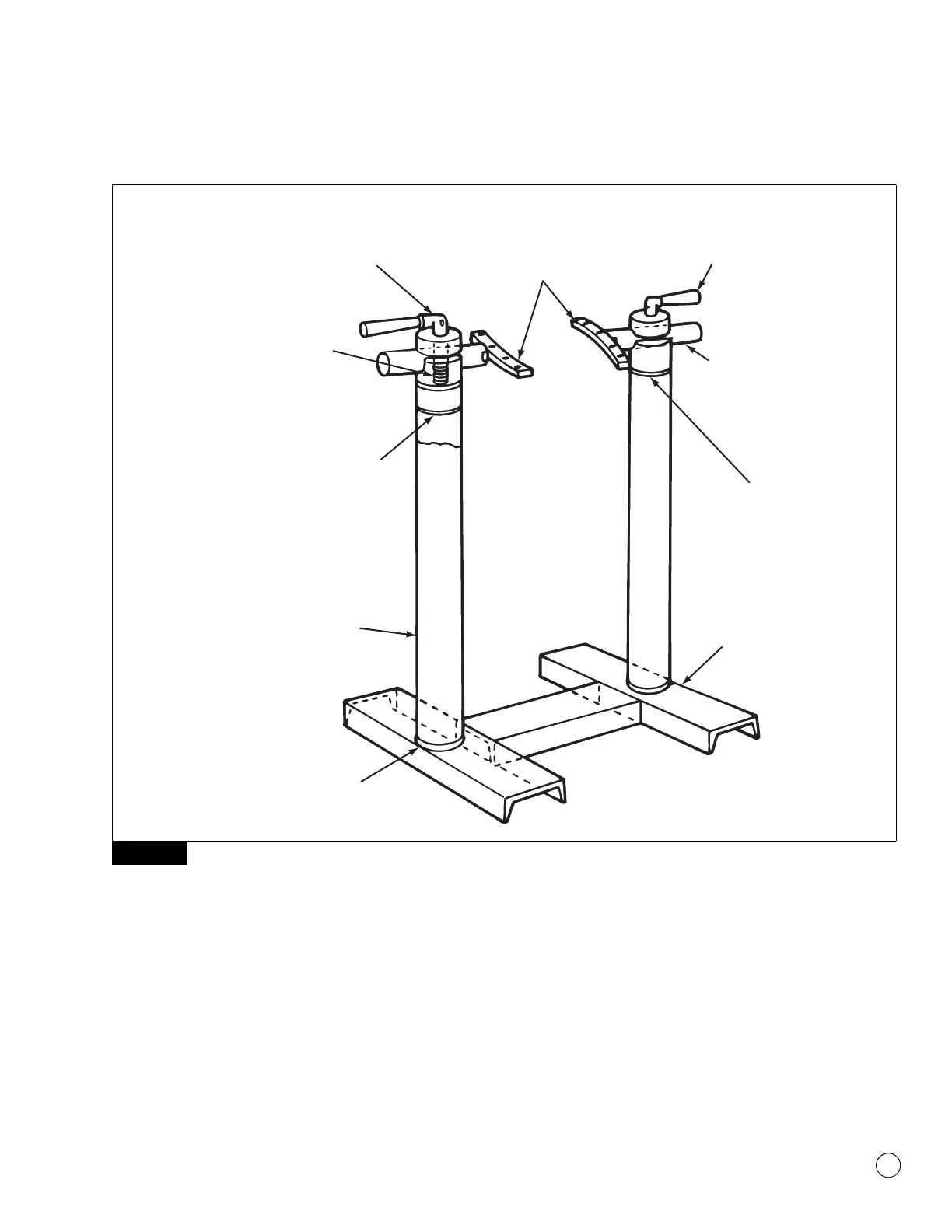

Carrier Repair Stand Specifications
Figure 9.3
Refer to the Service Notes page on the front inside cover of this
manual to obtain this repair stand.
Figure 9.3
1002990a
HANDLE 7" LONG
WITH SLOT IN
ONE END TO FIT
CLAMP SCREW
PLATES 8" LONG x 3/4"
THICK x 1-1/4" WIDE WITH
A TONGUE TO FIT SLOT IN
BAR WELD PLATES TO BAR
WELD ALL AROUND
AFTER PRESSING
PLUG IN PIPE
BAR 2" DIAMETER x 9"
LONG WITH ONE END
SLOTTED TO FIT PLATE
SHAPE AND SIZE
OF HOLES TO FIT
CARRIER
WELD
CHAMFER END
OF PIPE FOR
WELDING
23-1/2" CENTER
TO CENTER OF PIPE
PLUG 4" DIAMETER x 7" LONG
WITH ONE END TURNED 3" LONG
TO FIT PIPE. DRILL 2" HOLE AND
MILL 3/16" WIDE SLOT 2" FROM TOP
4" DIAMETER
PIPE
DRILL 3/8" HOLE
THROUGH HANDLE
AND SCREW
SCREW 3-1/2" LONG
x 5/8" DIAMETER WITH
FLATS ON END TO FIT
HANDLE AND 2-1/2" LENGTH
OF THREAD ON OTHER END
