LCD User Interface
The LCD User Interface assembly is one of many User Interface options for the Genetix

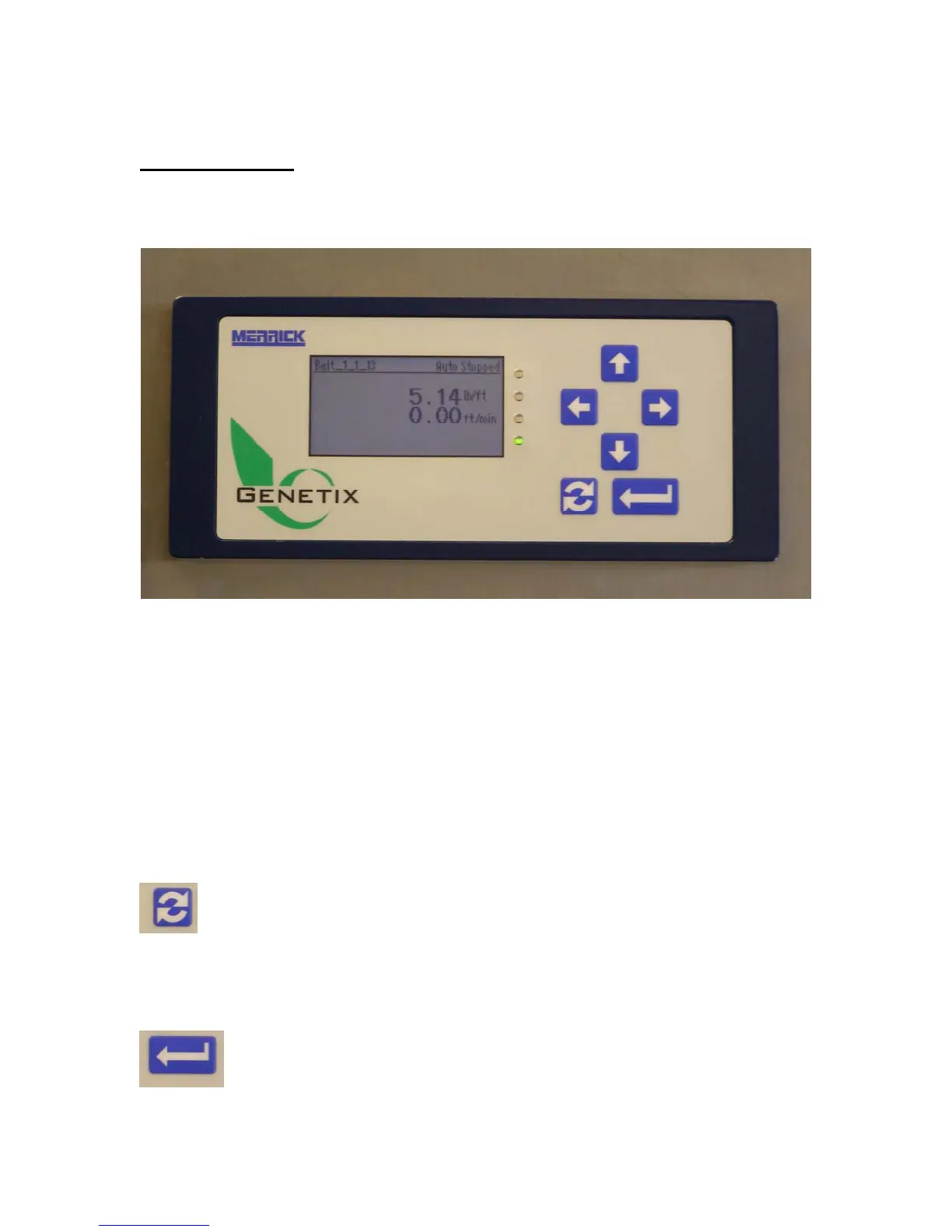

controller. It consists of a small, backlit LCD display and a membrane keypad as shown
in the photo below.
There are two lines of process information shown on the screen, and these may be
configured by the user. The text in the upper right corner shows the current feeder
control mode (if enabled). The text in the upper left is the “friendly” name of the feeder,
which may be set by the user.
The user interacts with the controller through a multi-level menu system that is designed
such that parameters are easy to find and change. The most commonly accessed
features are found at the top of menus, and only those menus that are relevant to the
specific feeder application are visible.
Navigation through the menu system is managed by the 6 tactile feedback keys to the
right of the screen. To enter the menu system, the user presses the “Menu/Esc” key,
To select an item from a displayed menu, the user navigates up or down the list with the
Up/Down arrow keys until the item desired is highlighted. Once highlighted, the item is
selected by pressing the “Enter” key,
