MM-IM User Guide
43

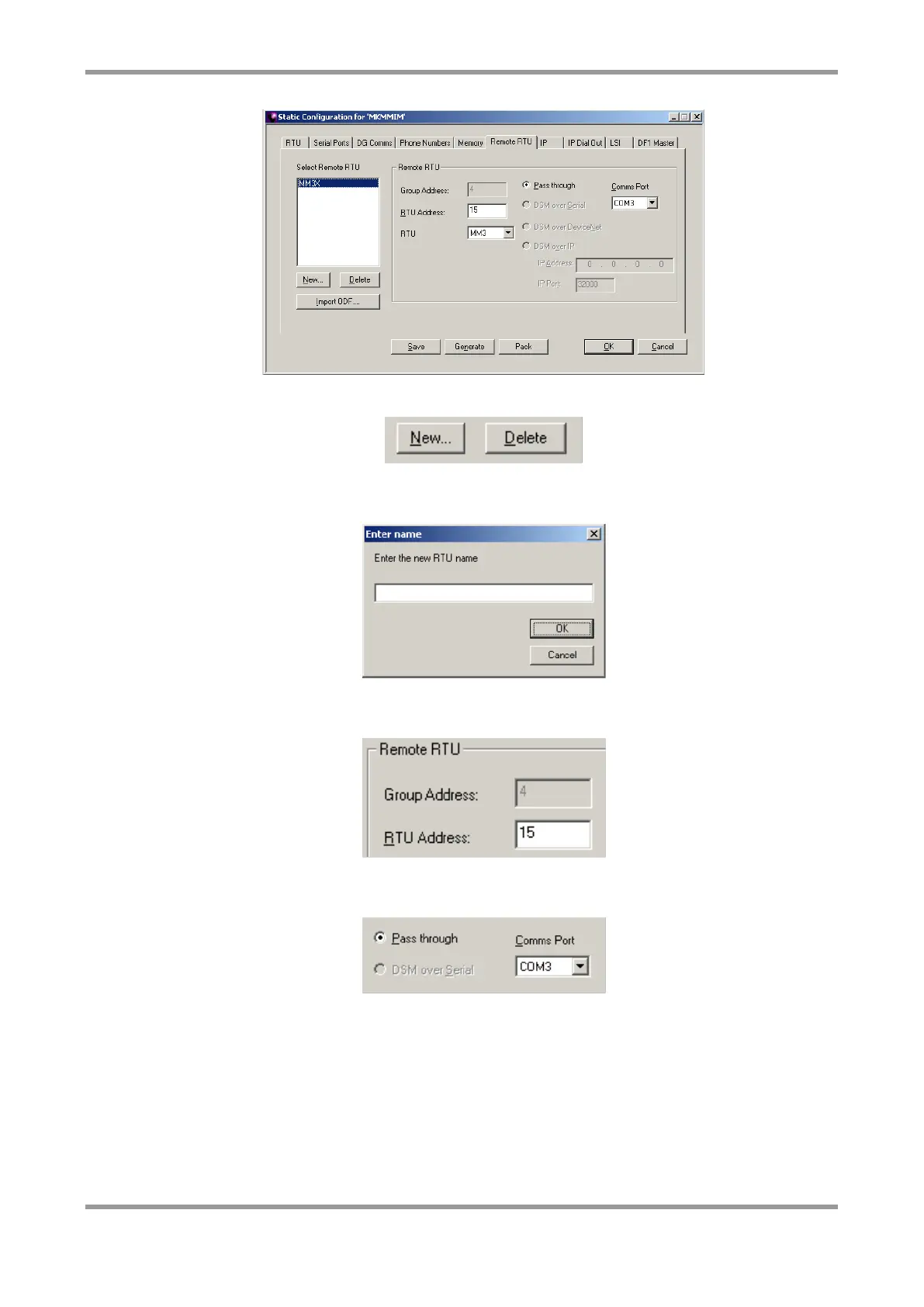

Click “New” to add a remote RTU.
You will be prompted to enter a name for the new RTU. This is only a label and does not
affect communication to the RTU.
Enter the address of the remote RTU. The group address is not editable as the remote
RTU must have the same group address as the MM-IM.
Select the serial port over which this RTU will be polled. The port must have been set up
as “Fixed” in the “serial ports” screen.
Note: The “RTU” field is obsolete so it does not matter what is selected
(MM3/MM4A/MM4M etc).
IP Address
If you wish to use IP communications between the MM-IM and Master Control, use this
screen to configure the IP address.
