MM-IM User Guide
63
Connections, switches and indicators
MM-IM
The MM-IM has four serial ports provided by RJ45 sockets. It also has two RJ45 Ethernet
ports and four USB ports.

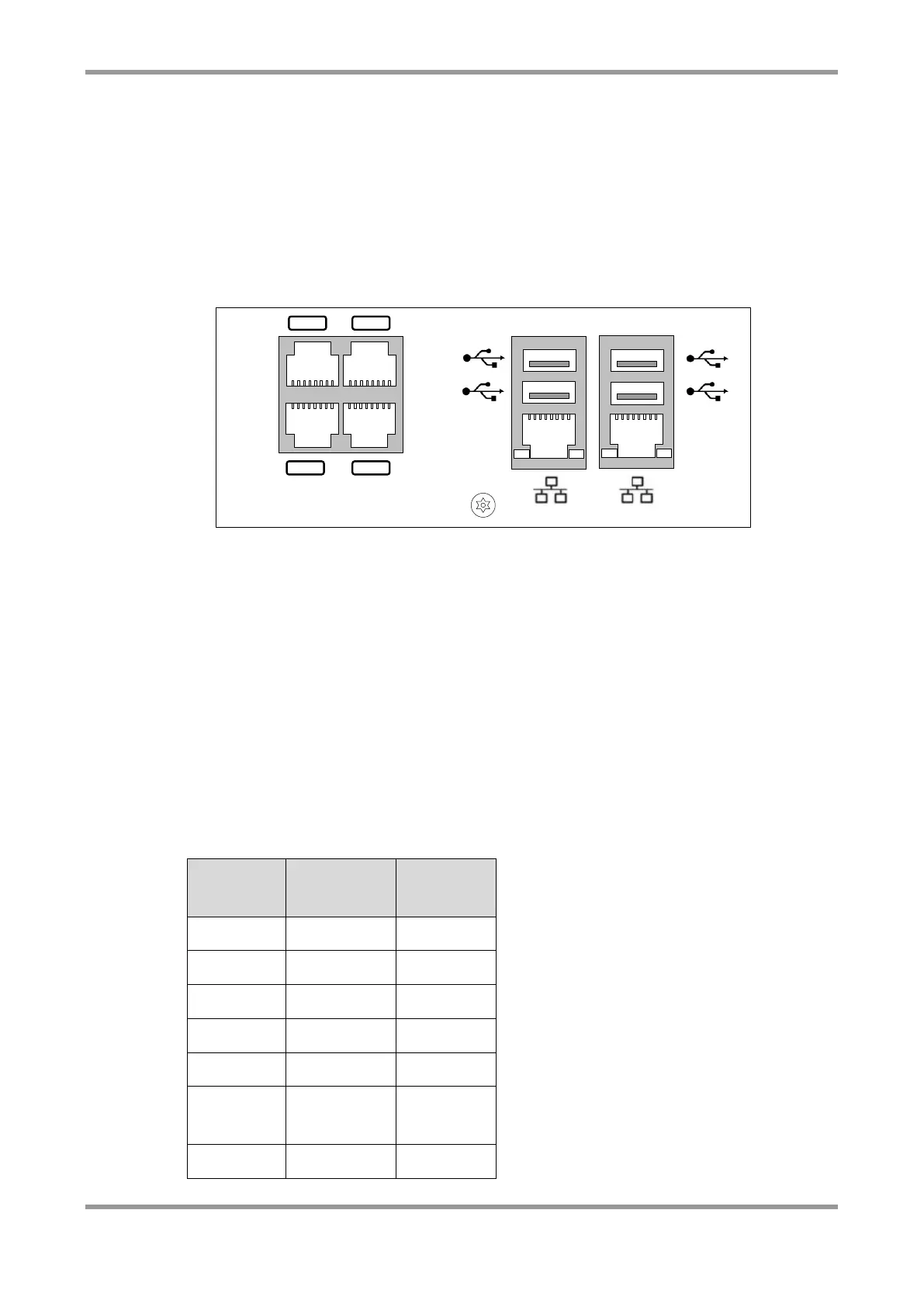

Side View 1
8 1 8 1
81 81
IOIOI 1 IOIOI 3
IOIOI 2 IOIOI 4
1 2
1
2
3
4
USB Serial Adapters
The MM-IM includes support for additional serial ports using USB to serial adapters. The
FTDI Chipi-X cable has undergone testing, although others may work. Up to 4 additional
ports are supported and they can be configured by switching to the 8 COM port mode
within Straton Workbench or MicroMC.
To ensure that multiple USB serial adapters are enumerated in the correct order, they are
to be added in the order as shown in the side view above.
Any USB serial port can be used for any purpose, including modem communication. All
USB serial converters should be connected before the MM-IM is reset following a download
of the new configuration PAK file.
RS232 port connections
