Page 25

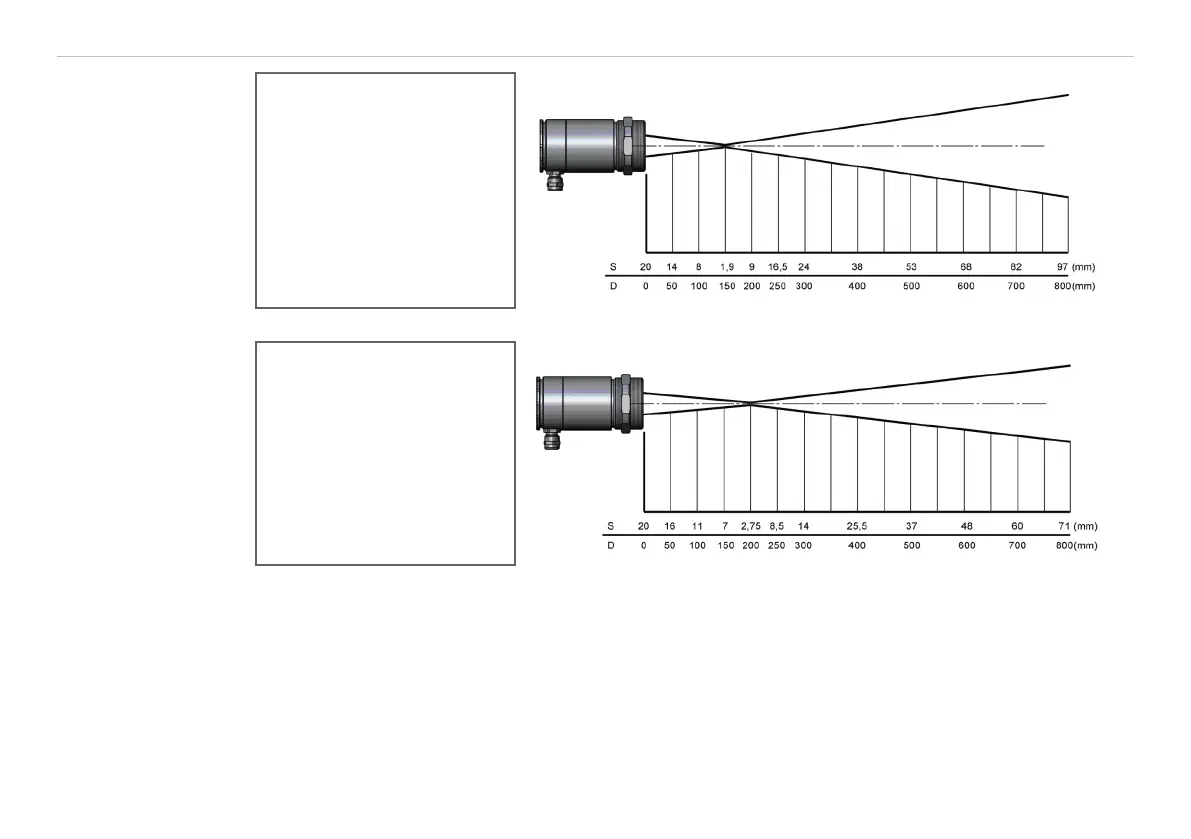

Optical Charts

thermoMETER CTL

CTL

Optics: CF2

D:S (Focus distance) = 75:1

1.9 mm @ 150 mm

D:S (Far field) = 7:1

CTL

Optics: CF3

D:S (Focus distance) = 75:1

2.75 mm @ 200 mm

D:S (Far field) = 9:1
