MICRO-EPSILON thermoMETER CTL Series - Mounting Bracket

Page 39
Mechanical Installation
thermoMETER CTL
6.3 Mounting Bracket
The mounting bracket is included in delivery, see 4.1.
57
(2.24)
Ø
48.5
(1.91 dia.)
50
(1.97)
49 (1.93)
60 (2.36)
4 (.16)
R3.3
R28
60°
46.27
(1.82)
87 (3.43)
13.73 (.54 dia.)
R5
90°
135°
Ø60
(2.36 dia.)
Ø6.5
(.26 dia.)

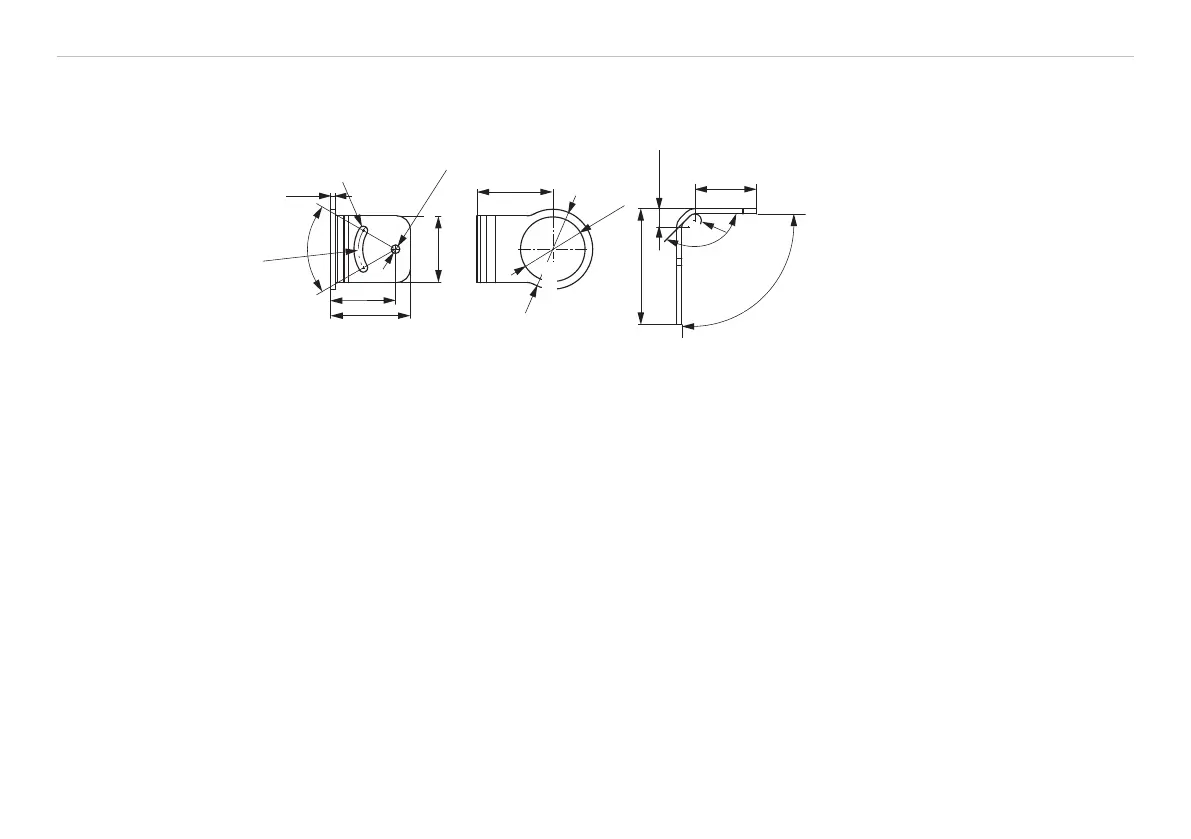

Fig. 5 Dimensions mounting bracket, fixed
Dimensions in mm, not to scale
The adjustable mounting bracket allows an adjustment of the sensor in two axis.
