Page 50
Electrical Installation
thermoMETER CTL
7.5.2 Exchange of the Sensor Cable
The sensor cable can also be exchanged if necessary.
For a dismantling on the sensor side, please open at first the cover plate on the back side of the sensor.
Then please remove the terminal block and loose the connections.
After the new cable has been installed, please do the same steps in reverse order.
i
Please take care the cable shield is properly connected to the sensor housing.
i
As exchange cable a cable type with same wire profiles and specification should be used to avoid influ-
ences on the accuracy.

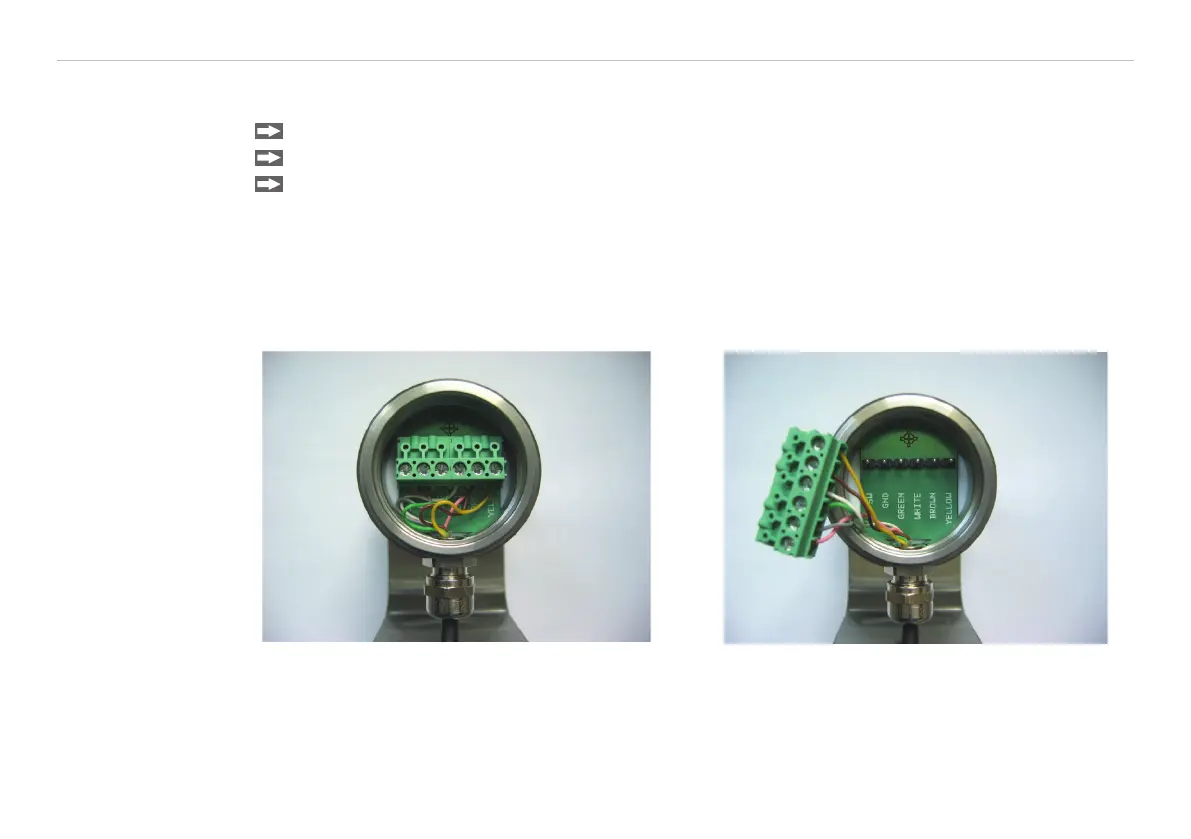

Fig. 15 View on terminal block with sensor cables
