Page 40
Electrical Installation
thermoMETER CTL
7. Electrical Installation
7.1 Cable Connections
7.1.1 Basic Version

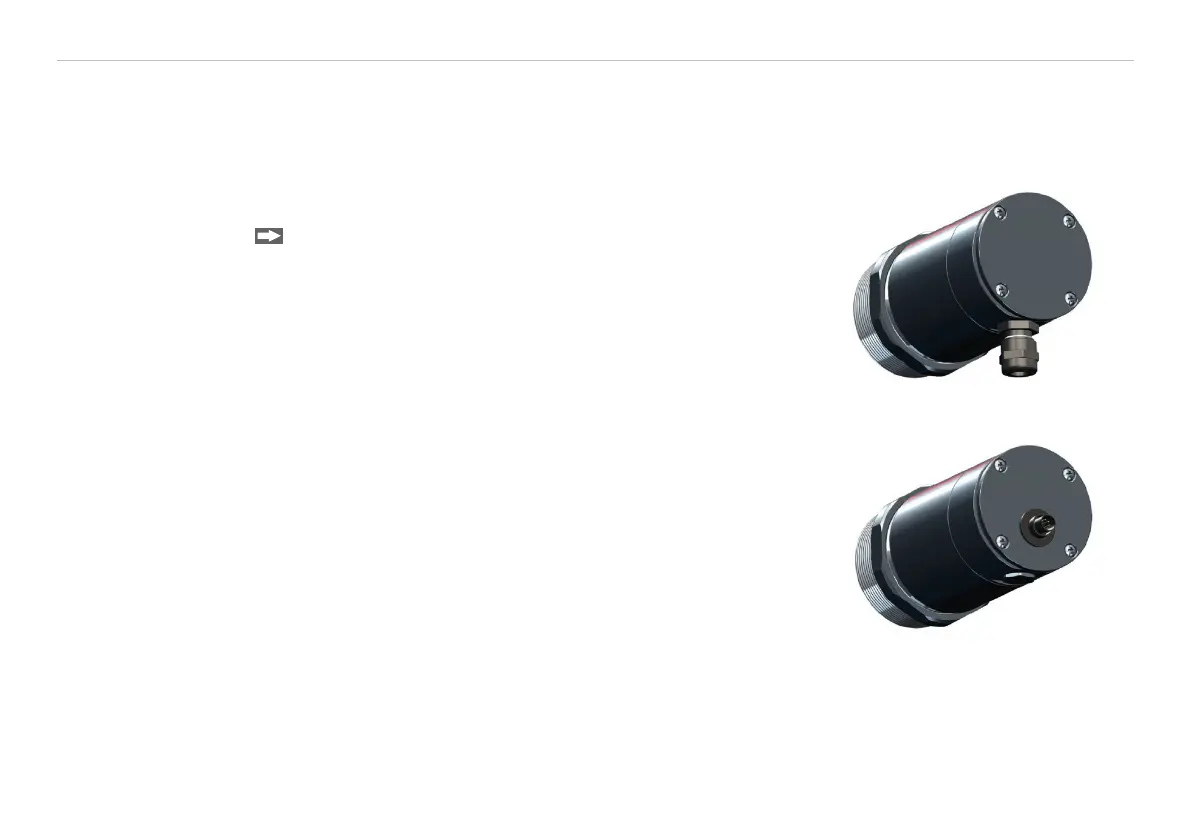

The basic version is supplied with a sensor cable (connection sensor -
controller).
For the electrical installation of the CTL please open at first the
cover of the controller (4 screws).
Below the display are the screw terminals for the cable connection.
7.1.2 Connector Version
This version has a connector plug integrated in the sensor backplane.
i
Please use the original ready-made, fitting sensor cables which are
optionally available, see A 1.
Please note the pin assignment of the connector, see Fig. 6.
i
When using a cooling jacket the connector version is needed.
