Electrical Installation
thermoMETER CTL

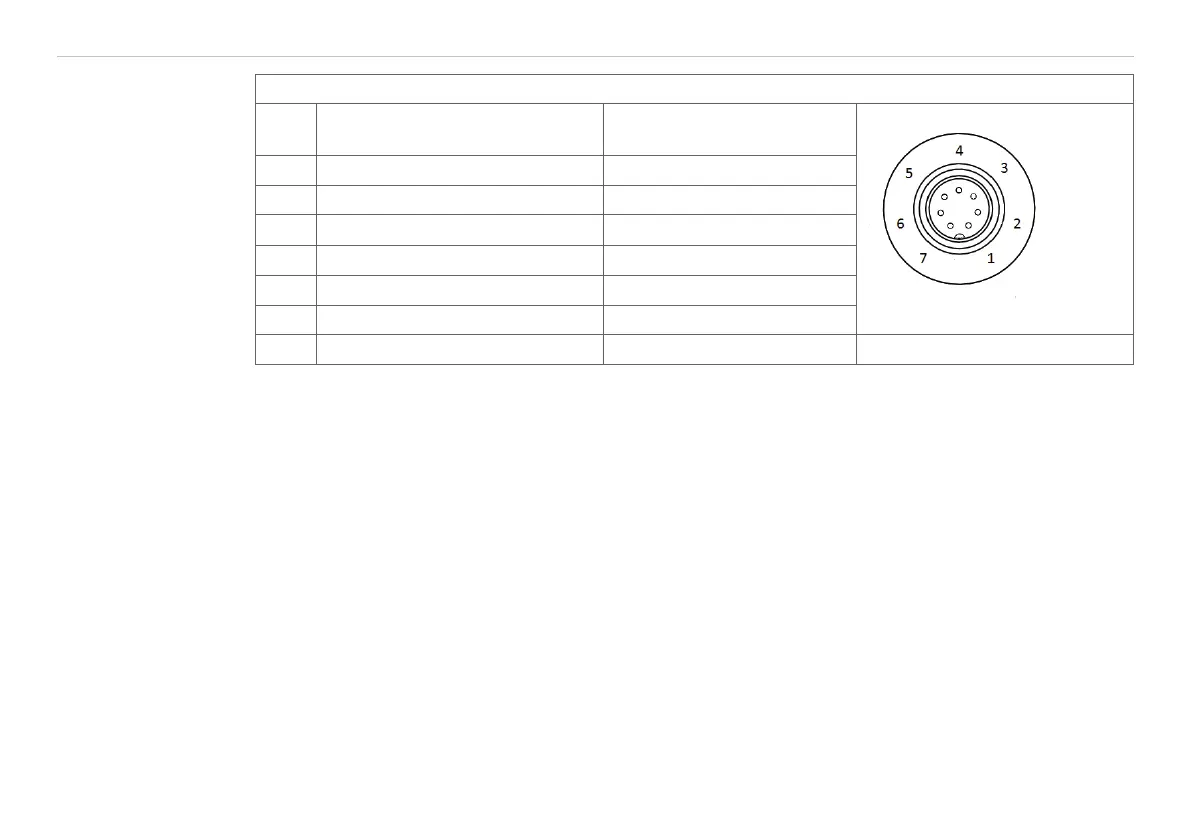

Pin assignment of connector plug (connector version only)
Pin Designation Color
(original sensor cable)
1 Detector signal (+) yellow
2 Temperature sensor brown
3 Temperature sensor white
4 Detector signal (-) green
5 Ground laser (-) grey
6 Power supply laser (+) pink
7 - not used Connector plug (outer view)
Fig. 6 Pin assignment of connector plug (connector version only)
