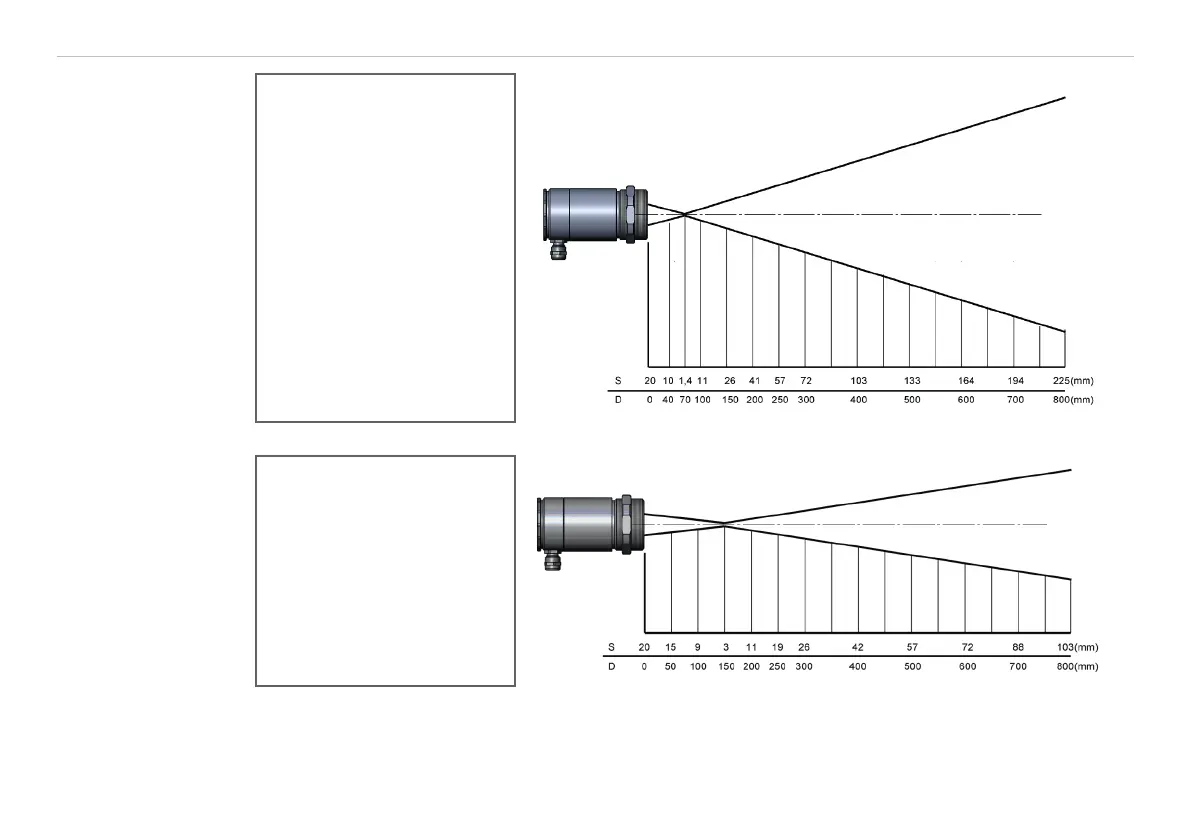

Optical Charts
thermoMETER CTL
CTLF
Optics: CF1
D:S (Focus distance) = 50:1
1.4 mm @ 70 mm
D:S (Far field) = 3.5:1
CTLF
Optics: CF2
D:S (Focus distance) = 50:1
3 mm @ 150 mm
D:S (Far field) = 6:1
