Optical Charts

thermoMETER CTL

GL / CTLC-4 / CTLC-2 /

CTLC-6

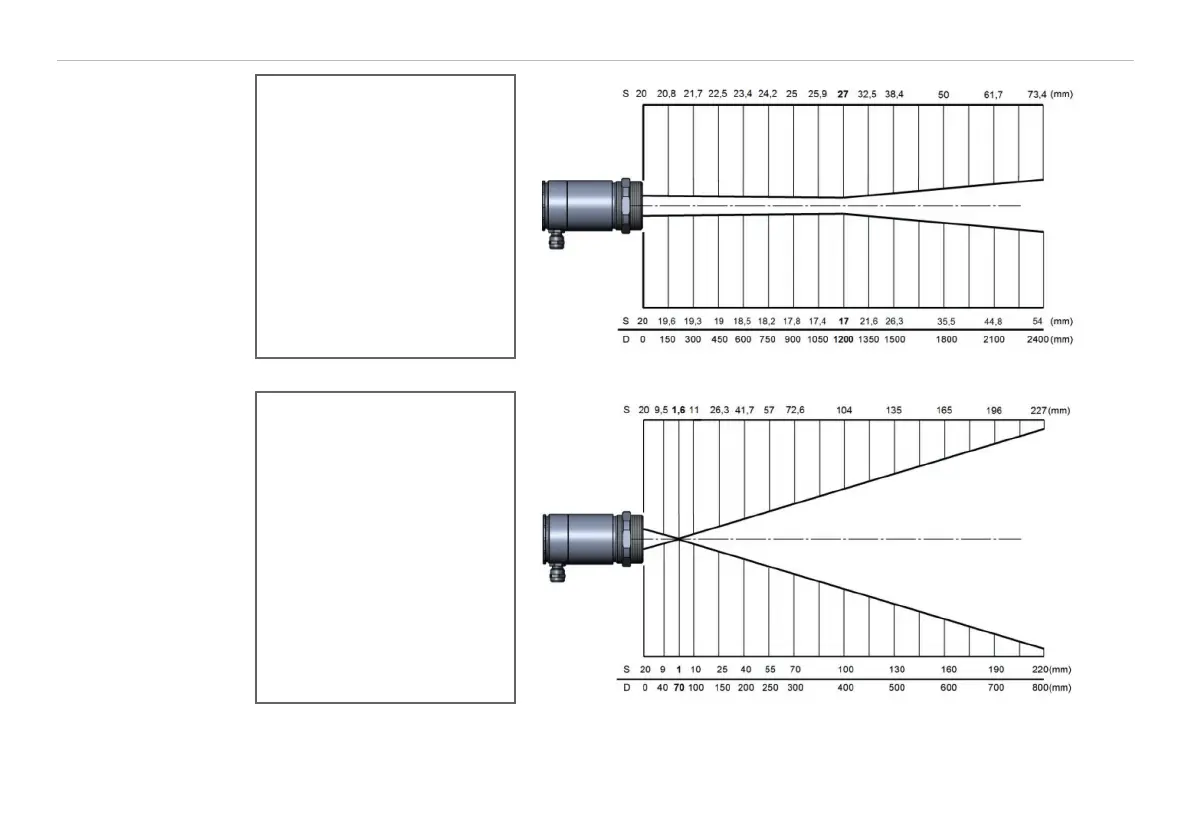

Optics: SF

D:S (Focus distance) = 45:1

27 mm @ 1200 mm

D:S (Far field) = 25:1

Optics: SF

D:S (Focus distance) = 70:1

17 mm @ 1200 mm

D:S (Far field) = 33:1

GL / CTLC-4 / CTLC-2 /

CTLC-6

Optics: CF1

D:S (Focus distance) = 45:1

1.6 mm @ 70 mm

D:S (Far field) = 3:1

Optics: CF1

D:S (Focus distance) = 70:1

1 mm @ 70 mm

D:S (Far field) = 3.4:1
