Page 36

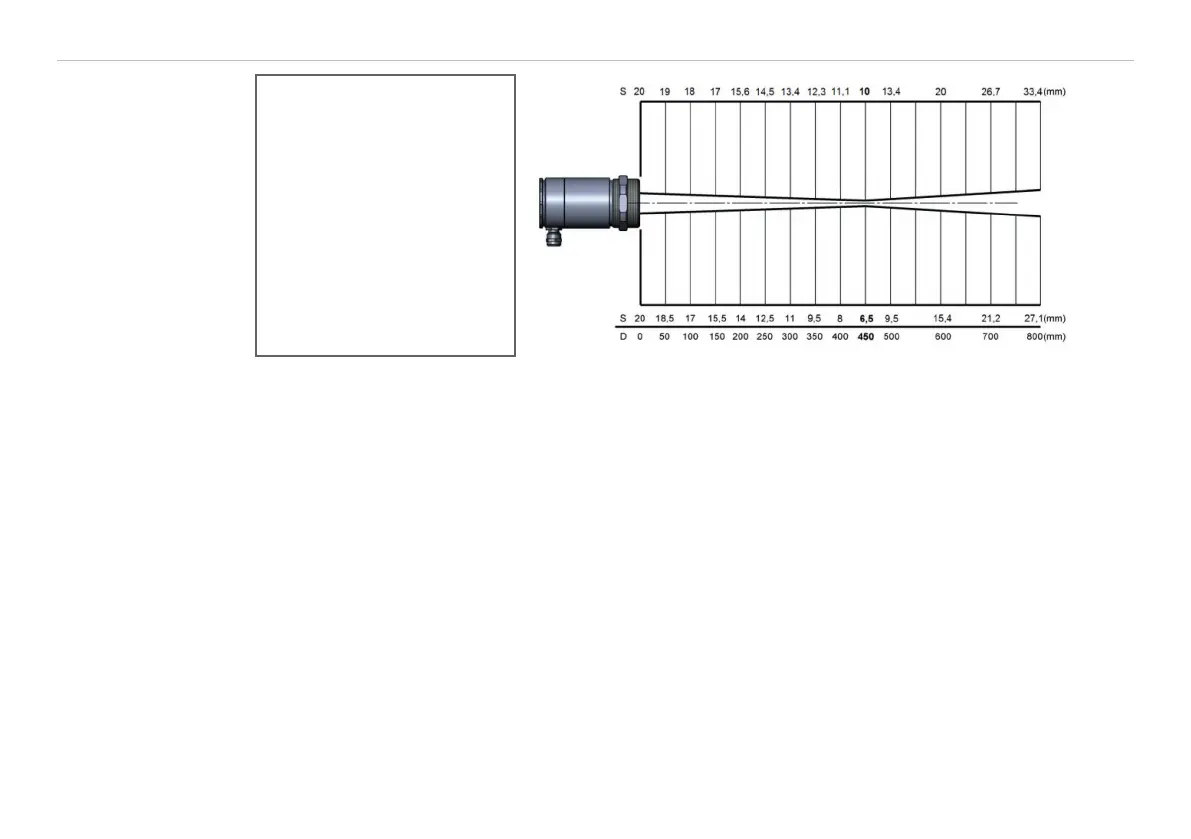

Optical Charts

thermoMETER CTL

GL / CTLC-4 / CTLC-2 /

CTLC-6

Optics: CF4

D:S (Focus distance) = 45:1

10 mm @ 450 mm

D:S (Far field) = 15:1

Optics: CF4

D:S (Focus distance) = 70:1

6,5 mm @ 450 mm

D:S (Far field) = 17.7:1
