Page 43
Electrical Installation
thermoMETER CTL
Designation (Models CTLM)
+8 ... 36 VDC Power supply
GND Ground (0 V) of power supply
GND Ground (0 V) of internal inputs and outputs
AL2 Alarm 2 (open-collector output)
OUT-TC Analog output thermocouple (J or K)
OUT-mV/mA Analog output object temperature (mV or mA)
F1-F3 Functional inputs
GND Ground (0 V)
3 V SW PINK/ Power supply laser (+)
GND GREY/ Power supply laser (-)
BROWN Temperature sensor (NTC)

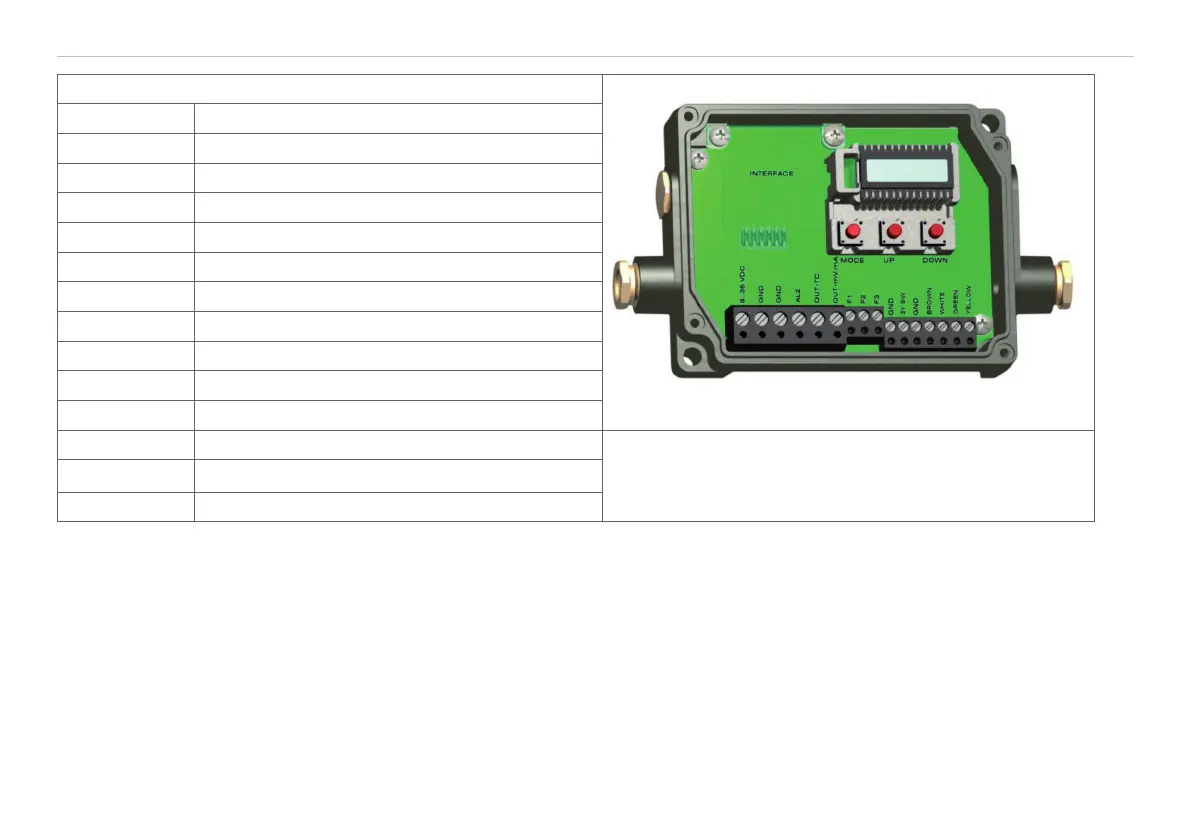

WHITE Sensor ground Fig. 8 Opened controller CTLM with terminal connections
GREEN Sensor power sensor
YELLOW Detector signal
