Page 74

Outputs and Inputs

thermoMETER CTL

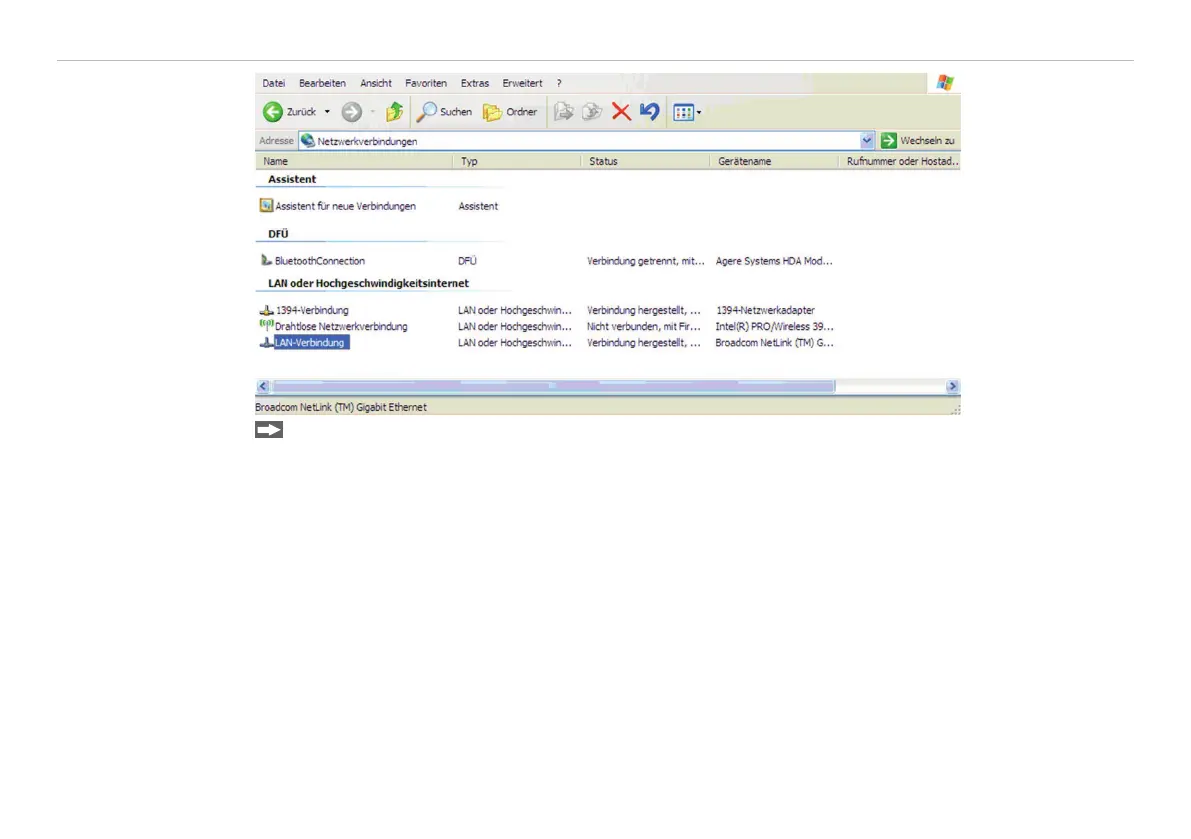

Mark the LAN connection and open the properties window using the right mouse button.
