16

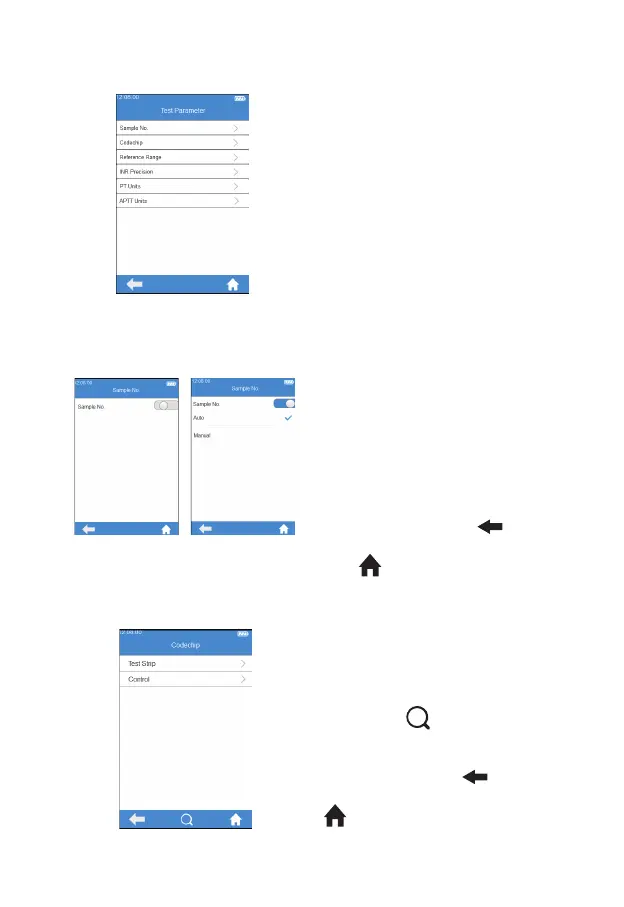

7.4 Test Parameter
Click "Test Parameter" from the
Setting screen (Figure 3-1) to enter
the screen (Figure 3-7) that prompts
the user to set the parameters.
7.4.1 Sample No.
Click "Sample No." from the Test
Parameter screen (Figure 3-7) to
enter the screen (Figure 3-8) that
prompts the user to set the sample
No. If the sample No. button is
grayed out, then the sample does
not need to be numbered. If the
sample No. button is blue, the
sample can be numbered manually
or automatically. Click "
" to
return to the previous screen and
click " " to return to the main
menu.
7.4.2 Codechip
Click “Codechip” from Test
Parameter menu (see gure 3-7) to
enter Codechip menu (see gure
3-9). Touch “
” to search and
view the corresponding Codechip
information displayed based on the
search criteria.Click " " to return
to the previous screen and click
" " to return to the main menu.
（3-9）
（3-7）
（3-8）
