Microtest CT-8700 - APPENDIX A, CT-8700 Cable sets; 1. RS-232 C CABLE; 2. PRINTER CABLE

APPENDIX
APPENDIXAPPENDIX
APPENDIX
P 49

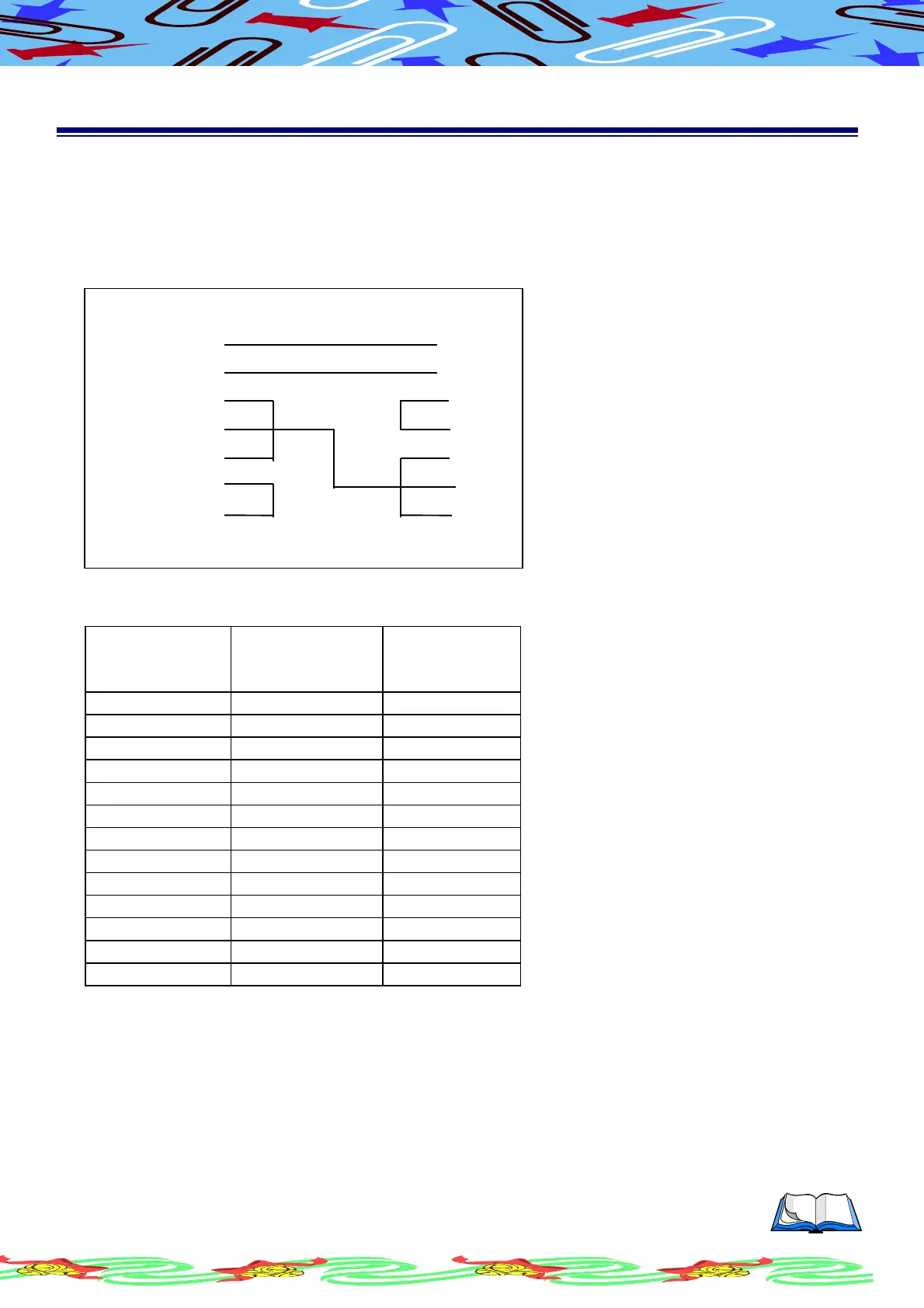

APPENDIX A、
、、
、 CT-8700 Cable sets
1. RS-232C CABLE
9-PIN connector (Female) 25-PIN connector (Female)
2. PRINTER CABLE
25-PIN
connector
(Male)
36-PIN
connector
(Male)
Symbol
1 1 STROBE
2 2 DATA 0
3 3 DATA 1
4 4 DATA 2
5 5 DATA 3
6 6 DATA 4
7 7 DATA 5
8 8 DATA 6
9 9 DATA 7
10 10 ACKNLG
11 11 BUSY
13 13 SLCT
18 ~ 25 19 ~ 30, 33 GND
1
2
3
4
5
6
7
20
NC 1
RxD 2
TxD 3
DSR 4
GND 5
CTS 6
CTS 7
RTS 8
GND 9
