Model SPD-6
Pos. Ref. Q.ty Descrizione Description Kit
REVISION DATE - 00/00
TAB. 1.0.0

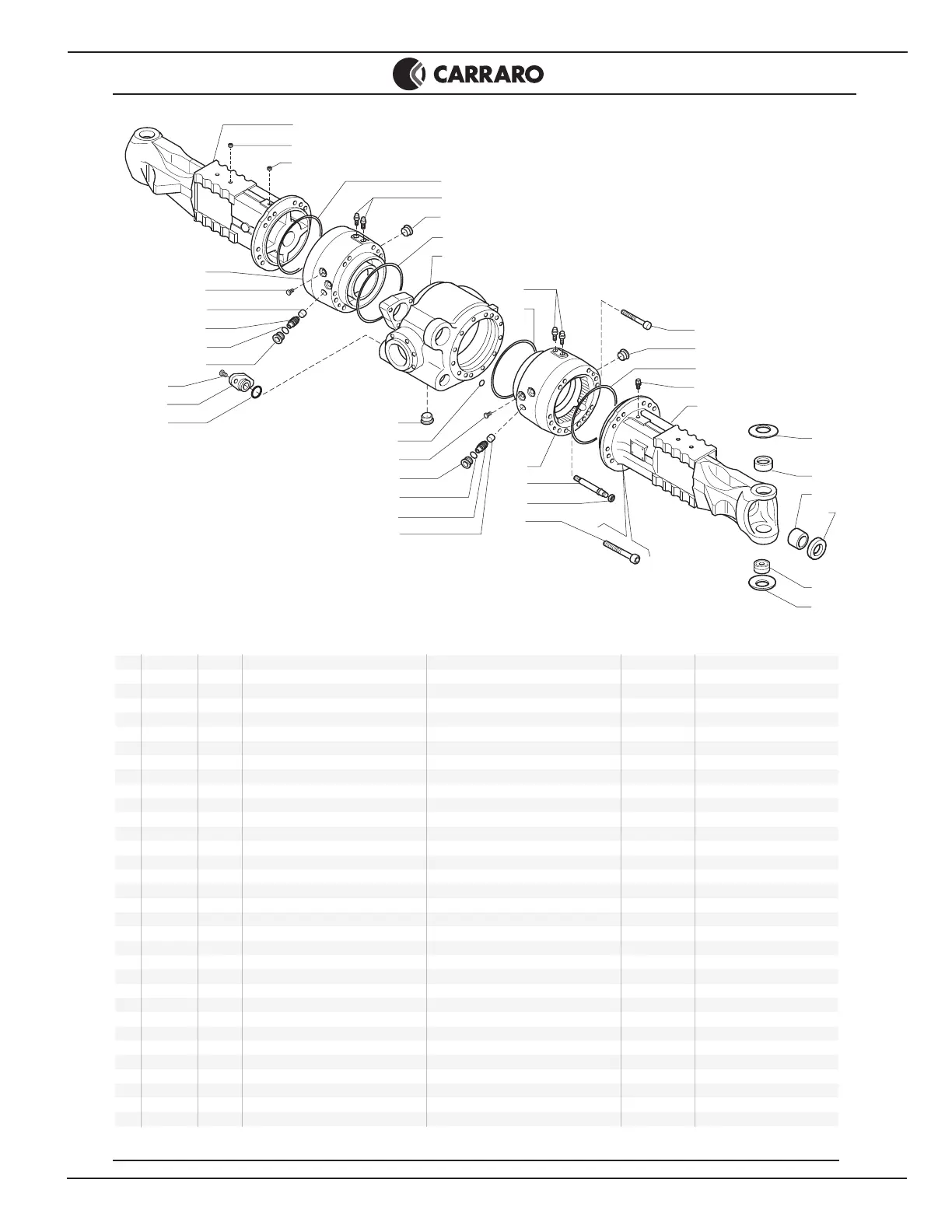

Corpo assale
Axle housing
Note
26.20M+TB172 REF.AXLE 139970
P/N: CA355195
1 145312 2 Tromba Trumpet
3 028562 4 Anello OR ORing
4 116792 4 Sfiato M10x1 Breather M10x1
6 140520 1 Corpo centrale Centra bodyl
030740 4 Tappo Plug
H Brake cylinder
21 128630 2 Molla tazza Belleville washer
22 123726 2 Rotula sferica Spherical joint
23 139101 2 Anello di tenuta Seal
24 118547 2 Bronzina Bushing
25 143563 2 Boccola Bushing
26 128633 2 Molla tazza Belleville washer
27 104988 1 Sfiato M10x1 Breather M10x1
2 021558 1 Tappo M10x1 Plug M10x1
5 125280 3 Tappo M30x2 Plug M30x2
7 139816 1 Flangia SX LH Brake cylinder
8
9 139955 6 Spina Pin
10 136152 6 Vite M16x1.5 Screw M16x1.5
11 028534 6 Anello OR O ring
12 139922 6 Vite speciale Screw
13 020781 2 Vite M8x25 Screw M8x25
14 130033 1 Coperchio Cover
15 028557 1 Anello OR O ring
16 028111 2 Anello OR O ring
17 139815 1 Flangia DX R
18 139147 2 Prigioniero Stud
19 022128 2 Dado Nut
20 021364 22 Vite M16x150 Screw M16x150
28 021334 2 Vite M12x110 Screw M12x110
29 021494 4 Grano M10x10 Grub M10x10
1
29
3
4
5
6
4
7
8
9
10
11
12
13
14
15
16
6
17
9
13
12
11
10
18
19
20
21
27
26
25
24
23
22
29
6
4
28
1
5
4
