2. Using a 24 mm hex wrench, install valve (L00**). Torque to 52 N•m [39 lbf•ft].

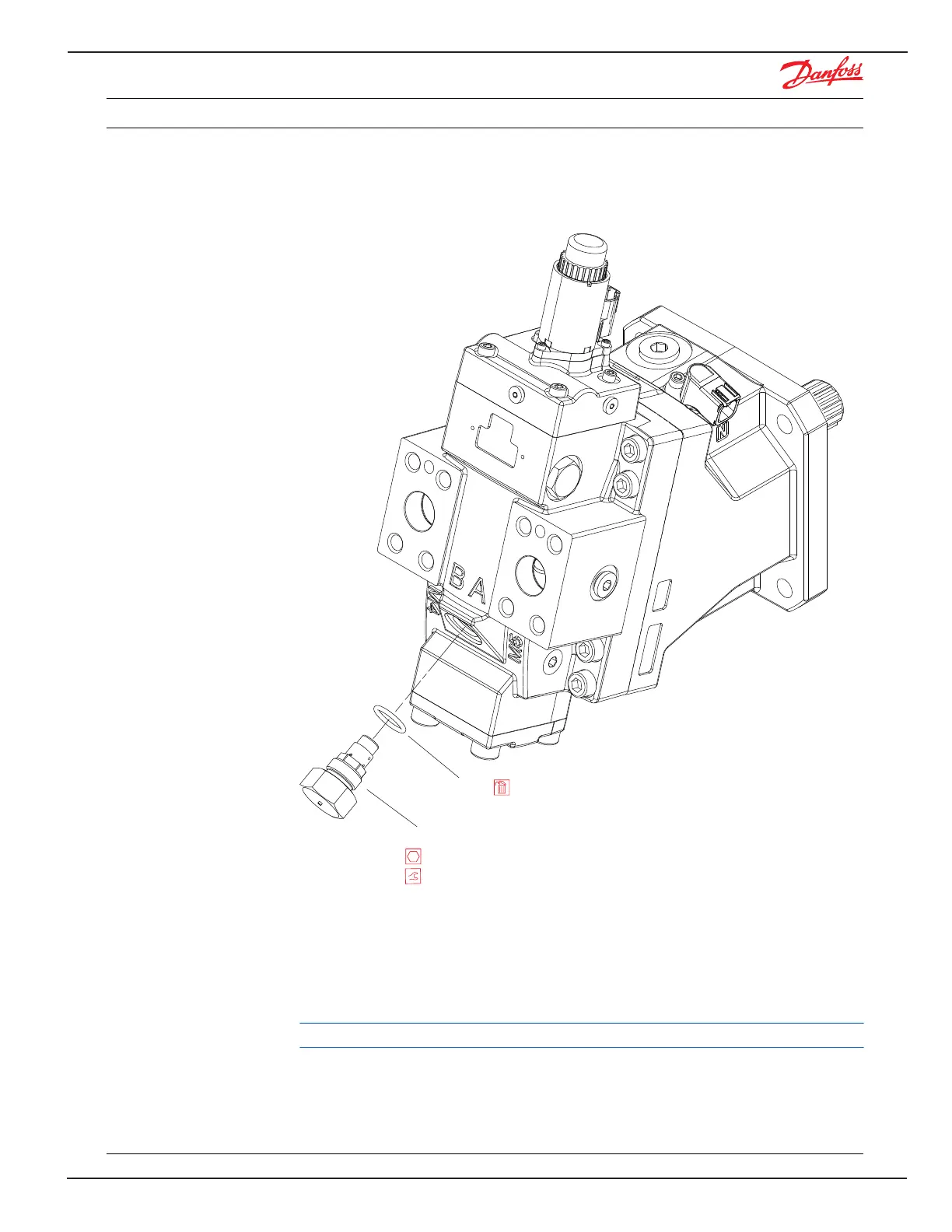

Loop flushing charge relief valve replacement
P106 538E
L0050
L00**
52 N•m [39 lbf•ft]
24 mm
Minimum Displacement limiter
Removal
1. Remove cap (N0120).
Removing the cap destroys the caps locking mechanism. Replace with a new cap.
2. While holding the position of the adjustment screw, remove the seal locknut (N0020) using a 19mm
hex wrench. Discard the locknut. After removing the locknut, mark the position of the limiter screw
for reassembly.
3. Using a 6 mm internal hex, remove displacement limiter screw (N0010).
Service Manual H1B 060/080/110/160/250 Bent Axis Motors
Minor repair
11024924 • Rev CB • February 2015 59
