Model SPD-6
Inspection
Inspect set screw for wear or damage. Replace set screw if necessary.
Assembly
1. Using a 6 mm internal hex wrench, install adjustment screw (N0010) to original position.
2. Using a 6 mm internal hex wrench, to hold the position of the adjustment screw, install a new seal
locknut (N0020) using a 19mm hex wrench. Torque to 45 N•m [32 lbf•ft].
3. Install new cap (N0120).

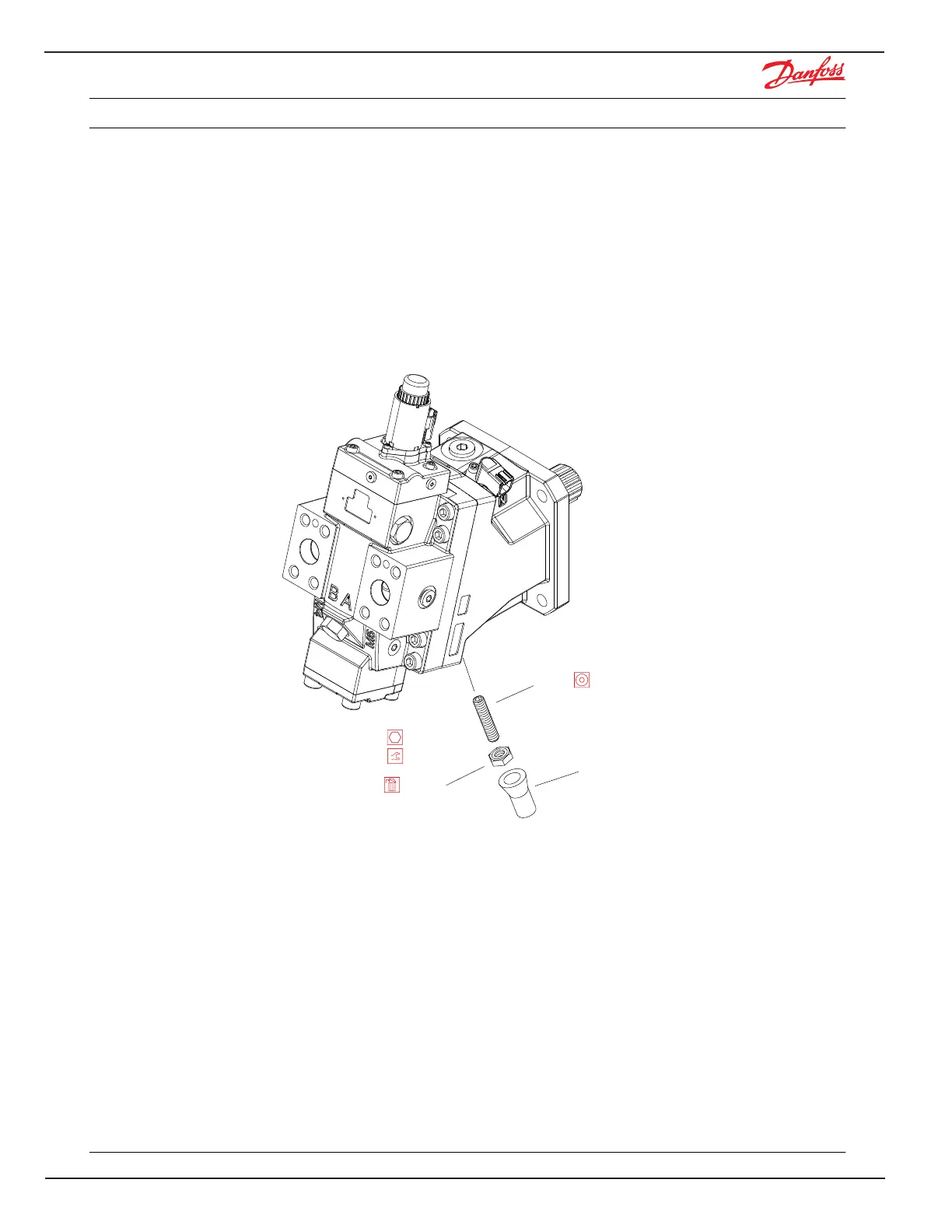

Displacement limiter assembly
N0020
N0120
N0010
19 mm
6 mm
P106 547E
45 N•m
[32 lb•ft]
