Model SPD-6

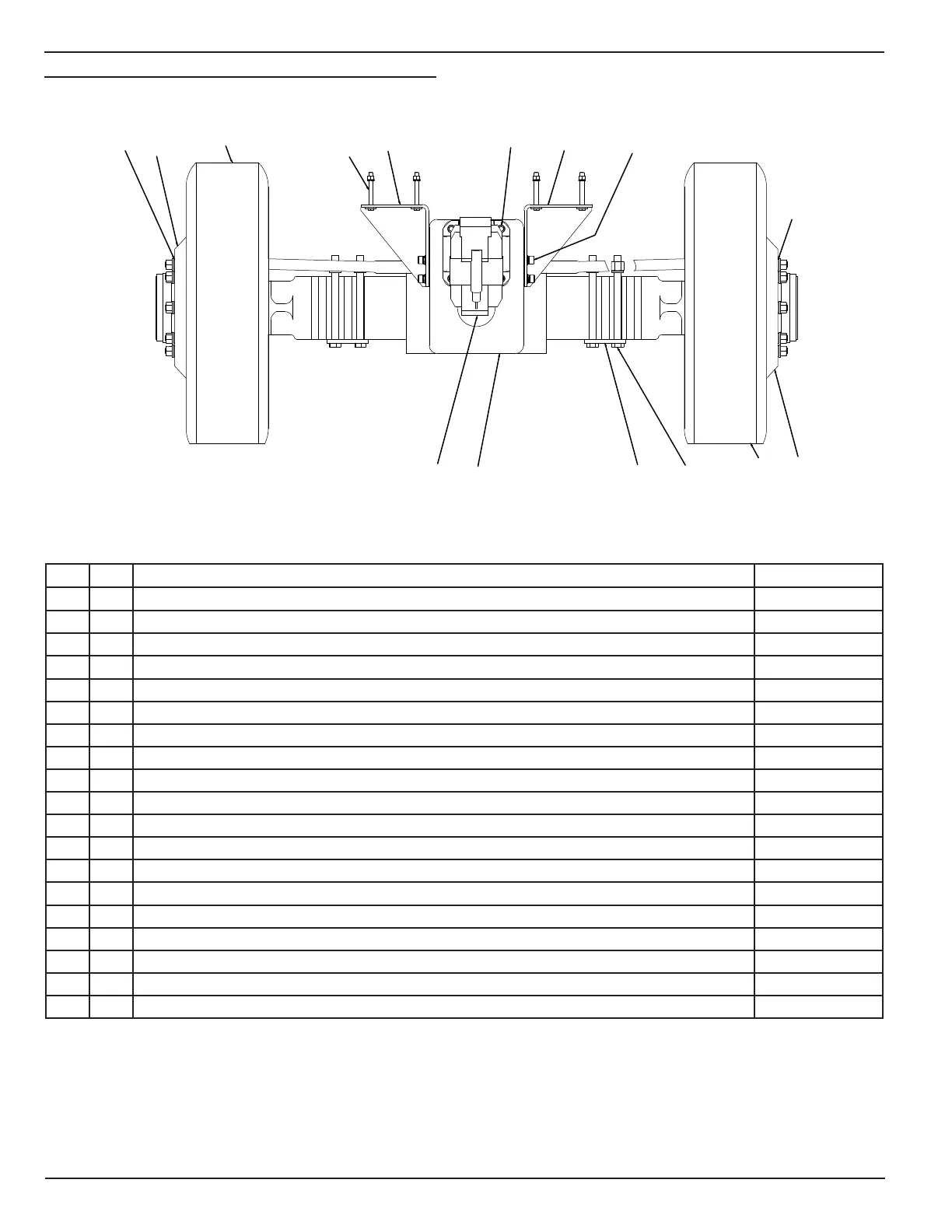

7.2 front Axle AssemBly, sp-684 rev-A
No. Qty. Description Part Number
1 1 Axle, Front Drive, Steering CA640710
2 1 Gearbox Mount-L/S SP-1070
3 1 Gearbox Mount-R/S SP-1069
4 2 Bottom Plate, Axle Mount SP-1031
5 2 Wheel, Steel Tubeless M6110
6 2 Tire, Radial, All Position M6109
7 1 Motor M6552
8 8 Lock Washer (Metric) 16 LKW-M-16
9 8 Lock Washer, 7/8 LKW-7/8
10 4 Lock Washer, 1/2 LKW-1/2
11 4 Socket Hd Cap Screw (Metric) 16 X 2.0 X 50 KCS-M-16-2.0-50
12 4 Socket Hd Cap Screw (Metric) 16 X 2.0 X 40 KCS-M-16-2.0-40
13 4 Hex Nut, 1/2-13 UNC HXN-1/2-13
14 8 High Hex Nut, 7/8-14 UNF(Grade 8) HIN-7/8-14
16 8 Hex Hd Cap Screw 7/8-14 UNF X 11.0 (Grade 8) HCS-7/8-14-11.00
17 16 Flat Washer - Metric, Zinc Plated 18 FLW-MP-18
18 4 Flat Washer (Metric) 16 FLW-M-16
19 4 Flat Washer, 1/2 FLW-1/2
20 4 Hex Hd Cap Screw, 1/2-13 UNC X 4 1/2 HCS-1/2-13-4.50
17
3
5
19, 13, 10, 20
4
6
16, 9, 14
6
11, 8
2
17
5
12, 18, 8
1
7
