29
www.roadwidener.com
Model SPD-6
12. Reinstall blade push tube mount (C) at
approximately ½ to ⅔ of blade length. Reinstall
blade slope mount (D) at approximately ⅔ of blade
length. Use suitable hardware.
13. Reinstall slope control cylinder (B), Push Tube
assembly (A).
14. Set up paving and slope angles as described
previously in this chapter.
5.5 pusH roller setup
^ WARNING
Prevent serious injury or death.
Before performing adjustments,
inspections, service or maintenance:
• Park machine on rm, level surface and
engage parking brake.
• Switch engine off.
• Close and lock control panel cover.
• Chock tires.
• Place “Do Not Operate” tag on
operators console.
5.5.1 mAnuAl pusH rollers
NOTICE
Prevent machine damage.
Do not pull out push roller beyond 6th
hole.
Push roller assembly may fall out of tubes
and cause machine damage.
Set push rollers at proper distance for trucks being
used. Correct distance is needed so the material does
not spill on the road or dump on back of hopper.

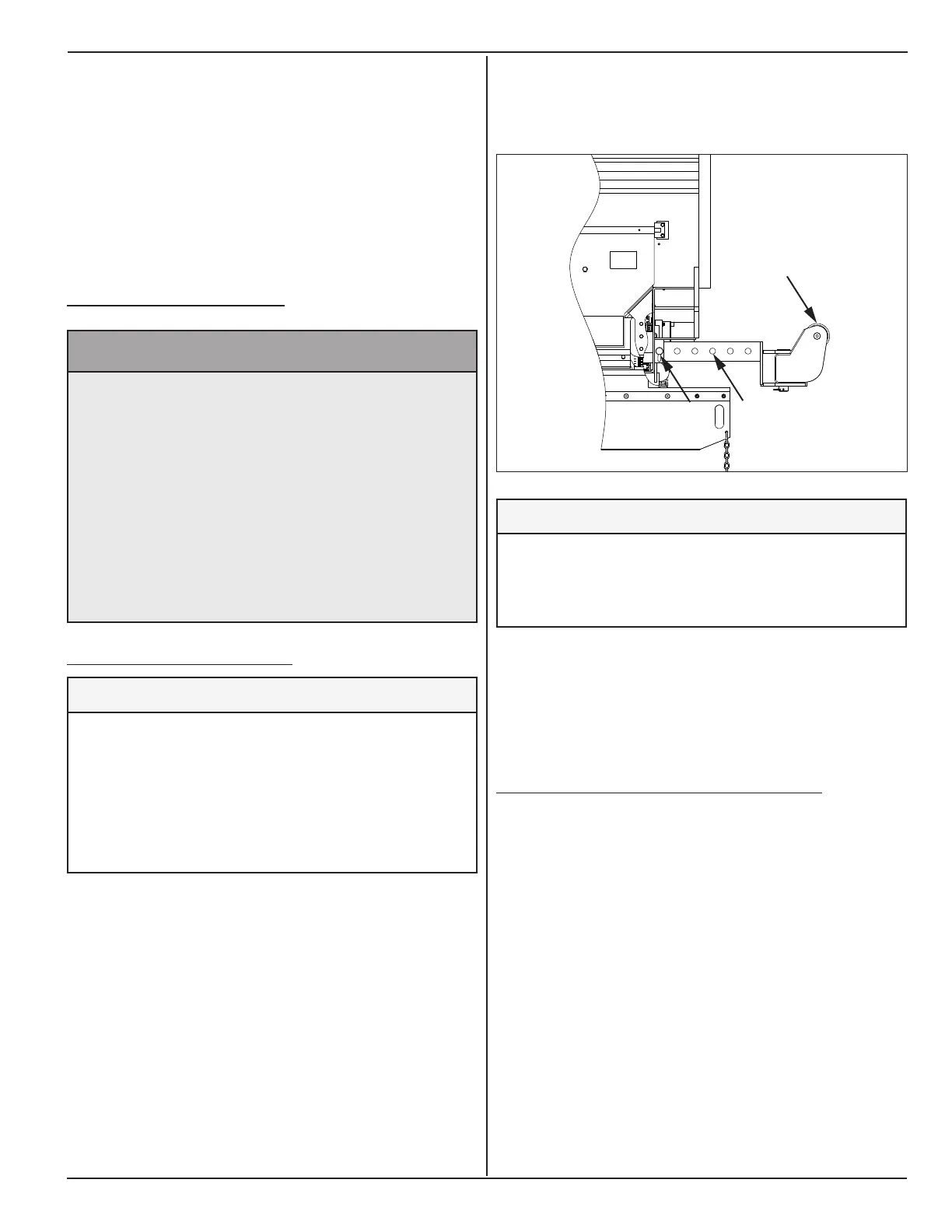

1. Release the locking pins (A) at the mount tubes
under the hopper.
2. Carefully pull out push rollers (B) out to the last
pinhole. Count visible holes (C) on push roller
mount tube. If 5 holes are visible, the push roller is
on last hole.
3. Have dump truck back up towards hopper or move
machine forward until truck tailgate position is such
that with tailgate locked, material should dump in
center of the hopper, not on road or back of hopper.
There should be at least 6 inch clearance above
belt for tailgate.
A
C
B
NOTICE
Prevent machine damage.
Truck tailgate contacting conveyor belt will
damage conveyor belt.
4. Truck’s rear tires will move push rollers back to
correct position.
5. Pull truck forward and insert locking pins (A) in the
nearest hole (C).
5.5.2 HydrAulIC pusH roller (optIonAl)
1. Perform Startup Procedure. See section 5.2.
2. Position dump truck until tailgate position is such
that with tailgate locked, material should dump in
center of hopper. There should be a minimum of 6
inch clearance above belt for tailgate.
3. Toggle push roller switch on operator console to
move push roller beam forward until push rollers
touch rear tires of dump truck.
