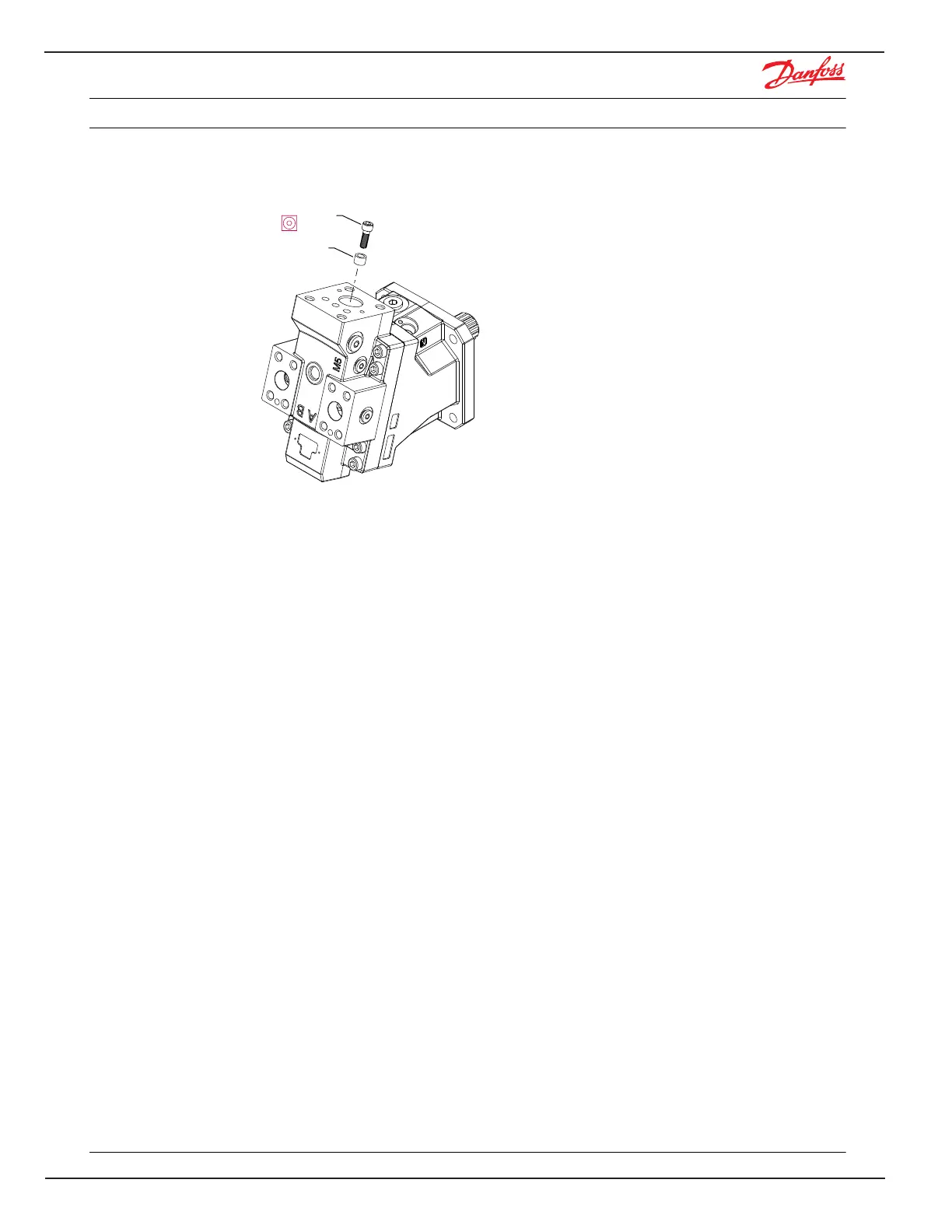

Servo piston cover – proportional control
Removal
1. Using a 10 mm internal hex wrench, remove four screws (P0020).
2. Remove servo piston cover (P0010).
3. Remove and discard O-ring (P0030).
4. Remove screw (P0050). See table for wrench size.
Service Manual H1B 060/080/110/160/250 Bent Axis Motors
Minor repair
