www.roadwidener.com
30
Model SPD-6
5.6 operAtIon
5.6.1 stArt operAtIon
^ WARNING
Carbon monoxide hazard.
Do not operate engine with machine in an
enclosed building or conned area.
Avoid actions or areas that expose you and
others to carbon monoxide
^ WARNING
Prevent serious injury or death.
Before performing adjustments,
inspections, service or maintenance:
• Park machine on rm, level surface and
engage parking brake.
• Switch engine off.
• Close and lock control panel cover.
• Chock tires.
• Place “Do Not Operate” tag on
operators console.
NOTICE
Prevent machine damage.
Hydraulic system damage may occur if
machine is throttled up and moved at low
operating temperature.
Allow sufcient warm up before moving
machine.
1. Perform Startup Procedure. See section 5.2.

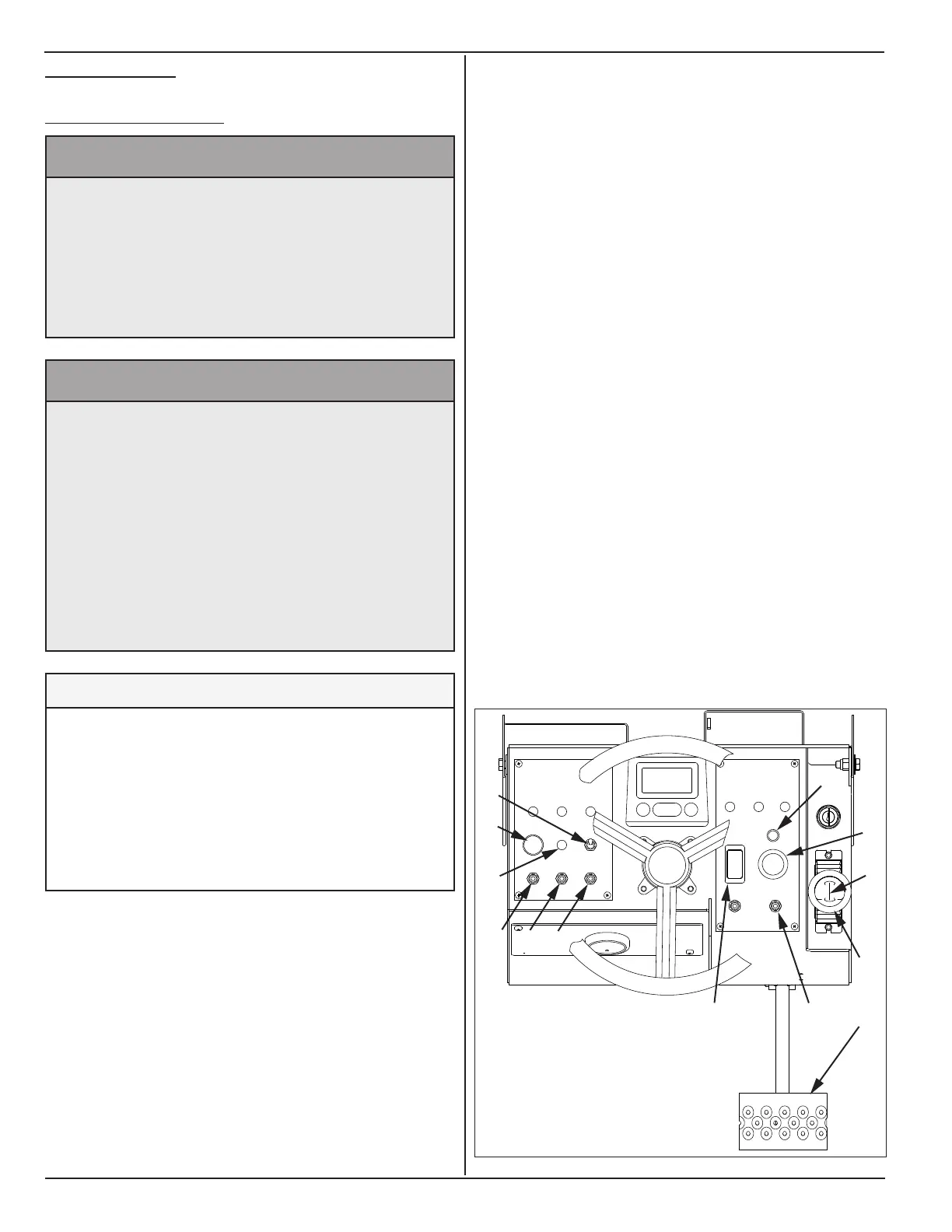

2. Toggle engine throttle switch (A) to increase engine
speed to full. Do not start conveyor.
3. Toggle grade switch (B) to adjust strike off blade
grade.
4. Toggle slope switch (C) to adjust strike off blade
slope.
5. Set up strike off blade. See section 5.3.
6. If provided, toggle hydraulic blade extension switch
(D) to extend and retract optional hydraulic blade
extension to get desired blade length.
7. If provided, toggle hydraulic push roller switch (E)
to operate optional hydraulic push roller.
8. To pave, toggle drive range selector switch (F)
down to select low gear. This selection provides
low speed and high power.
9. To travel, toggle drive range selector switch (F) up
to select high gear. This selection provides high
speed and low power. Do not pave in this setting.
10. Set dump truck tailgate chain to restrict tailgate
opening to 12-18 inches, depending on material.
Have dump truck back up until rear tires are in
contact with push rollers.
11. Toggle conveyor on/off switch (G) to start conveyor
belt. Toggle conveyor speed rocker switch (H) to
increase conveyor speed to less than half speed.
12. Open tailgate to place material in front of the strike-
off blade. Wait until material height is approximately
¾ of blade height.
13. Pull E-stop button (I) out to release parking brakes.
Parking light (J) will go off when parking brakes are
released.
B
D
C
G
A
E
F
J
I
H
K
L
M
