Model SPD-6

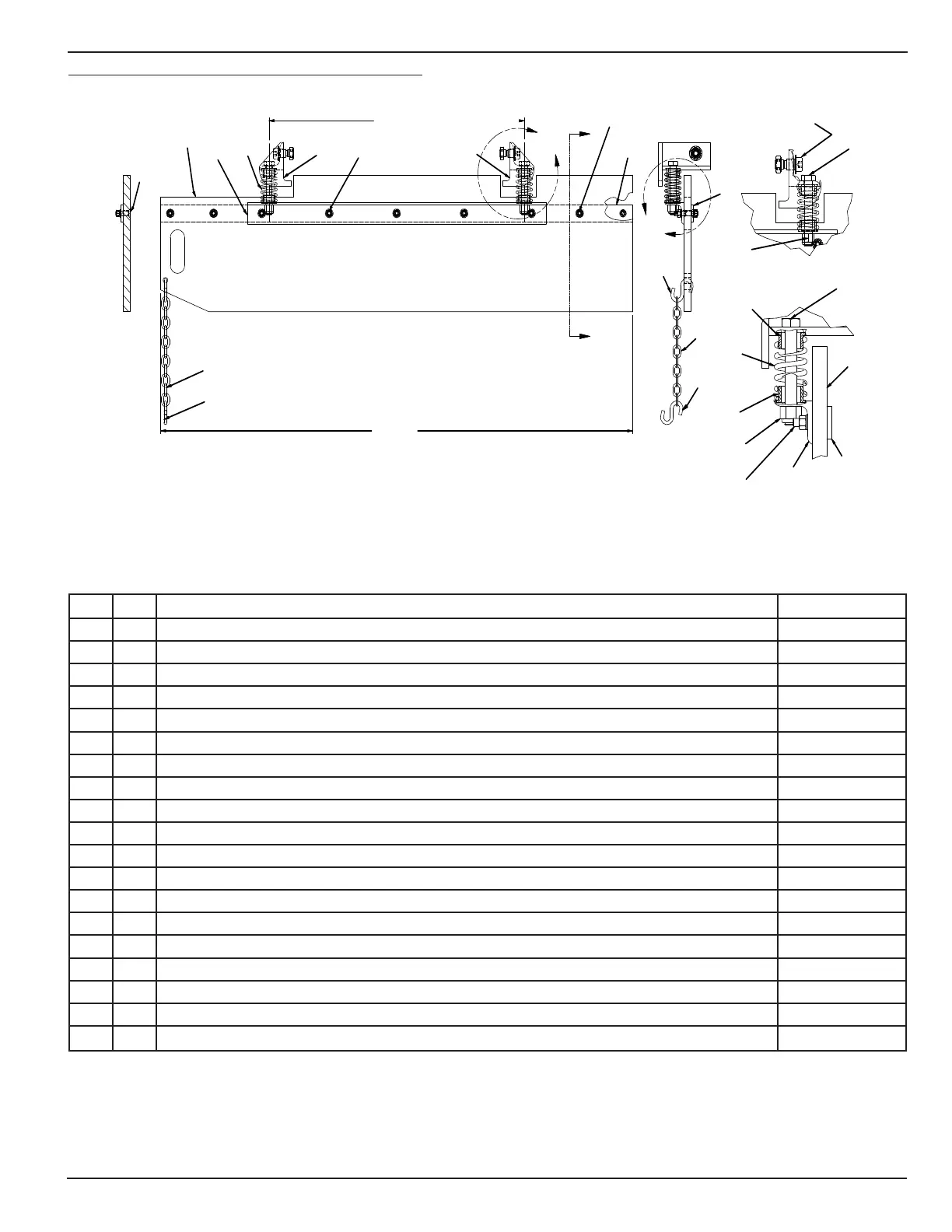

7.3.2 defleCtor AssemBly, sp-1094 rev-B
No. Qty. Description Part Number
1 11 Chain, Machine 2/0 3596T24
2 2 Elastic Stop Nut, 5/8-11 UNC ESN-5/8-11
3 4 Flat Socket Hd Cap Screw 3/8-16 UNC X 1-1/2 FCS-3/8-16-1.50
4 5 Flat Socket Hd Cap Screw 3/8-16 UNC X 2 FCS-3/8-16-2.00
5 2 Hex Hd Cap Screw 5/8-11 UNC X 4-1/2 HCS-5/8-11-4.50
6 2 Hex Jam Nut, 5/8-11 UNC HJN-5/8-11
7 9 Hex Nut, 3/8-16 UNC HXN-3/8-16
8 9 Lock Washer, 3/8 LKW-3/8
9 2 Flat Washer, 3/4, AN960-C1216, 1.312 OD X .765 ID X .082-.098 Thk M6125
10 2 Spring, Compression 1-11/16 OD X 3" Lg X 7/32 Wire Dia. M6143
11 2 S-Hook SA-350-33
12 2 Shoulder Screw 3/4 X 3/4 SHS-3/4-0.75
13 1 Deector Arm, Front SP-1095
14 1 Deector Arm, Rear SP-1100
15 1 Deector SP-1101
16 1 Deector Angle SP-1103
17 1 Deector Retainer SP-1104
18 4 Bushing, Flanged, Bronze M6467
DETAIL A
DETAIL B
SECTION C-C
A
B
C
C
REF
REF
REF
REF
REF
REF
REF
REF
26 1/2 REF
11
1
15
10 13
14
17
5
2
17
3, 8, 7
REF
16
8
2
5
10
15
4, 8, 7
17
3, 8, 7
6, 9, 12
1
11
11
18
4, 7, 8
16
