Model SPD-6
4. Reconnect electrical connections and test the motor for proper operation.
Replacing solenoid
B0010
P106 724E
4 mm
6 N•m [ 4 lbf•ft]
B0050
B0035A
C0100

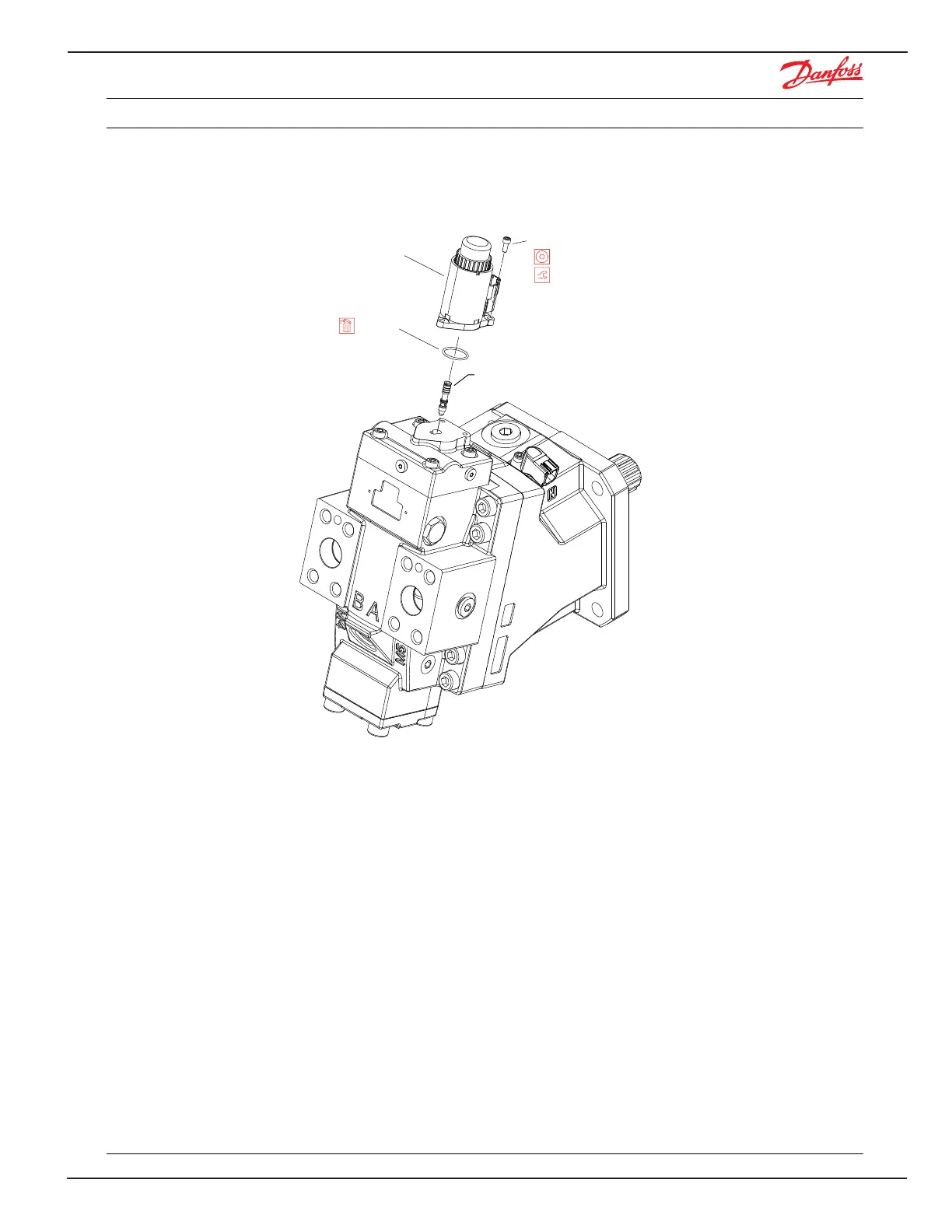

Hydraulic proportional actuator replacement
Removal
1. Remove three cap screws (B0050) using a 4 mm internal hex wrench.
2. Remove the actuator (B0010).
Inspection
Clean and inspect all machined surfaces for damage or wear. Replace parts if necessary.
Assembly
1. Install cap screws (B0050) using a 4 mm internal hex wrench. Torque screws to 6 N•m [4 lbf•ft].
Service Manual H1B 060/080/110/160/250 Bent Axis Motors
Minor repair
11024924 • Rev CB • February 2015 45
