Model SPD-6
4. Using a 24 mm hex wrench, install plugs (K0030). Torque to 52 N•m [39 lbf•ft]

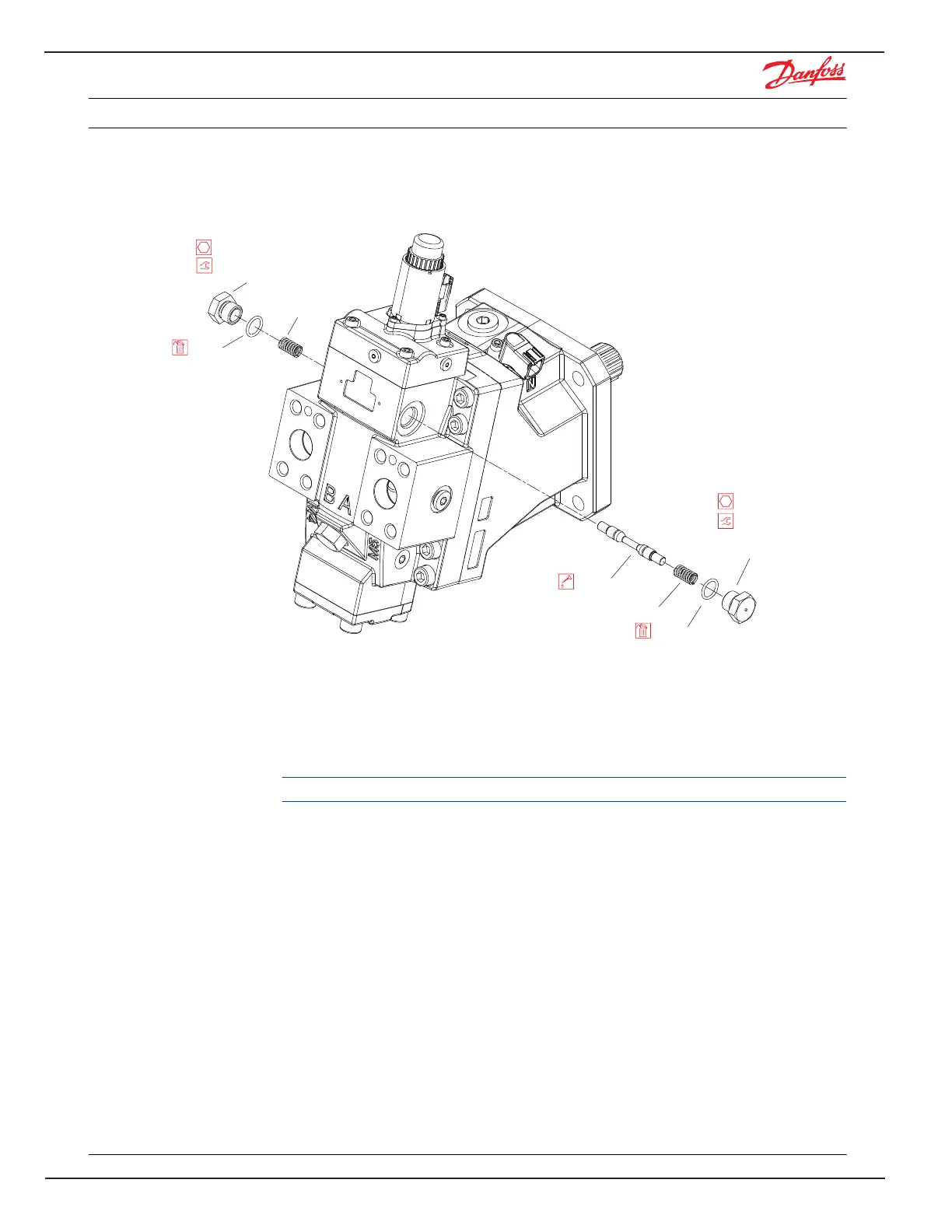

Loop flushing assembly
K0010
K0030
K0030A
K0020
K0030
K0030A
K0020
P106 537E
52 N•m
[39 lbf•ft]
52 N•m [39 lbf•ft]
24 mm
24 mm
Loop flushing charge relief valve
Removal
1. Using a 24 mm hex wrench remove valve (L00**)
2. Remove and discard O-ring (L0050).
Do not disassemble valve. If you suspect malfunction, replace valve.
Assembly
1. Install new O-ring (L0050).
