Model SPD-6

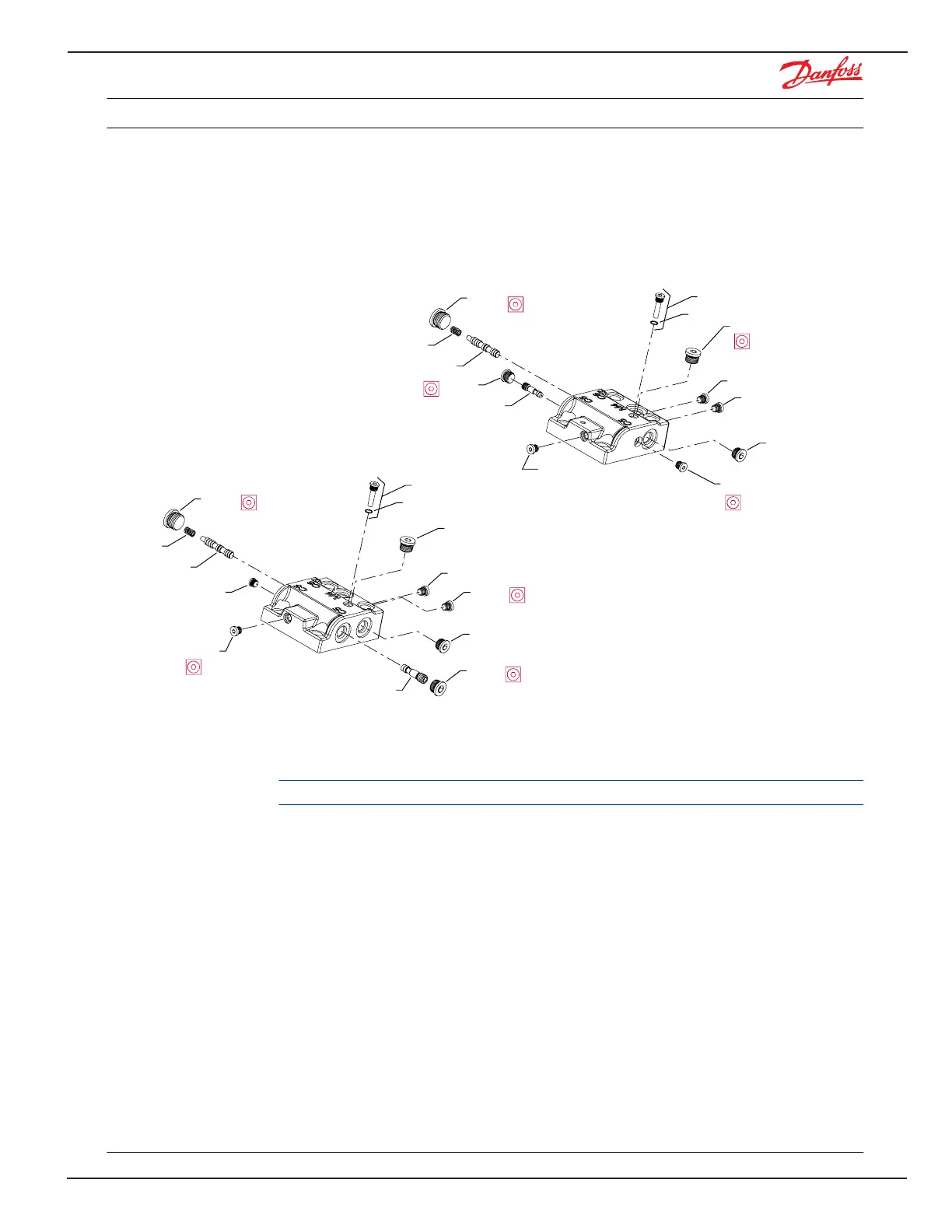

2. Using a 3/8 inch internal hex wrench, install plug (C0140). Torque to 25 N•m [18 lbf•ft].
3. Lubricate and install spool (C0025).
4. Using a 1/4 inch internal hex wrench, install two plugs (C0050). Torque to 40 N•m [30 lbf•ft].
5. Using a 1/8 inch internal hex wrench, install four plugs (C0060). Torque to 8 N•m [6 lbf•ft].
6. Using a 1/8 inch internal hex wrench, install plug (C0160). Torque to 25 N•m [18 lbf•ft].
C0050
C0050
C0060
C0060
C0050
C0060
C0060
C0160
C0160A
C0140
C0050
C0060
C0060
C0050
C0050
C0060
C0060
C0160
C0160A
C0140
P108 576E
C0080
C0150
C0025
C0025
C0150
C0080
1/4 inch
1/4 in
1/8 in
1/8 in
3/8 inch
1/4 in
1/8 in
3/8 inch
HEHE
HFHF
Maximum displacement limiter two-position controls
It is not necessary to remove the maximum displacement limiter unless it is being replaced.
Disassembly
Models with maximum displacement limiter: Remove screw (P0100) using a 6 mm internal hex, and
spacer (P0200).
Assembly
Install spacer (P0200) and screw (P0100).
Using a 6 mm internal hex, torque screw to 37 N•m [28 lbf•ft].
Service Manual H1B 060/080/110/160/250 Bent Axis Motors
Minor repair
11024924 • Rev CB • February 2015 53
