Model SPD-6
2. Remove speed sensor (J0010).
3. Discard O-ring (J0010A).
Assembly
1. Lubricate and install new O-ring (J0010A).
2. Install speed sensor (J0010).
3. Using a 5 mm internal hex wrench, install screw (J0020). Torque to 8 N•m [6 lbf•ft].

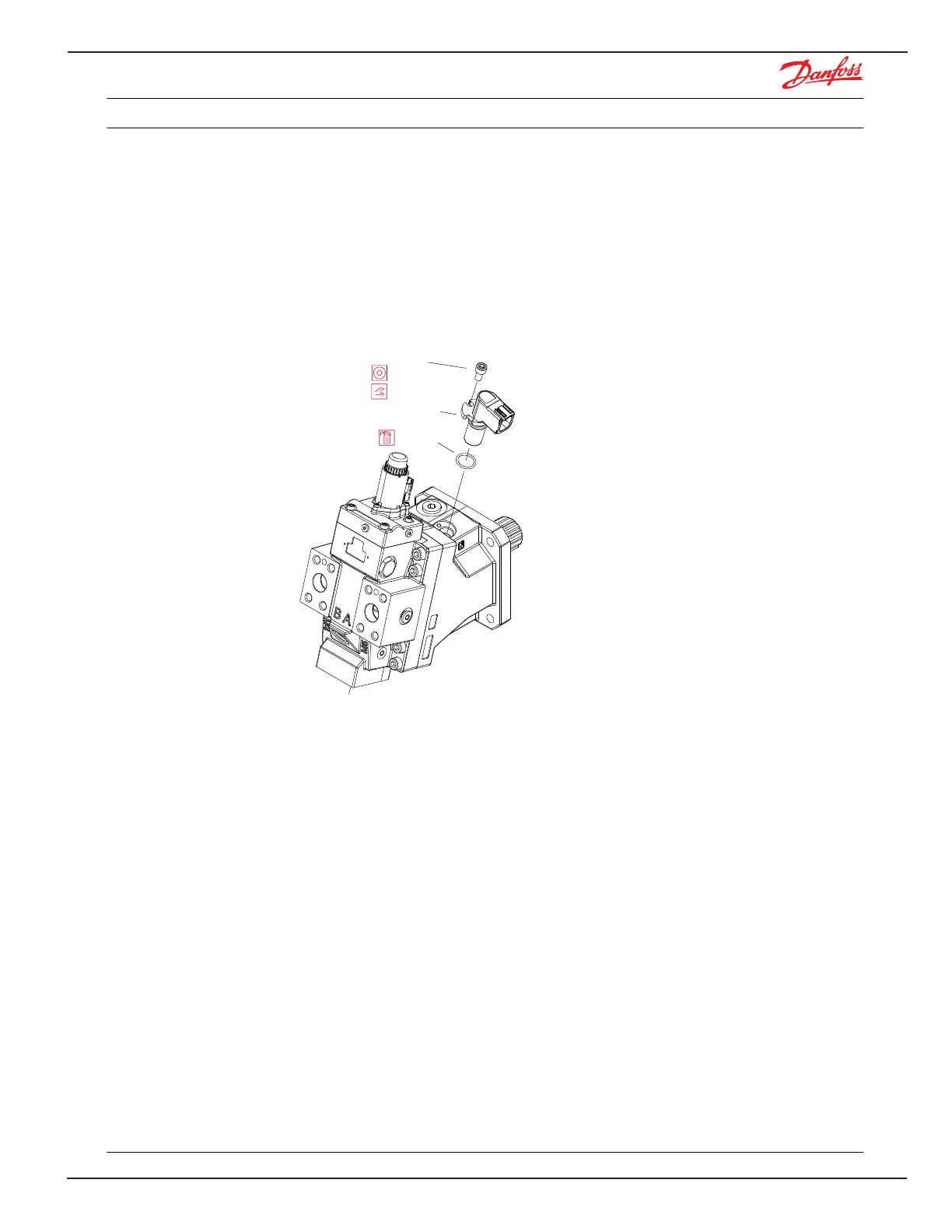

Speed sensor
J0020
J0010A
J0010
5 mm
8 N•m [6 lbf•ft]
P107 859E
Loop flushing spool
Removal
1. Remove plugs (K0030) using a 24 mm hex wrench.
2. Remove and discard O-rings (K0030A).
3. Use a magnet to remove springs (K0020) and spool (K0010).
Inspection
Clean and inspect spool (K0010). If spool is damaged or worn replace it. Replace springs if they are
cracked or bent.
Reassembly
1. Lubricate and install spool (K0010).
2. Lubricate and install springs (K0020).
3. Lubricate and install new O-rings (K0030A).
Service Manual H1B 060/080/110/160/250 Bent Axis Motors
Minor repair
11024924 • Rev CB • February 2015 57
