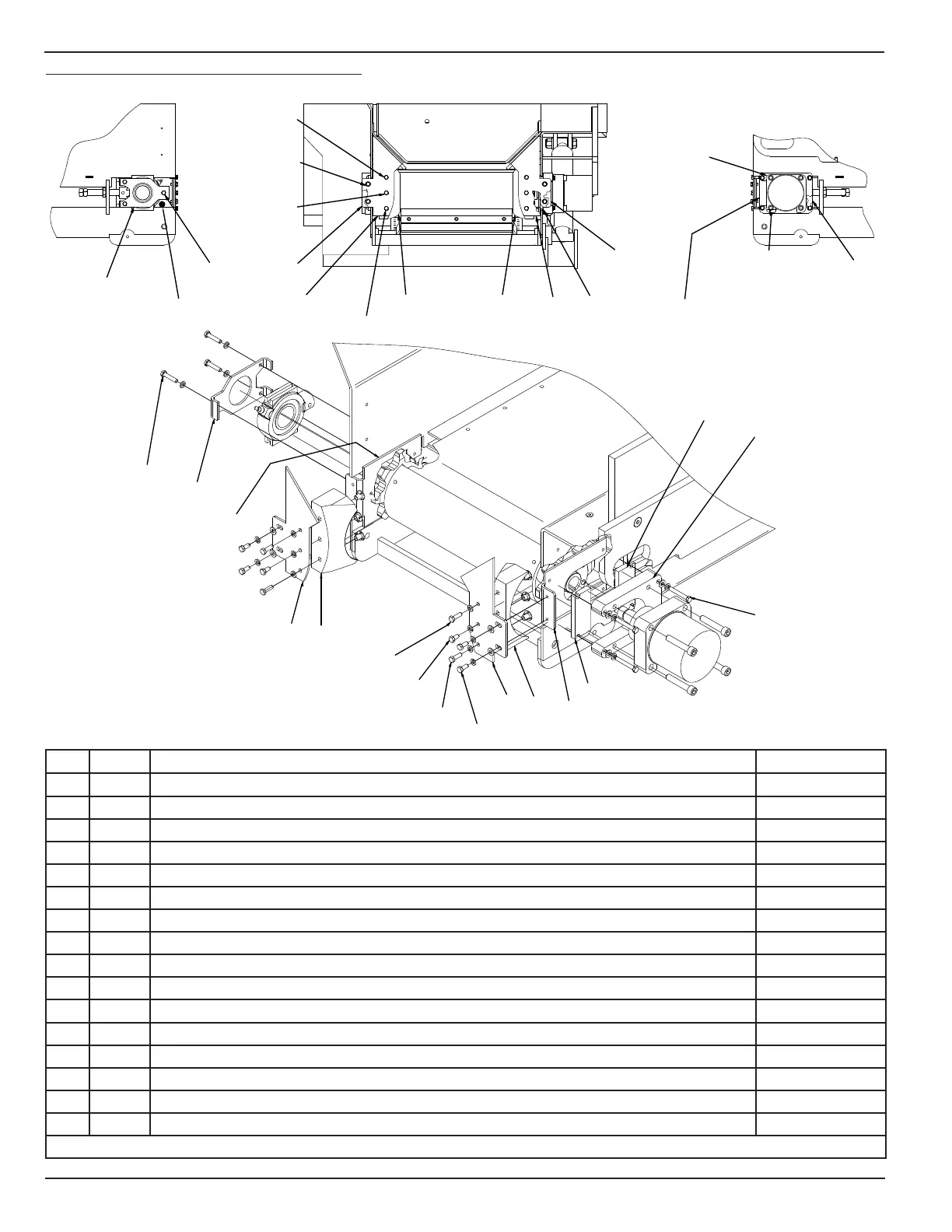

Model SPD-6
7.3.1 CHAIn Cover AssemBly, sp-1380
No. Qty. Description Part Number
1 2 Mtg Plate, Chain Cover SP-1381
2 1 Base Plate @ Motor, Chain Cover SP-1382
3 2 Conveyor End Seal S-955
4 2 Spacer, Conv Motor Mount SP-998
5 1 Motor Mount SP-1016
6 1 Rear Base Plate, Chain Cover SP-1384
7 1 Mounting Clamp- Chain Cover SP-1383
8 4 Tee Nut, 5/16-18 UNC Base 7/8" X 5/8" Height M6344
9 2 Tee Nut, 5/16-18 UNC, Base 7/8" X 3/8" Height M6343
10 4 Hex Hd Cap Screw 5/16-18 UNC X 1 HCS-5/16-18-1.00
11 2 Hex Hd Cap Screw, 5/16-18 UNC X 5/8 HCS-5/16-18-0.63
12 4 Hex Hd Cap Screw, 5/16-18 UNC-2 1/4 HCS-5/16-18-2.25
13 3 Hex Hd Cap Screw, 5/16-18 UNC-1 1/2 HCS-5/16-18-1.50
14 4 Hex Hd Cap Screw, 5/16-18 UNC X 3/4 HCS-5/16-18-0.75
15 17 Lock Washer, 5/16 LKW-5/16
16 8 Flat Washer, 5/16 FLW-5/16
7
13, 15
4
8, 15, 10
16, 15, 14
3
4
9, 15, 11
4
1
6
1
8, 15, 10
3
5
12, 15, 16
6
2
6
1
3
13, 15
7
10, 15, 8
11, 15, 9
10 ,15, 8
1
14, 15, 16
3
2
4
4
5
12, 15,16
