28
Model SPD-6

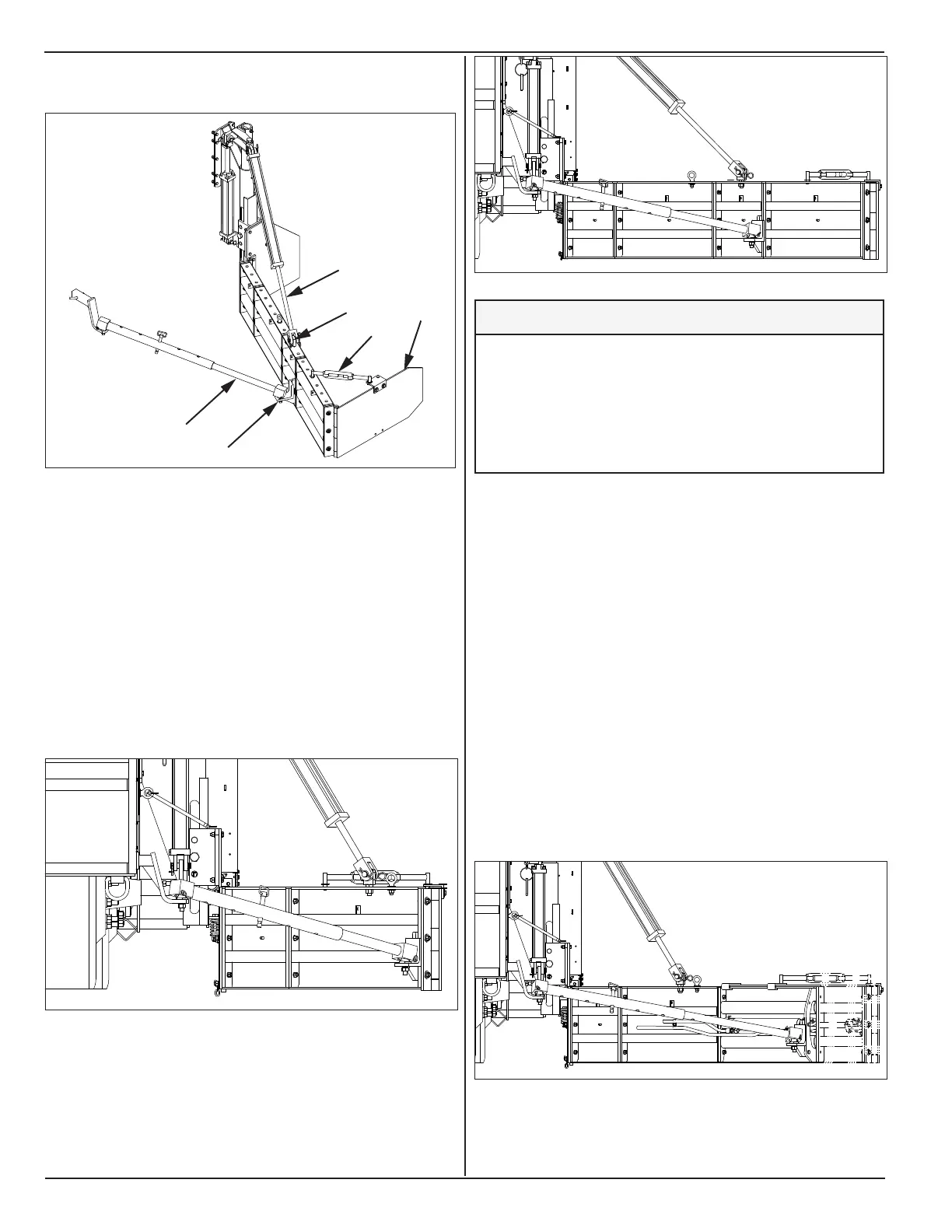

8. Remove edger brace (E) and outer edger assembly
(F).
E
C
B
D
A
F
9. Set blade length to desired paving width by adding
or removing 1 foot and 2 foot sections. Blade
length should be such that desired paving width is
achieved when blade is set at approximately at 60°
angle to direction of travel.
The following illustrations show different combinations
of blade sections.
3 Foot Blade
• (1) - 1 Foot Section
• (1) - 2 Foot Section
6 Foot Blade
• (2) - 1 Foot Section
• (2) - 2 Foot Section
NOTICE
Prevent machine damage.
Hydraulic extension must be the outer
most section with the push tube mount
and slope cylinder mount positioned
inboard.
10. Optional hydraulic blade extension can be used
to make instantaneous adjustment to blade length
by up to one foot. Make sure that hydraulic blade
extension is mounted as the outermost section
on blade. Fixed end of hydraulic extension must
be mounted to outermost blade section. Only
outer edger can be mounted to moveable end of
hydraulic extension.
Following illustration shows a combination of blade
sections with hydraulic extension.
5-6 Foot Blade
• (1) - 1 Foot Section
• (1) - 2 Foot Section
• (1) - 2 - 3.5 Foot* Hydraulic Extension
* Projected stroke length at 60° paving angle.
11. Reinstall outer edger assembly (F) and edger brace
(E).
