73
www.roadwidener.com
Model SPD-6

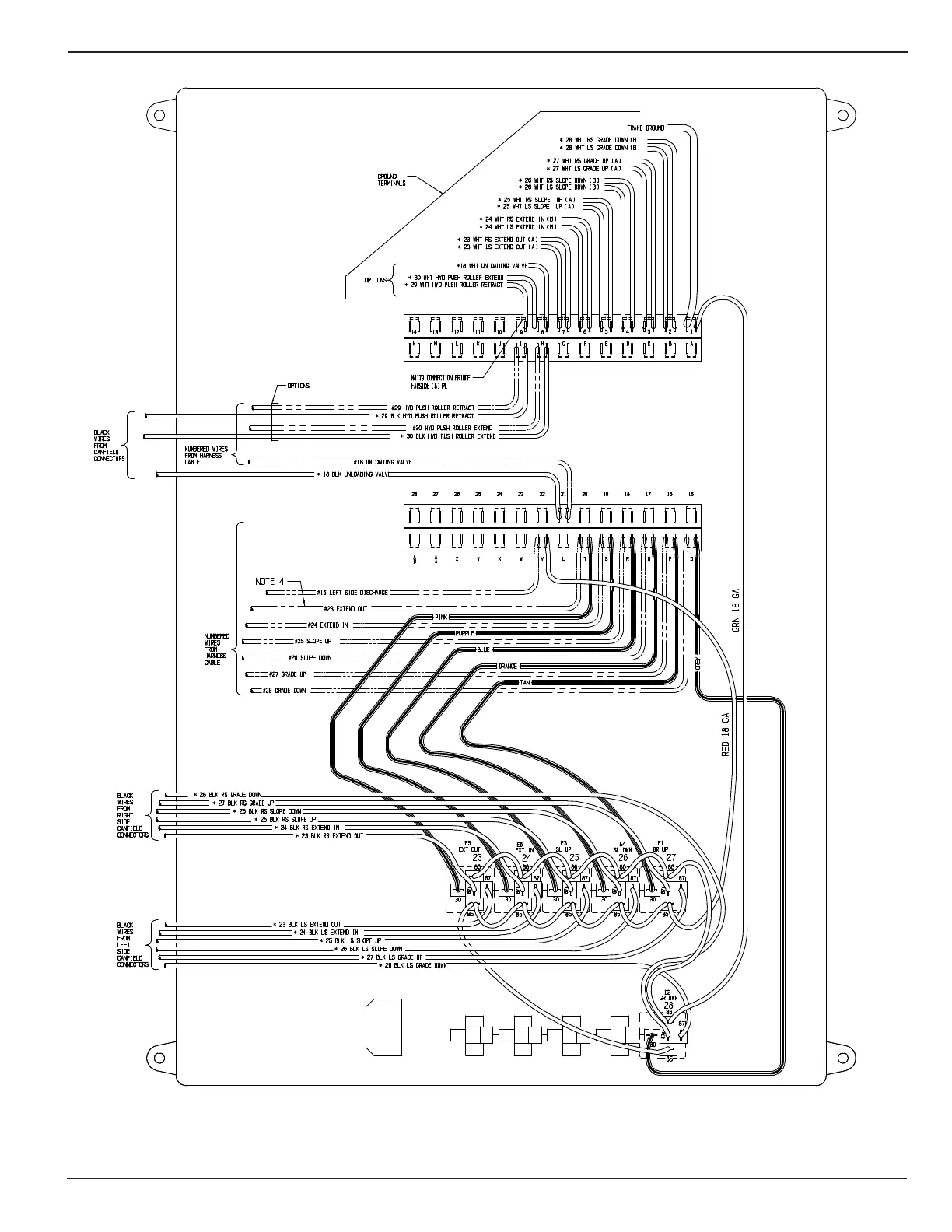

Junction Box Assembly
Layout:
Notes:
1. Wires marked with * are from the caneld connectors.
2. The green wire from the caneld connector is not used.
3. The black lead wires from the caneld connector go to the 12 volt supply, the white lead wires go to ground.
4. The wires in phantom are from the harness cable.
