Miele CM6 - Coffee Water Path

Technical Information
13
CM6
2
Flow meter (B3-4)
3
Water tank
4
Drain valve
5
Heater (R1)
6
Ceramic valve (M29)
Pos. 1 = Vacant
Pos. 2 = Ventilation, hot water
Pos. 3 = Hot water, steam, air
Pos. 4 = Steam, air open (milk froth)
Pos. 5 = Steam (hot milk)
Pos. 6 = Reference, closed
Pos. 7 = Coffee, decompression, rest
Pos. 8 = Rinse, air
7
Hot-water spout
8
Grinder (M25)
9
Brew unit
10
Coffee/milk spout
11
Milk container
12
Drip tray
2.2.2 Coffee

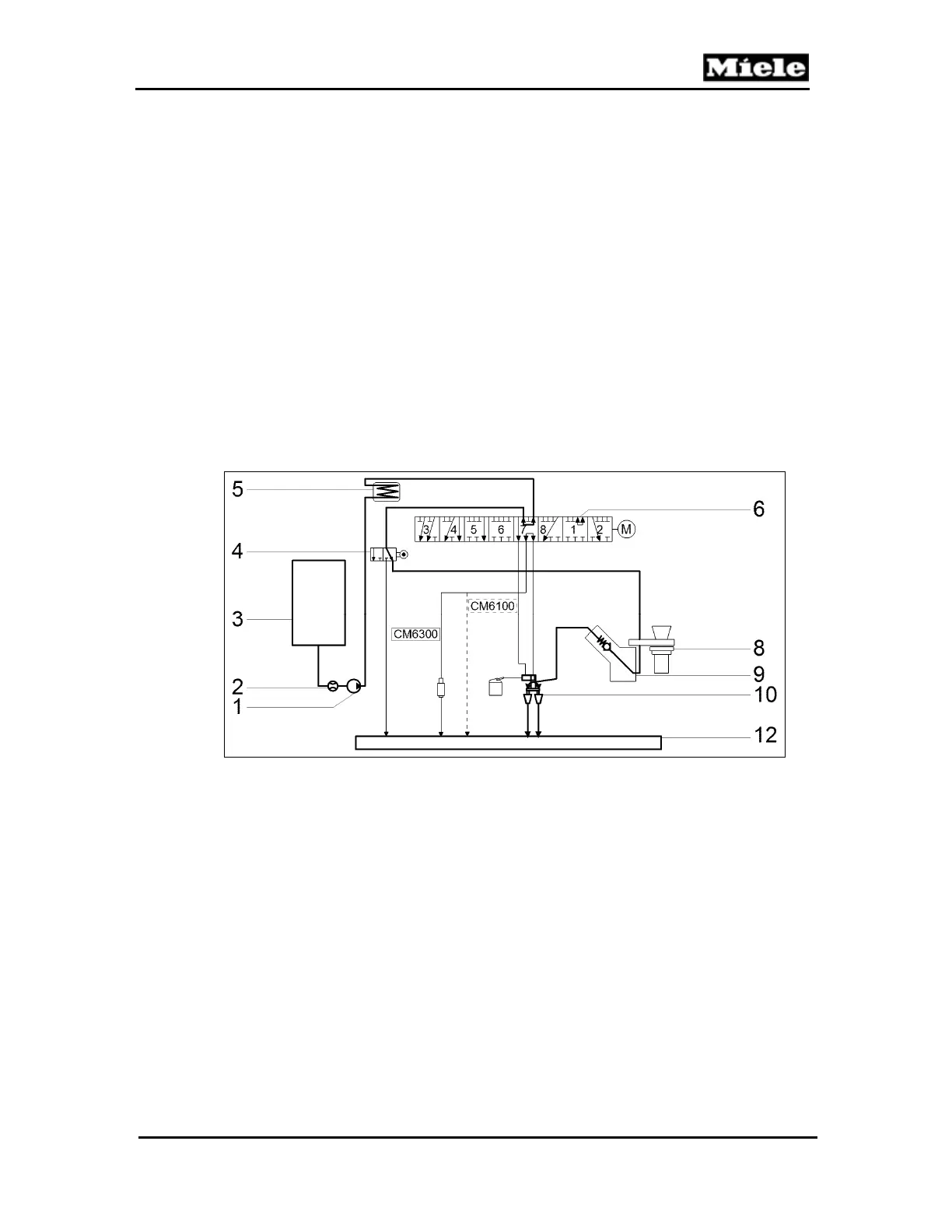

Figure 001-3: Water Path for Coffee
1
Pump (M7)
2
Flow meter (B3-4)
3
Water tank
4
Drain valve
5
Heater (R1)
6
Ceramic valve (M29) in pos. 7 = Coffee, decompression, rest
8
Grinder (M25)
9
Brew unit
10
Coffee/milk spout
12
Drip tray
