Miele CM6 - Grinder Removal

Technical Information
48
CM6
7. Pull the grinder cover forward (Figure 001-34, Items A and B).
8. Remove the door contact switch assembly from the grinder cover (Figure 001-34,
Item C).
9. Remove the door contact switch (Figure 001-34, Item 1) from its holder and
disconnect the electrical connections.

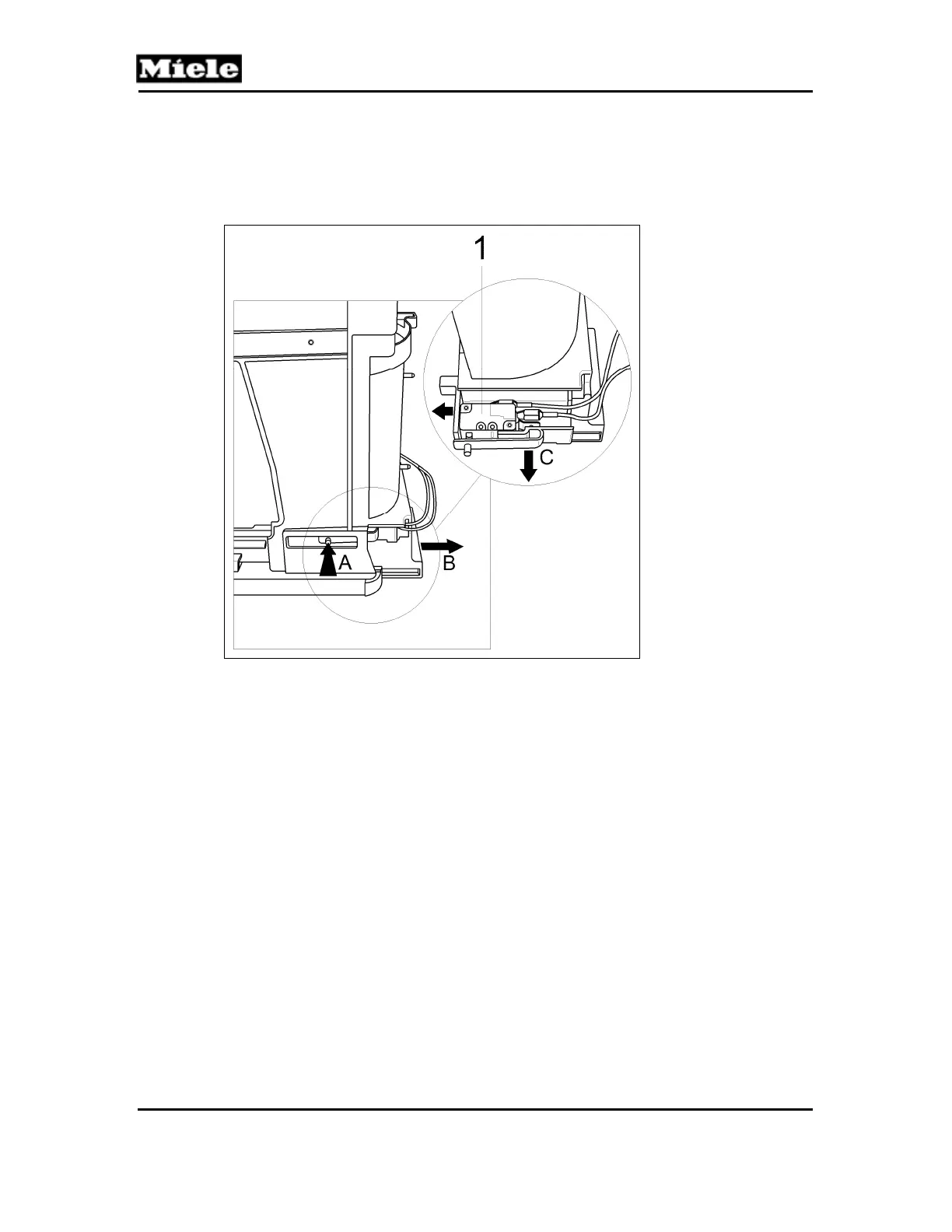

Figure 001-34: Door Contact Switch
4.11 Grinder (M25) Removal
1. Remove the top cover; see Section 001-4.5.
2. Remove the side casing; see Section 001-4.6.
3. Remove the foam insulation from around the grinder cover.
4. Remove 3 T10 screws (Figure 001-32, Items 1 and 2).
5. Move the power electronic to one side.
6. Remove the T10 screw behind the power electronic (Figure 001-33, Item 1).
7. Pull the grinder cover forward (Figure 001-34, Items A and B).
8. Remove the seal from the beans container.
9. Remove the 3 T10 screws securing the beans container (Figure 001-35, Item 1).
