Miele CM6 - Figure 001-32: Grinder Cover and Power Electronic Screws; Figure 001-33: Grinder Cover Screw

Technical Information
47
CM6

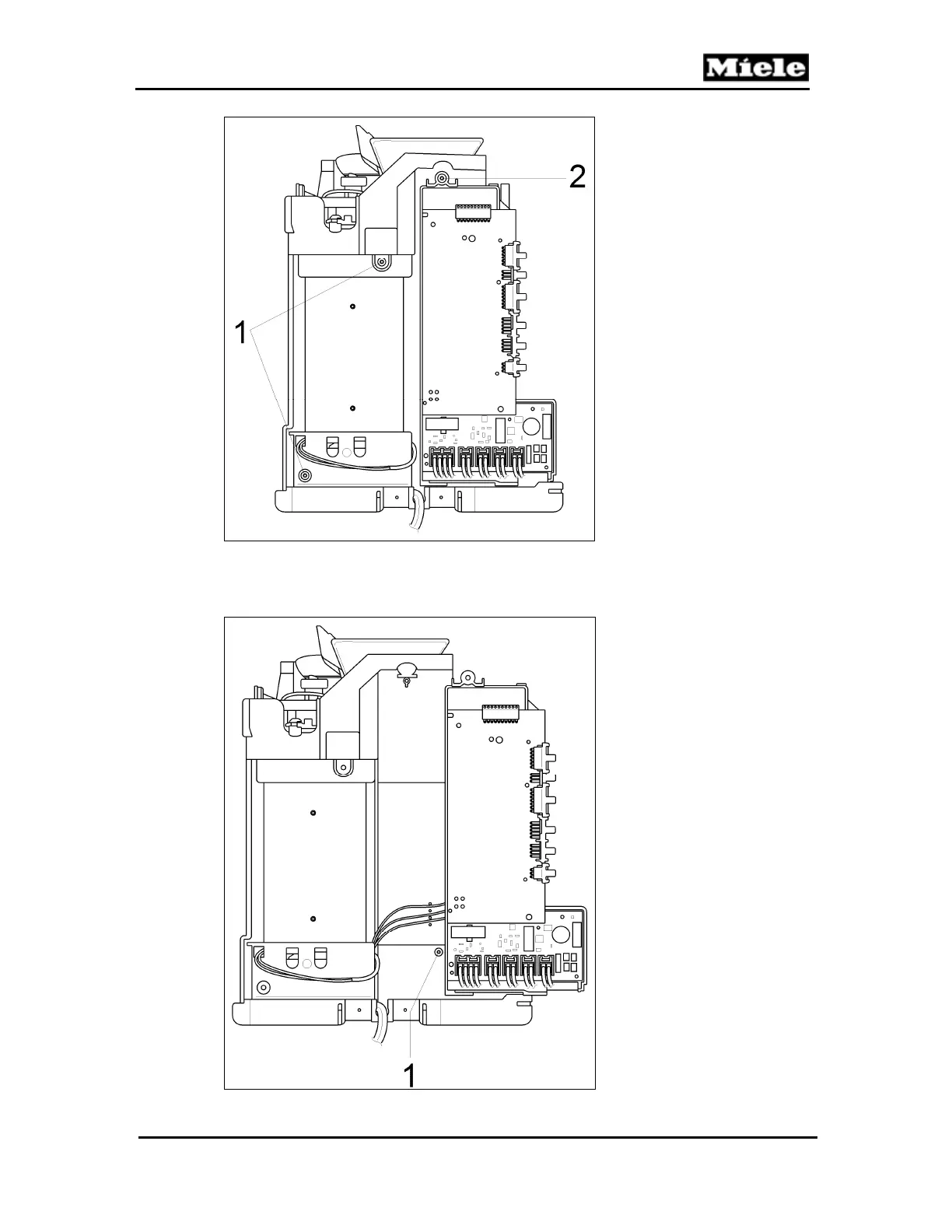

Figure 001-32: Grinder Cover and Power Electronic Screws
5. Move the power electronic to one side.
6. Remove the T10 screw behind the power electronic (Figure 001-33, Item 1).
Figure 001-33: Grinder Cover Screw
