Technical Information
17
CM6

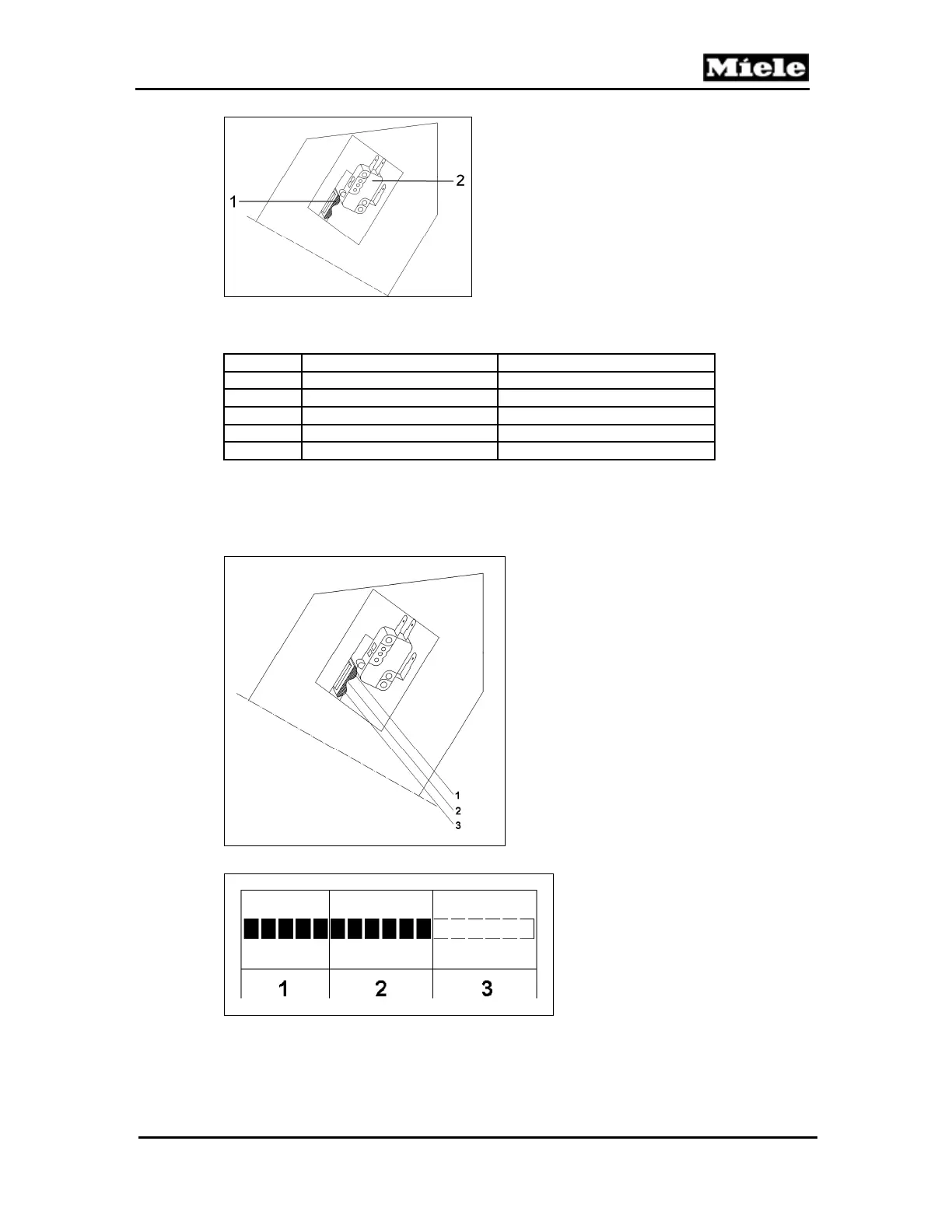

Figure 001-9: Actuator and Compensation Microswitch
Five different settings can be registered:
Position Microswitch position Switching process
1 In front of the first cam Off
2 On the first cam Off, on
3 Between the two cams Off, on, off
4 On the second cam Off, on, off, on
5 Behind the second cam Off, on, off, on, off
Table 001-1: Switch Cam Settings
Three volume areas can be measured for the grind amount; see Figure 001-
10. They represent the selectable volume areas on the machine; see Figure
001-11.
Figure 001-10: Measurable Volume Areas
Figure 001-11: Selectable Volume Areas
If the measure quantity varies from the set quantity, then the grinding time will
be increased or decreased by approximately 0.2 seconds as appropriate
during the next grinding cycle. Because the maximum ground quantity
1 Brew unit actuator
2 Grind amount compensation microswitch
1, 2, 3 Measurable volume areas 1, 2 and 3
1, 2, 3 Selectable volume areas 1, 2 and 3
