Technical Information
43
CM6

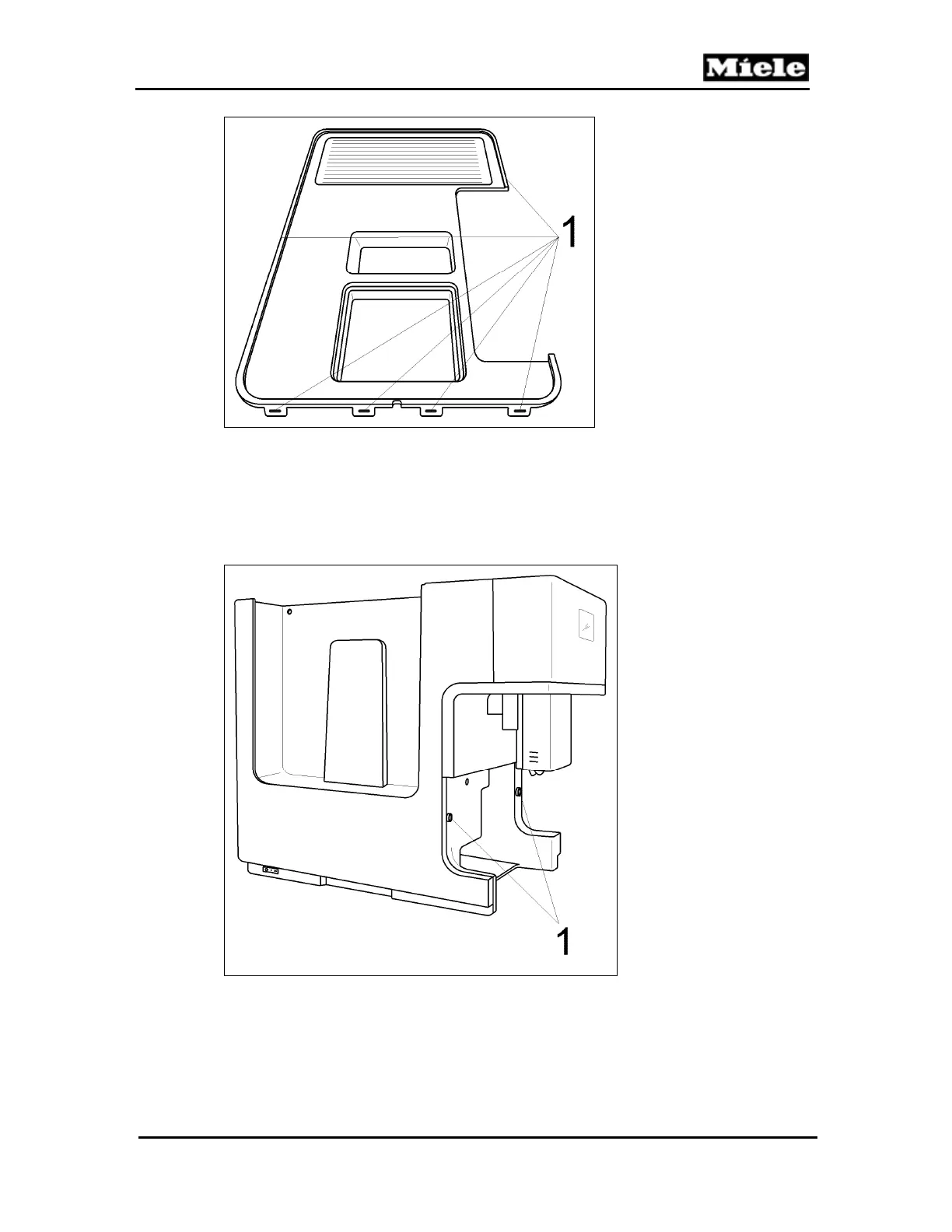

Figure 001-24: Top Cover Retainers
9. CM 63x0: Disconnect the cup-warmer plug.
4.6 Side Casing Removal
1. Remove the top cover; see Section 001-4.5.
2. Remove the 2 T10 screws securing the front of the casing (Figure 001-25, Item 1).
Figure 001-25: Front Casing Screws
3. Using an appropriate tool, release and remove the screw cover at the rear
underside of the appliance (Figure 001-26).
