Miele CM6 - Door Contact Switch Removal

Technical Information
46
CM6

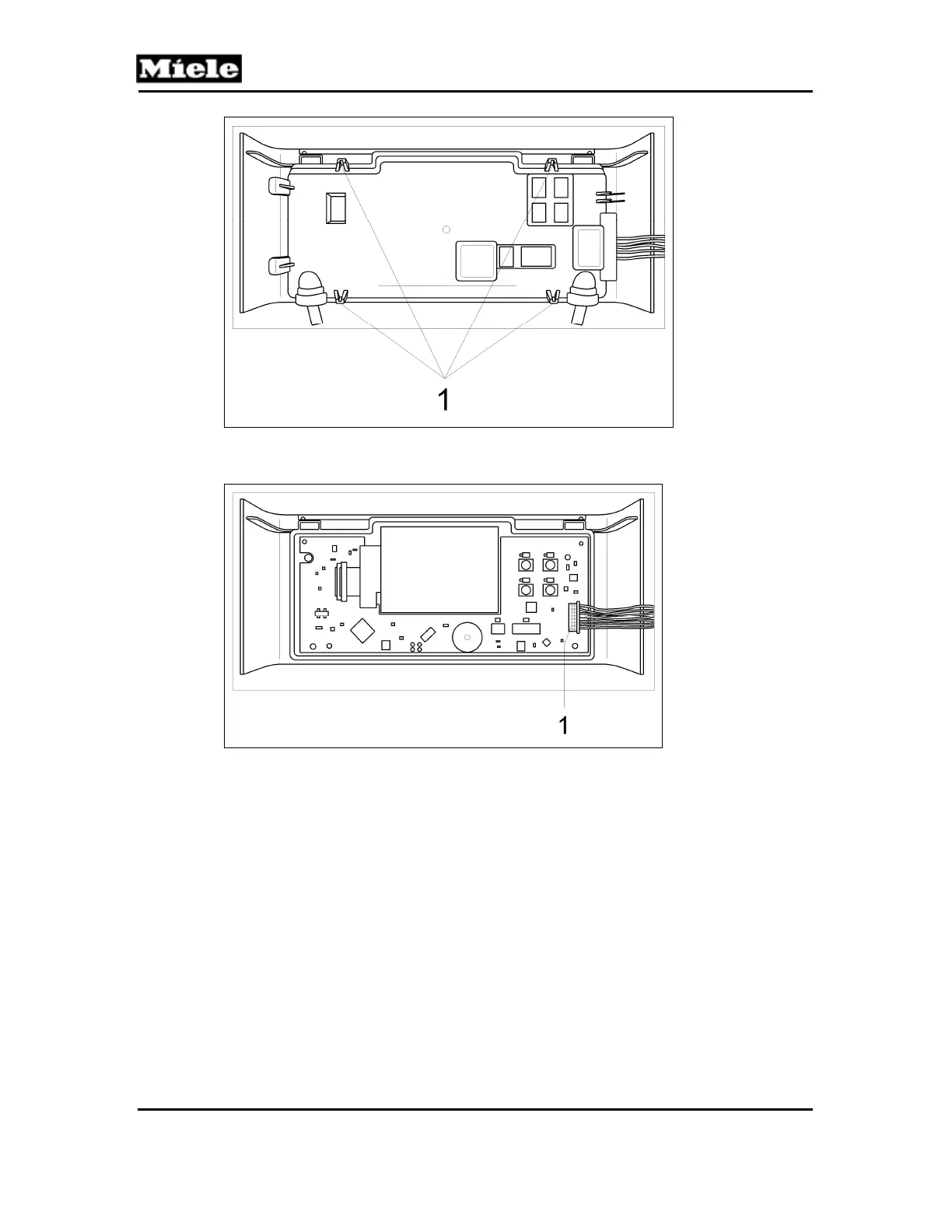

Figure 001-30: Display/Control Electronic Cover Retainers
4. Disconnect the display/control electronic wiring harness (Figure 001-31, Item 1).
Figure 001-31: Display/Control Electronic Wiring Harness
4.10 Door Contact Switch (S24) Removal
1. Remove the top cover; see Section 001-4.5.
2. Remove the side casing; see Section 001-4.6.
3. Remove the foam insulation from around the grinder cover.
4. Remove 3 T10 screws (Figure 001-32, Items 1 and 2).
