Miele CM6 - Milk Froth Water Path; Rinse Water Path

Technical Information
15
CM6

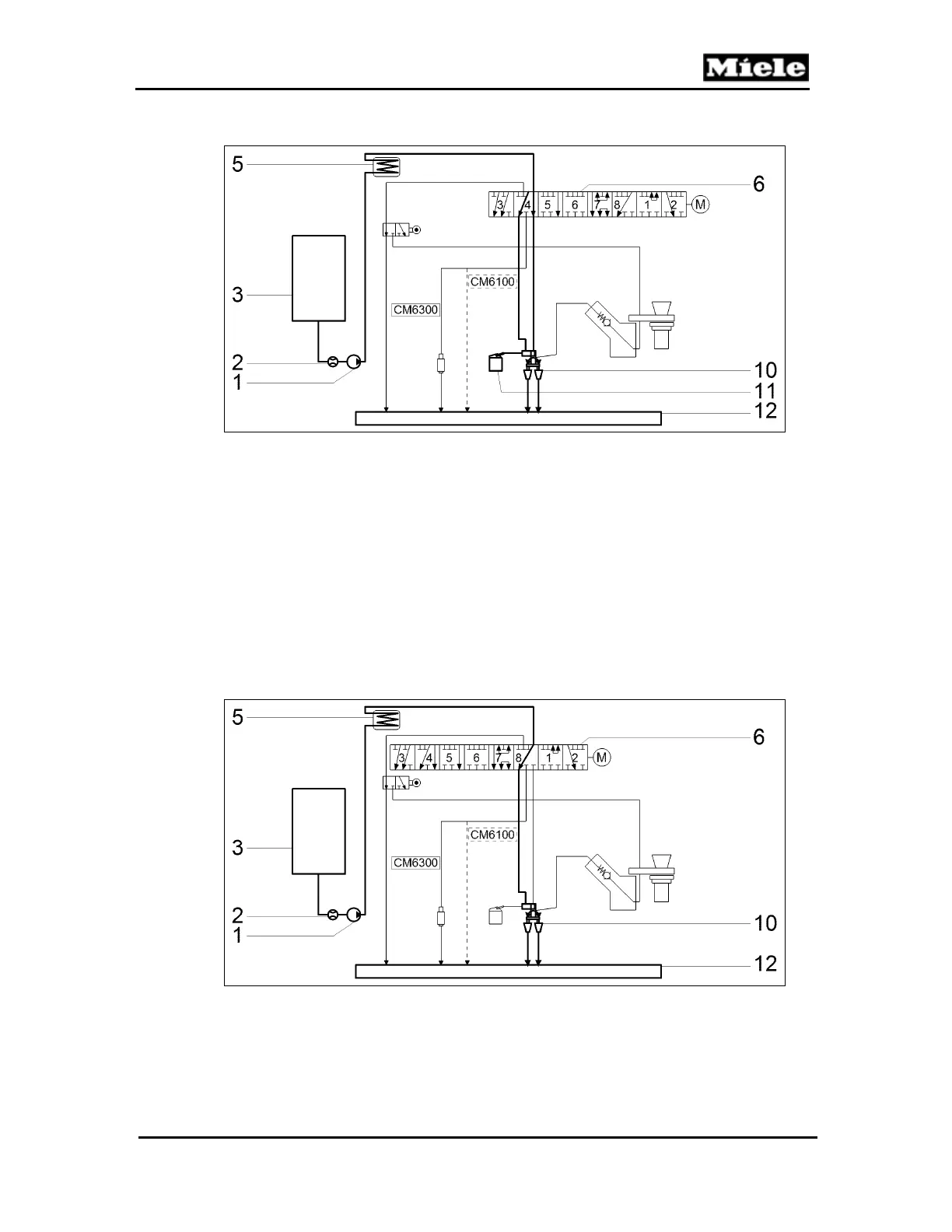

2.2.5 Milk Froth
Figure 001-6: Milk Froth
1 Pump (M7)
2 Flow meter (B3-4)
3 Water tank
5 Heater (R1)
6 Ceramic valve (M29) in pos. 4 = Steam, air open (milk froth)
10
Coffee/milk spout
11
Milk container
12 Drip tray
2.2.6 Rinse
Figure 001-7: Rinse
1
Pump (M7)
2
Flow meter (B3-4)
3
Water tank
5
Heater (R1)
6
Ceramic valve (M29) in pos. 8 = Rinse, air
